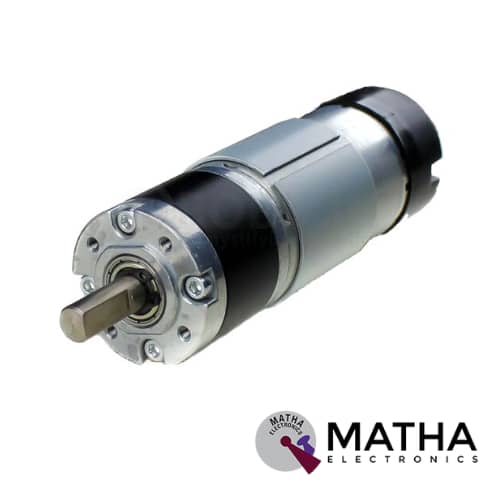

A planetary gear motor is similar to a planetary rotation system in which the input shaft drives the central gear, also known as the sun gear, which then turns the surrounding gears, also known as planet gears. Planetary gears are widely used when space and weight are an issue, but a large amount of speed reduction and torque are needed. Planetary Gear DC Motor offers the highest continuous and peak torque capability of any gearbox type. They also feature a smaller size, with a lightweight design in their Class. This motor is designed explicitly for robotics applications with an ideal balance of quality, performance, and price. This 12V Planetary Gear DC Motor with Encoder provides a gearbox of 36mm diameter. And also the motor provides a 264: 1 reduction ratio which produces 11RPM with a torque value of around 10 N-m.
The planetary geared motor is well known for its low backlash and higher efficiency characteristic to meet your higher expectation. Planetary Gear DC Motor with Encoder 12V 11 RPM 10 N-m Torque -TPG36555123000-264KE imported from an established Taiwanese motor manufacturing company well known for its quality and durability. These Epicyclic Gear Train motors very prominent amongst our Robotics designers and for general-purpose automation projects. This single-channel output encoder feedback to provide you real-time feedback of the rotating position. This is also a perfect choice for medical applications where strong, coordinated, accurate motion control is required. These planetary gears share the load attached to the output shaft giving the planetary arrangement a higher torque to volume ratio with low backlash compared to a spur gear arrangement.
- Cutting Tools
- Medical Devices
- Beverage Dispensing
- Gaming/Recreational Machines
