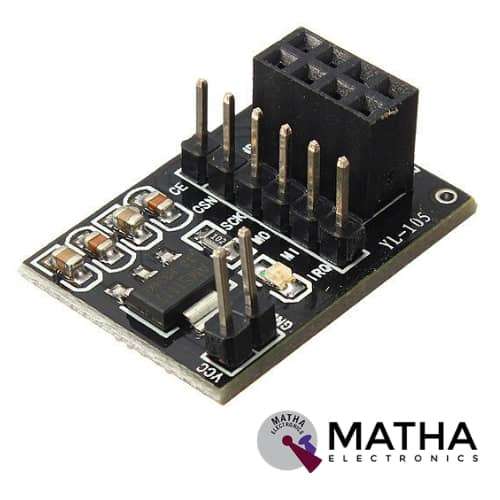

Socket Adapter Plate Board for 8 Pin Nrf24L01 Wireless Module
Original price was: ₹250.00.₹150.00Current price is: ₹150.00. inc. GST
- Used with NRF24L01 wireless module
- Add core nRF24L01+ Breakout Adapter with onboard 3.3V Regulator
- Onboard 3.3V voltage regulator accepts your Arduino +5V supply and provides 3.3V for the attached nRF24L01+ module
- Allows for easy connection to nRF24L01+ modules
- Small power on SMD LED indicator
- On-Board Voltage Regulator:
– Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
-Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V)
- Dimension: 15.3 x 11.5 x 1.2 cm
- Weight: 10 Grams
Description
This Socket Adapter Plate Board for 8 Pin Nrf24L01 Wireless Module is designed explicitly for NRF24L01 Wireless module with on-board AMS1117-3.3 chip. This socket adapter plate generally operates at a voltage of 3.3Vand enables you to use NRF24l01 type transceivers on 5V systems like Arduino.
This NRF24L01 WirelessTranceiver module is easily plugged into this small module. And it can work with low or medium power using a power amplifier. The NRF24L01works on Enhanced Shock Burst (ESB) baseband protocol. It supports two-way data packet communication with packet buffering, packet acknowledgement, and automatic re-transmission of lost packets. This module is capable of regulating the 3.3V input to 1.9~3.6V DC and incorporates bypass capacitors for reliable operation. Thereby improving the transceiver stability.
NRF24L01 WirelessTranceiver module operates generally 3.3V. While the ordinary 51 microcontrollers at 5v, it is convenient for a wireless module with 51 single system boards used in conjunction. The nRF24L01+ transceiver module communicates via an 8-pin Serial Peripheral Interface (SPI). This interface consists of a register map in which consists of configuration registers in the nRF24L01. Thus it is accessible in all operation modes of the chip.
