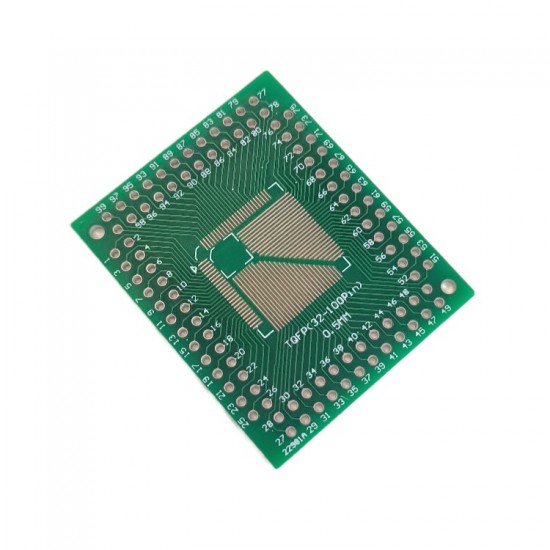

TQFP 0.5M 32 100PIN SMD TO DIP
TQFP 0.5mm pitch SMD to DIP adapter supporting 32 to 100 pins for easy prototyping and testing of fine-pitch ICs.
Description
The TQFP 0.5mm Pitch 32–100 Pin SMD to DIP Adapter is a versatile breakout board designed to convert TQFP surface-mount ICs with 0.5mm pin pitch into a DIP-style footprint suitable for breadboards, prototyping boards, and sockets. It supports a wide range of pin counts from 32 pins up to 100 pins, making it ideal for microcontrollers, DSPs, and complex ICs.
With precision-aligned pads, clear pin labeling, and high-quality PCB material, this adapter enables easy soldering and reliable connections. It is especially useful for rapid prototyping, firmware development, testing, and educational labs, allowing developers to work with fine-pitch SMD devices in Arduino, PIC, ARM, AVR, and embedded system projects without designing custom PCBs.
