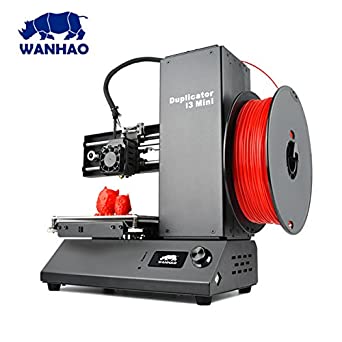

Wanhao Duplicator I3 Mini FDM 3d Printer
₹9,000.00 Original price was: ₹9,000.00.₹8,000.00Current price is: ₹8,000.00. inc. GST
- Print size ( X Y Z ):150mm x 150mm x 115mm.
- Layer Resolution : 0.1mm.
- Filament Diameter: 1.75mm.
- Filament Compatibility: PLA, ABS, PVA, Stainless Steel, NinjaFlex, Nylon, HIPS, Woodfill, LayBrick, CopperFILL, BronzeFILL, MOLDLAY, Conductive, Carbon Fiber, Polyurethane plus more!
- Chassis Steel Frame : (Powder Coated Black).
- Extruder Type : MK10 Single-Extruder.
- Print Plate (Build Platform): Non-Heated Bed Plate and Wanhao Adhesive Sheet.
- 3D printing Software: CURA (Wanhao Edition), MatterControl (Free Download Online), Simplify 3D.
- CAD Input data file format supported – Gcode.
- Extruder Temperature: 260°C (Short-term), 240°C (Long-term).
- Connectivity (Interface) : SD Card & USB.-
- Machine weight: 7kg.
- Machine Dimensions: 385 x 435 x 330mm.
Out of stock
The Wanhao Duplicator I3 Mini FDM 3d Printer designed as the most affordable and prominent desktop 3D printer featuring a larger printing area. This 3D printer is capable of providing more consistent, good-quality prints. It comes with a fully assembled kit specially designed for the home user who has no 3D experience before. This 3D printer ideal for a wide range of fields such as education, research, experimentation, learning as well as for home and commercial purposes. It provides a print area of 120* 1356*100 mm with an MK10 Single-Extruder. This helps to print large items or many small items.
This easy-to-install and high-performance printer offer many filament options beyond common plastics like PLA, ABS, PVA, Stainless Steel, NinjaFlex, Nylon, HIPS, Woodfill, LayBrick, CopperFILL, BronzeFILL, MOLDLAY, Conductive, Carbon Fiber, Polyurethane plus more. This 3d printer features a printing speed ranges from 50 to 100mm/sec. And also the printing volume of the device suitable to build models for school, learning or hobby purpose.
This printer works at both 110V and 220V inputs. But flip the switch into the right position before plugging it in. If you live in an area with a different outlet voltage, make sure to use a step-down or step-up converter in conjunction with this product. In this printer, files can be accessed via USB or SD card. Thus the user can easily detect the file and utilize it through the LCD display and rotary knob. Moreover, the interface allows to level the platform, preheat the extruder, feed the filament, and much more.
