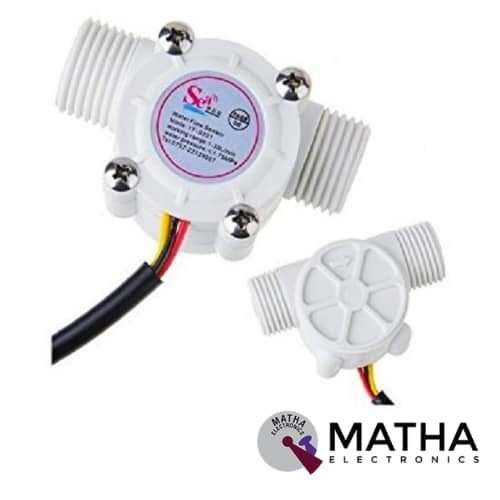

YF-S401 PVC Water Flow sensor
Original price was: ₹550.00.₹500.00Current price is: ₹500.00. inc. GST
Magnetic Door Open Sensor - N/C Type
Original price was: ₹240.00.₹225.00Current price is: ₹225.00. inc. GST

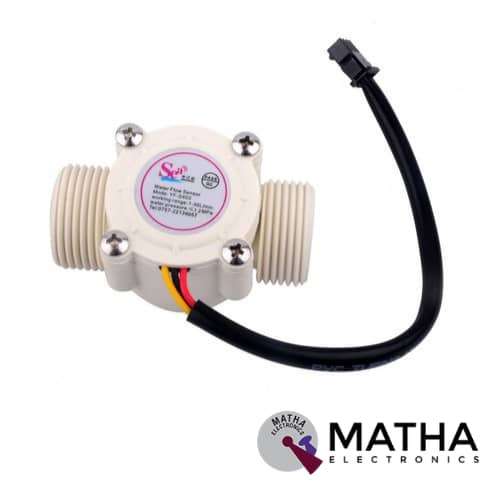

YF-S403 water flow sensor 1-30L/min Flow meter
Original price was: ₹600.00.₹550.00Current price is: ₹550.00.
- Model: YF-S403
- The lowest rated working voltage: DC 4.5 5V – 24V.
- Maximum Operating Current: 15 mA (DC 5V).
- Working voltage range: DC 5 – 18V.
- Load capacity: ≤ 10 mA (DC 5V).
- Working temperature: ≤ 80 ℃
- Working humidity range: 35%-90% RH (no frost)
- Allow Pressure: 1.75Mpa
- Storage temperature: -25 – + 80 ° c
- Save Humidity: 25% – 95% RH
- Flow range: 1-30L / min
- External thread: 3/4 “
- Output interface diameter: Ca. Outside 26mm, inside 12mm, 14mm.
- The seal ring with the upper and lower force structure never leaks.
- Non-violent shock, and chemical erosion.
- Non-throwing or hitting.
- Vertical mounting does not exceed 5 degrees inclination.
- The temperature of the medium should not exceed 120 ℃.
- Dimension: 58*35*26 mm
- Weight: 30g
Out of stock
Description
A Float sensor defines as a simple water level indicator. This water level controller is used in a pump, an indicator, an alarm, or other devices. YF-S403 3/4 Water Flow Measurement Sensor offers a 1-30Liter/min Flow Rate used with hot waters for highly accurate measurements. These are arranged in line with your water line and consists of a pinwheel sensor to measure how much liquid has moved through it.
YF-S403 works on the principle of the Hall Effect. According to this principle, a voltage difference is induced in the conductor due to the rotation of the rotor. The integrated magnetic Hall Effect sensor in the sensor outputs an electrical pulse with every revolution. The Hall Effect sensor is protected from the water pipe ensuring the sensor stays safe and dry. The water flow is calculated by counting the pulses from the output of the sensor. Each pulse is approximately 2.25 millimetres. These Flow meters offers a wide range of application for measuring water flow and is quite easy to build a water management system using the renowned water flow sensor YF-S403. Moreover, the YF-S403 water flow sensor consists of three wires and is easily interfaced easily with any microcontroller and Arduino board. It operates at a 5V Vcc supply providing pulse output.
This Water flow sensor includes a plastic valve through which water can pass. A water rotor along with a Hall Effect sensor senses and measure the water flow. As the water flows through the valve, the rotor rotates. This results in variation in the speed of the motor. This variation is calculated as output as a pulse signal by the Hall Effect sensor. Thus, the rate of flow of water is measured. Moreover, these sensors are widely used for water heaters, credit card machines, water vending machines, flow measurement devices.
Reviews (0)
Shipping & Delivery
Related products
Brass G1/4″ BSP Hall Effect Flow Sensor Water 0.35-3.0L/min OD12 WaterTurbine Flowmeter SEN-HZ41WC
- Water quality requirement: Drinking water health standards, 0-80℃.
- Flow range: 0.35 -0 Liter/min.
- Withstand hydraulic pressure: ≤1.75 MPa.
- Operating voltage: DC 4.5 - 18 Volt
- Operating current: ≤15mA.
- Insulation resistance: >100MΩ.
- Electrical strength: AC500V, 50HZ.
- Output level: Rated voltage DC5V, high level ≥4.5 Volt, low level ≤0.5 Volt.
- Pulse duty cycle: 50%.
- Flow characteristic: F=73Q, F: HZ, Q: L/min，±10%.
- Cumulative flow conversion: 1 Litre water=1780 pulse, accuracy: 8%.
DS18B20 MODULE
- Resolution: 9bits to 12bits (Selectable)
- Supply Voltage (V): 3 to 5.5
- Temperature Range(°C): -55 to +125
- Measuring Accuracy(°C): ±0.5
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into the chip
- Multiple sensors can share one pin
- Maximum conversion time and response: 750 ms
- Multidrop capability simplifies distributed temperature sensing applications
- Requires no external components
- Digital signal output
- 18B20 Temperature Sensor Chip
- Send data via a pin
- User-definable nonvolatile (NV) alarm settings
- Dimension: 19*15*6cm
- Weight: 9gm
Floating Ball Valve Automatic Float Valve Water Level Control Valve F/ Water Tank Water Tower
- Material: plastic
- Form: diaphragm type
- Connection form: thread
- Drive mode: float control
- Flow direction: one direction
- Nominal diameter:15mm
- Automatic control, less water from the fill, the water from the stop.
- Quarter of the inlet, a large amount of water.
- The appearance of fine, small size, practical, simple installation.
Water flow sensor SEN-HZG1WA Pulse Output 4~45L/min Liquid Switch Flowmeter
- Model: SEN-HZG1WA.
- Use voltage: DC 5V.
- Connect way: G1”, 60*34*34(mm).
- Working voltage range: DC 4.5 ~18V.
- Working current: 15mA.
- Test range: 4~45L/min (m³/h).
- Fit media: water.
- Working pressure: 1.75MPa.
- Outside nominal diameter: G1 (mm).
- Instantaneous flow pulse characteristics: F= [5Q-3]±10%, F means instantaneous pulse value(Hz),Q means instant flow(L/min).
- Insulation resistance = 100MO.
- Electric strength: AC 500V, 50Hz.
- Precision grade: +-10%.
- Working temperature: 60 degree C
- Type: vane-wheel type flowmeter.
YF-S201 ½” Water Flow Sensor
- Model: YF-S201
- Sensor Type: Hall effect
- Working Voltage: 5 to 18V DC
- Max current draw: 15mA @ 5V.
- Output Type: 5V TTL
- Pulses per Litre: 450
- Working Flow Rate: 1 to 30 Liters/Minute
- Accuracy: ±10%
- Maximum water pressure: 2.0 MPa
- Working Temperature range: -25 to +80℃
- Working Humidity Range: 35%-80% RH
- Output duty cycle: 50% +-10%
- Output rise time: 0.04us
- Output fall time: 0.18us
- Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
- Durability: minimum 300,000 cycles
- 1/2″ nominal pipe connections, 0.78″ outer diameter, 1/2″ of thread.
- The simple and compact module.
- Easy to Install.
- High Sealing Performance.
- High-Quality Hall Effect Sensor.
YF-S402 High Precision Flow Meter Water Flow Sensor
- Model: YF-S402
- Minimum rated working voltage: DC 5~24V;
- working current: 15mA (DC 5V);
- Working voltage range: DC 5~18V;
- Load capability: <= 10mA (DC 5V);
- Working temperature: <= 80'C;
- Humidity range: 35%~90%RH (no frost);
- Water pressure: <1.75Mpa;
- Storage temperature: -25~80'C; Storage humidity: 25~95%RH;
- Flow range: 1~5L/min'; Frequency: 4380 pulse for 1L through the sensor
- Dimensions: 2.28 in x 1.38 in x 1.06 in (5.8 cm x 3.5 cm x 2.7 cm)
- Thread Size : G1/4"
