145mm Trapezoidal Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut
- Rod Size: 8X145mm
- Lead (the straight distance which turn a circle): 8mm
- Nut Diameter: 8 mm.
- Color: silver and gold
- Material: Stainless steel and brass
- Mainly use for Stepping motor driving guide rail.
- T shape design, made of high-quality stainless steel material.
- Easy to install and convenient to use.
- Fine producing and practical.
1610 DIY Mini 3-Axis CNC Router Engraver Laser
- Control software: GRBL control.
- Construction: Aluminium + plastic.
- Working area: 160*100*40mm.
- Frame size: 260*240*220mm.
- Stepper motor: 12V, 1.3A, 2.1Ω, 0.25N.m
- Spindle: 12-36V 7000r / min
- Wire rod: T8.
- Power Supply: 24V 5.6A (110V -240V).
- Support System: Windows XP / Win 7 / Win 8 / Linux.
- Standard: The complete set of the parts and tools.
- Engraving materials: Plastic, wood, acrylic, PVC, PCB and other soft materials.
- Laser tube: 500mw.
- Weight: 5.5KG.
24V 40W Ceramic Cartridge Heater Wire For 3D Printer
- Voltage: 24V, Power: 40W
- Material: 304 Stainless Steel
- Wire Length :1M
- Diameter: 6mm
- Length: 20 mm
- Works on many 3D printers, including RepRap and Prusa models.
- It fits nicely in our extruder, so it’s an easy replacement.
- Small but powerful.
- Get your hotend hot quickly.
- This unit is a more powerful unit than the standard unit for many 3D printers.
3 Axis 2418 Mini DIY CNC Machine (Unassembled)
- Color: Silver
- Material: Aluminum Alloy
- Frame Size: Approx. 330 x 340 x 240mm
- Working Area: Approx. 240 x 180 x 40mm
- Control Software: GRBL control
- Spindle: 775 spindle motor(12-36V), 24V: 7000r/min, 36V: 9000r/min
- Step Motor: 1.3A 0.25N.m
- Power Supply: 24V 5.6A
- Supported System: Windows XP/ Win 7/ Win 8/ Win 10/ Linux
- Drill Bits Diameter: 3.175mm
- Drill Bits Length: 30mm
- Drill bits tip: 0.1mm
- Engraving materials: Plastic, wood, acrylic, PVC, PCB, and other soft materials.
- Laser tube: 500mw.
- Weight: 5.5KG
3D E3D V6 All Metal J-Head Hotend Extruder 1.75mm Filament 0.4mm Nozzle with Fan Duct
- Nozzle: 0.4mm
- Filament: 1.75MM
- Thermistor:100K NTC B 3950 ±1 %, 1m long wiring
- Heater: Ceramic heater 12V 40Watt. 1M long wiring
- High-Temperature Performance
- Easy No-solder, No-tape, No-adhesive Assembly And Maintenance
- Print The Widest Range Of Materials Possible
- High-Quality Printing
- Adaptable To Suit Your Needs
- Easy Mounting And Community Support
3D printer 128×64 Smart LCD controller for ramps 1.4
- RAMPS 1.4 LCD 12864 intelligent controller.
- With an SD card base on back.
- Large screen display 128×64 LCD (3.2″)
- SD card slot at the back, able to directly select a file and print
- The product comes encoder parameter adjustment can be achieved, and the file selection print
- Plug & play on the RAMPS, but need to modify the firmware to support.
- LCD 12864 Smart Controller fully supported by Marlin Firmware.
- Large screen display 128×64 LCD (3.2″)
- SD card slot at the back, able to directly select a file and print
- The product comes encoder parameter adjustment can be achieved, and the file selection print
- Plug & play on the RAMPS, but need to modify the firmware to support.
- LCD 12864 Smart Controller fully supported by Marlin Firmware.
8mm Bore Inner Ball Mounted Pillow Block

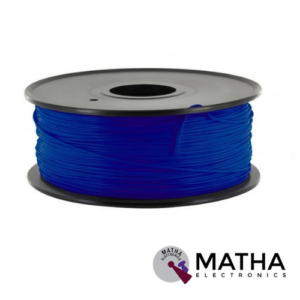

ABS 1.75 mm 1 kg Filament for 3d printer, Dark Blue Wanhao
- Material: ABS
- Color: Dark Blue Color ABS.
- Material Diameter: 1.75mm
- Printing Temperature: 220° to 230°C
- Mounted: Spool Mounted
- Net weight: 1kg
- Diameter Accuracy: 1.75mm
- Roundness Accuracy: +/- 0.5mm +/- 0.5mm
- Density: 1.31g/cm3 1.01g/cm3
- Melt Point: 210°C 220°C
- Outer Diameter: 200 mm
- Hub Diameter: 32 mm
- Packaging Vacuum-sealed with desiccant to protect filament from humidity
- Extrusion Speed Tested up to 200mm/s
- Compatible with any FDM 3D Printer.
- ABS is stronger than PLA
- Easy to post-process.
- Environment friendly – ISO 9001 and ROHS certified
Black PLA 1.75 mm 1 Kg Filament For 3D Printer Wanhao
- Material: PLA
- Diameter: 1.75 mm
- Printing temperature: 190-225 ° C
- Heating bed temperature: 45 ° C - 60 ° C
- Density: 1.25 g / cm³-21.5 ° C
- Melt Flow Index: 5 (10min, 2.16kg)
- Shock resistance: 5 KJ / m²
- Dimensional accuracy: 1.70 ± 0.1 mm
- Filament weight: 1 kg
- Spool size: approx. 200 mm diameter, 50 mm spool mount, 65 mm height
- Diameter tolerances of ± 0.1mm checked with laser monitor
- Smooth surface with even roundness
- Lower melting temperature
- Good flow properties
- Little odor development
- Less danger of clogging the nozzle, compared to ABS
- Compatible with almost all 1.75mm FDM printers
- No heating bed necessary
- High quality means less waste
- Easy to use
- No heating bed necessary
CNC 1610 3 Axis Mini DIY Router Wood Engraving Cutting Milling Engraver (Unassembled)
- Control software: GRBL control.
- Construction: Aluminum + plastic.
- Working area: 160*100*40mm.
- Frame size: 260*240*220mm.
- Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min.
- Step motor: 1.3A 0.25N.m.
- Wire rod: T8.
- Power Supply: 24V 5.6A (110V -240V).
- Support System: Windows XP / Win 7 / Win 8 / Linux.
- Standard: The complete set of the parts and tools.
- Engraving materials: Plastic, wood, acrylic, PVC, PCB, and other soft materials.
- Laser tube: 500mw.
- Weight: 5.5KG.
CNC 3018
- Profile Dimensions: 400x330x240mm (without motor protruding part)
- Stroke (engraving range): 300x180x45mm
- Screw: Professional T8 screw, lead 4mm, double copper nuts eliminates the difference
- Step stepping motor: NEMA17 4.2kgcm stepping motor.
- Reliable quality
- Voltage: 12V
- Phase current: 1.3A
- Phase resistance: 2.1 ohms
- Torque: 0.3Nm
- Spindle: 775 Spindle motor (12-36V) 24V: 10000 rpm
- stepper motor driver: A4988
- Spindle unit chip: MOSFET
- Gray Part Material: Plastic
- Control software: GRBL Control
- Design software: CAM software
- System requirements: windows XP SP3, win7, win8, win10.
- Interface: USB
- Application: Milling & Laser engraving
- Support G code file : txt, tap, nc, ncc, cnc.
CNC Shield V4 for Engraving Machine 3D Printers Controller Board
- Worked with Arduino nano.
- 3 axis stepper motor driver
- Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine.
- 2A can be controlled within the two-phase four-wire stepper motor.
- Released the digital IO interface, easy to connect to other modules, such as ENDSTOP.
- Released the I2C interface, you can connect to the LCD I2C or another I2C module.
- Power DC5V interface, 7.5-12V voltage input.
- GRBL compatible
