Developing Boards
3.3nf 2000V DC Box Capacitor
- Capacitance: 3.3nf
- Voltage Rating: 2000V
- Dielectric Type: Double Metallized PP
- Capacitance Tolerance: ± 10%
- Capacitor Case Style: Radial Box
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard
- High Accuracy, Long-Life Polyester Film Capacitor
- Low Leakage
- Easy Mounting
HS-49 TOP220 Package Heat Sink
9.1nf 2000V DC Box Capacitor
Vibration Motor
32A Fuse Holder(Small)
2K2pf 2KV High Voltage Disc Capacitor (10 pcs)
85T03GP N-Channel Power Mosfet Transistor 30V – 75A / SMD – TO-263

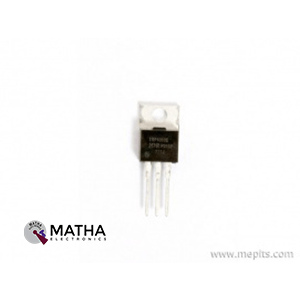

IRF1010E N-Channel Power Mosfet Transistor 60V 81A
- Type Designator: IRF1010E
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
- Maximum Power Dissipation (Pd): 170 W
- Maximum Drain-Source Voltage |Vds|: 60 V
- Maximum Gate-Source Voltage |Vgs|: 10 V
- Maximum Drain Current |Id|: 81 A
- Junction Temperature (Tj): 150 °C
- Total Gate Charge (Qg): 130 nC
- Maximum Drain-Source On-State Resistance (Rds): 0.012 Ohm
- Power Dissipation: 170W
- Package: TO-220AB
3″ Magnet Sheilded Woofer
12nf 2000V DC Polyester Capacitor
- Capacitance: 12nf
- Voltage Rating DC: 2000 V
- Tolerance: +/-5%
- Mounting: THT
- Leakage Current: 3 uA
- Dimensions:31*6*2.5 mm
- Operating Temperature: -40~85 C
- Lead Spacing: 7mm
- Lead Diameter : 0.5mm
- Non-inductive, epoxy DIP coated, high moisture resistance.
- The dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like an s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance
HC-06 4Pin Bluetooth Module Without Reset Switch
- Working current: matching for 30 mA, matching the communication for 8 mA.
- Dormancy current: no dormancy.
- Used for a GPS navigation system, water, and electricity gas meter reading system.
- With the computer and Bluetooth adapter, PDA, seamless connection equipment.
- Bluetooth module HC-08 Master and slave Two in one module.
- Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
- Potter default rate of 9600, the user can be set up.
- Bluetooth protocol: Bluetooth Specification v2.0+EDR
- Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
- Security: Authentication and encryption.
- Profiles: Bluetooth serial port.
