PIC16F877A Microcontroller IC
- Maximum CPU Frequency: 20 MHz
- Architecture: 8 bit
- Program Memory (Flash): 14 kB
- RAM: 368 byte
- Internal Oscillator: No
- ADC: 1 (8 channels)
- of Pins: 40
- Voltage: 2V - 5.5V
- 100,000 erase/write cycle Enhanced Flash program memory typical
- 1,000,000 erase/write cycle Data EEPROM memory typical
- Data EEPROM Retention > 40 years
- Self-reprogrammable under software control
- In-Circuit Serial Programmingâ„¢ (ICSPâ„¢) via two pins
- Single-supply 5V In-Circuit Serial Programming
- Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving Sleep mode
- Selectable oscillator options
- In-Circuit Debug (ICD) via two pins
- Low-power, high-speed Flash/EEPROM technology
- Fully static design
- Wide operating voltage range (2.0V to 5.5V)
- Commercial and Industrial temperature ranges
- Low-power consumption
PIC16F876A Microcontroller IC
- Maximum CPU Frequency: 20 MHz
- Architecture: 8 bit
- Program Memory (Flash): 14 kB
- RAM: 368 byte
- Internal Oscillator: No
- ADC: 1 (5 channels)
- of Pins: 28
- Voltage: 2V - 5.5V
- 100,000 erase/write cycle Enhanced Flash program memory typical
- 1,000,000 erase/write cycle Data EEPROM memory typical
- Data EEPROM Retention > 40 years
- Self-reprogrammable under software control
- In-Circuit Serial Programmingâ„¢ (ICSPâ„¢) via two pins
- Single-supply 5V In-Circuit Serial Programming
- Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving Sleep mode
- Selectable oscillator options
- In-Circuit Debug (ICD) via two pins
- ​CMOS TECHNOLOGY:
- Low-power, high-speed Flash/EEPROM technology
- Fully static design
- Wide operating voltage range (2.0V to 5.5V)
- Commercial and Industrial temperature ranges
- Low-power consumption
PIC16F72 Microcontroller IC
- Maximum CPU Frequency: 20 MHz
- Architecture: 8 bit
- Program Memory (Flash): 3.5 kB
- RAM: 128 byte
- Internal Oscillator: No
- ADC: 1 (5 channels)
- of Pins: 28
- Voltage: 2V - 5.5V
- 1,000 erase/write cycle FLASH program memory typical
- Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
- Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving SLEEP mode
- Selectable oscillator options
- In-Circuit Serial Programmingâ„¢ (ICSPâ„¢) via 2 pins
- Processor read access to program memory
- Low power, high speed CMOS FLASH technology
- Fully static design
- Wide operating voltage range: 2.0V to 5.5V
- Industrial temperature range
- Low power consumption:
- < 0.6 mA typical @ 3V, 4 MHz
- 20 μA typical @ 3V, 32 kHz
- < 1 μA typical standby current
PIC16F676 Microcontroller IC
- 128 bytes of EEPROM Data Memory
- Programmable pull-up resistors
- Individually select able analog channels
- ICD2 programming support or debugging support with optional header adapter
- 8 oscillator sellections including precision 4 MHz RC oscillator with programmable calibration and Power-on Reset
- Program Memory Type:Flash
- Program Memory (KB):1.75
- CPU Speed (MIPS):5
- RAM Bytes:64
- Data EEPROM (bytes):128
- Digital Communication Peripherals:1-UART,
- Timers:1 x 8-bit, 1 x 16-bit
- ADC:8 ch, 10-bit
- Comparators:1
- Temperature Range (C):-40 to 125
- Operating Voltage Range (V):2 to 5.5
- Pin Count:14
- Cap Touch Channels:8
PIC16F628A Microcontroller IC
- Maximum CPU Frequency: 20 MHz
- Architecture: 8 bit
- Program Memory (Flash): 3.5 kb
- RAM: 224 byte
- Internal Oscillator: 4 MHz
- ADC: No
- of Pins: 18
- Voltage: 2V - 5.5V
- Internal and external oscillator options:
- Power-saving Sleep mode
- Programmable weak pull-ups on PORTB
- Multiplexed Master Clear/Input-pin
- Watchdog Timer with independent oscillator for reliable operation
- Low-voltage programming
- In-Circuit Serial Programmingâ„¢ (via two pins)
- Programmable code protection
- Brown-out Reset
- Power-on Reset
- Power-up Timer and Oscillator Start-up Timer
- Wide operating voltage range (2.0-5.5V)
- Industrial and extended temperature range
- High-Endurance Flash/EEPROM cell:
- Standby Current: - 100 nA @ 2.0V, typical
- Operating Current: - 12 μA @ 32 kHz, 2.0V, typical - 120 μA @ 1 MHz, 2.0V, typical
- Watchdog Timer Current: - 1 μA @ 2.0V, typical
- Timer1 Oscillator Current: - 1.2 μA @ 32 kHz, 2.0V, typical
- Dual-speed Internal Oscillator: - Run-time selectable between 4 MHz and 48 kHz - 4 μs wake-up from Sleep, 3.0V, typical
UTC1240A Electronic Dual-Tone Ringer

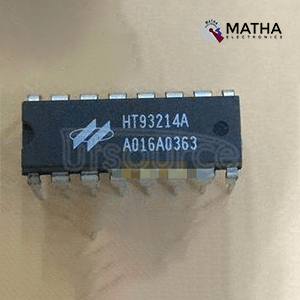

HT93214A Memory Tone/Pulse Dialer
IL91214A Pulse Dialer with Flash Function
ILA1062A
- Line Voltage : 3.55 to 4.25V
- Internal Supply Current : 1.35mA
- Low d.c. line voltage; operates down to 1.6V (excluding polarity guard).
- Voltage regulator with adjustment static resistance.
- Provides supply with limited current for external circuitry.
- Symmetrical high-impedance inputs (64k Ω) for dynamic, magnetic or piezoelectric microphones.
- Asymmetrical high-impedance inputs (32k Ω) for electret microphones
AP8022-AC-DC OFF LINE SMPS PRIMARY SWITCHER IC
- 85v to 265v wide range AC voltage input
- A 700v MOSFET on the same silicon chip
- Auto start up with high voltage current source
- PWM with current mode control
- 9v to 38v wide range VCC voltage
- Fixed 60KHz switching frequency
- Automatic skip cycle mode in low load condition.
- Over temperature, over current and over voltage protection
- Auxiliary under voltage lockout with hysteresis
- Available in SOP8 and DIP8 Package
VIPER50 SMPS Primary IC
VIPER22A Low Power Offline SMPS Primary Switcher IC
- Drain Source voltage: 730V
- Off State Drain Current: 0.1mA
- Static drain-source ON state resistance: 15Ω
- of Outputs: 1
- Power dissipation: 12W
- Package: DIP-8
- Low power offline switched-mode power supply primary switcher
- Fixed 60 kHz switching frequency
- High voltage start-up current source
- Over temperature, over current and over voltage protection with auto-restart
