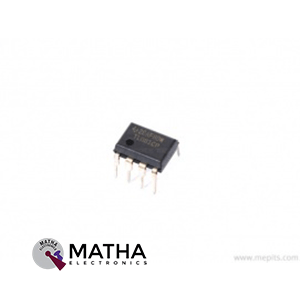

TL081 JFET-Input Operational Amplifier IC

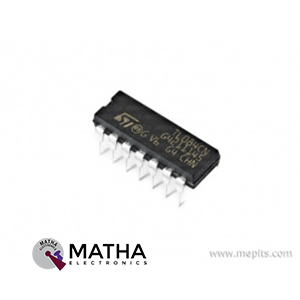

TL084 General Purpose JFET Quad Operational Amplifier IC
- Supply Voltage Max: ±18V
- Input Voltage: ±15V
- Differential Input Voltage: ±30V
- Power Dissipation: 680mW
- Input Offset Voltage: 3mV
- Input Offset Current: 5pA
- Input Bias Current: 30pA
- Slew Rate: 16V/µs
- Package: DIP-14
- General purpose JFET quad operational amplifier
- Wide common-mode and differential voltage range
- Low input bias and offset current
- Output short-circuit protection
- Internal frequency compensation
TL494 Pulse Width Modulation Controller IC
- Supply Voltage: 7 to 40V
- Collector Output Voltage: 40V
- Collector Output Current: 200mA
- Oscillator frequency Max: 300KHz
- Output Regulation: 1mV
- Input Offset Voltage: 2mV
- Input Offset Current: 25nA
- Input Bias Current: 0.2µA
- Pulse Width Modulation Controller
- Uncommitted Outputs for 200mA Sink or Source Current
- Output Control Selects Single-Ended or Push-Pull Operation
- Internal Circuitry Prohibits Double Pulse at Either Output

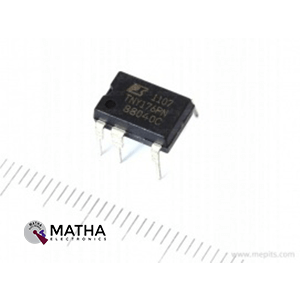

TNY176PN Off-line Switcher IC
- Drain Voltage: -0.3 to 650V
- Drain Peak Current: 720mA
- ENABLE Voltage: -0.3 to 9V
- ENABLE Current: 100mA
- ON State Resistance (max): 16Ω
- Energy Efficient, Offline Switcher with Enhanced Flexibility and Extended Power Range
- 650 V rating optimized for non-active PFC applications
- Simple ON/OFF control, no loop compensation needed
- Pin-out simplifies heat sinking to the PCB
- SOURCE pins are electrically quiet for low EMI
- Package: DIP-8C
TNY177PN Off-line Switcher IC
- Drain Voltage: -0.3 to 650V
- Drain Peak Current: 880mA
- ENABLE Voltage: -0.3 to 9V
- ENABLE Current: 100mA
- ON State Resistance (max): 9Ω
- Package: DIP-8C
- Energy Efficient, Offline Switcher with Enhanced Flexibility and Extended Power Range
- 650 V rating optimized for non-active PFC applications
- Simple ON/OFF control, no loop compensation needed
- Pin-out simplifies heat sinking to the PCB
- SOURCE pins are electrically quiet for low EMI
TNY254PN Off-line Switcher IC
TNY256PN Off-line Switcher IC
TNY264PN Off-line Switcher IC
- Drain Voltage: -0.3 to 700V
- Drain Peak Current: 400mA
- ENABLE Voltage: -0.3 to 9V
- ENABLE Current: 100mA
- ON State Resistance (max): 32Ω
- Package: DIP-8B
- Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
- Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
- Lowest component count switcher solution

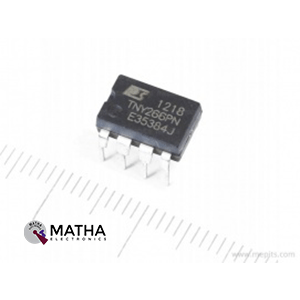

TNY266PN Off-line Switcher IC
- Drain Voltage: -0.3 to 700V
- Drain Peak Current: 560mA
- ENABLE Voltage: -0.3 to 9V
- ENABLE Current: 100mA
- ON State Resistance (max): 16Ω
- Package: DIP-8B
- Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
- Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
- Lowest component count switcher solution
TNY267PN Off-line Switcher IC
- Drain Voltage: -0.3 to 700V
- Drain Peak Current: 720mA
- ENABLE Voltage: -0.3 to 9V
- ENABLE Current: 100mA
- ON State Resistance (max): 9Ω
- Package: DIP-8B
- Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
- Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
- Lowest component count switcher solution
TNY268PN Off-line Switcher IC
- Drain Voltage: -0.3 to 700V
- Drain Peak Current: 880mA
- ENABLE Voltage: -0.3 to 9V
- ENABLE Current: 100mA
- ON State Resistance (max): 6Ω
- Package: DIP-8B
- Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
- Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
- Lowest component count switcher solution
