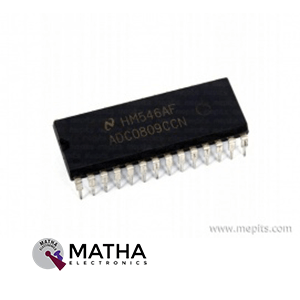

ADC0809 8-Bit µP Compatible ADC with 8-Channel Multiplexer IC
- 8-Bit µP Compatible A/D Converter with 8-Channel Multiplexer
- Resolution:Â 8 bit
- Supply Current: 300µA
- No. of Pins:Â 28
- Input Channel Type:Â Single Ended
- Data Interface:Â Parallel
- Conversion Time: 100µs
- No. of Bits:Â 8 bit
- No. of Channels:Â 8
- Maximum Power Dissipation:Â 15mW
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range:Â 4.5V to 6V
ADS1115

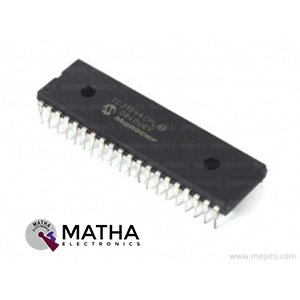

DPM7109 12-Bit µP Compatible ADC IC
- 12-Bit µp - Compatible Analog-To-Digital Converter
- Supply Current Max.: 1500µA
- High Level Output Voltage Min.: 3.5V
- Low level Output Voltage Max.: 0.4V
- High Level Input Voltage Min.: 2.5V
- Low level Input Voltage Max.: 1V
- Analog Input Voltage: +6.2 to -9V
- Power Dissipation: 1.23W
- Input Common-Mode Rejection Ratio: 50µV/V
- Low Noise: 15µVpp
- Package: DIP-40
HX711–24 Bit Analog to Digital Converter (ADC)
- It is an ADC converter with two differential input channels
- An active-low noise PGA is integrated inside the chip which provides the gain of 32, 64 and 128
- It has a power-on-reset capability which simplifies digital interface initialization.
- All controls to the IC are made through the pins. Programming is not needed.
- You can select a data rate of 10SPS or 80SPS at the output.
- Provides simultaneous supply rejection of 50Hz and 60Hz supply.
- Built-in analog power supply regulator
- The voltage supply range is from 2.6V to 5.5V
- The temperature range is from -40 °C to +85℃
PCF8591 ADC-DAC
- Operating voltage range: 2.5V-6V
- Low standby current
- I2C bus serial input/output
- PCF8591 by 3 hardware address pins addressing
- PCF8591 I2C bus speed sampling rate decided 4 analogue inputs programmable single-ended or differential input
- Automatic incremental channel selection
- PCF8591 analogue voltage range from VSS to VDD
- Â On-chip track-and-hold circuit
- Â 8-bit successive approximation A / D converter
- Â 1 analogue output DAC gain
- Single power supply
- Module power supply indicator lights
- DA output indicator
- Dimension: 3.6*2.3cm
