5V PCM2704 Sound Card Decoding Module DAC Decoder Board For PC Computer USB Powered
74LS154 4 Line to 16 Line Decoder Demultiplexer IC
- 4 Line to 16 Line Decoder/Demultiplexer
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -0.4mA
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- Propagation delay time max:Â 35ns
- Typical power dissipation:Â 45mW
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-24
74LS42 BCD to Decimal Decoder IC
74LS47 BCD to Seven Segment Decoder Driver IC
74LS48 BCD to Seven Segment Decoder IC

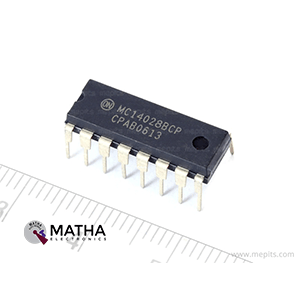

CD4028 BCD to Decimal Decoder Binary to Octal Decoder IC
- BCD to Decimal Decoder Binary to Octal Decoder
- Supply Voltage Range:Â 3 to 20V
- Input or Output Current: ±10mA
- Power Dissipation:Â 500mW
- Low level Output Voltage Max.:Â 0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage:Â 2.25V
- High level Input Voltage:Â 2.75V
- Propagation Delay Time Max.:Â 600ns
- Package:Â DIP-16
NE567 Tone Decoder Phase-Locked Loop IC
- Operating Voltage: 10V
- Output Voltage: 15V
- Storage Temperature Range: -650C to +1500C
- Power Dissipation: 300Mw
- Tone decoder/phase-locked loop
- Wide frequency range (.01Hz to 500kHz)
- High stability of center frequency
- Independently controllable bandwidth (up to 14%)
- High out-band signal and noise rejection
- Logic-compatible output with 100mA current sinking capability
RF 433Mhz RX TX Encoder Decoder board [HT12E & HT12D IC]
- Operating voltage: 3.6~5.5v ( 5v recommended),
- Receiver sensitivity as high as -110dbm,
- Compatible with HT12E and HT12D,
- Low power and good range.
- High-frequency stability and low coherence and interference
- Easy interfacing with the RF modules, using the female headers for placing the modules.
- Breakout pins for connecting to the microcontroller.
- DIP Switch for Address Selection (when multiple modules are used at one location)
- Status LED for valid transmit.
- Supports both ASK, FSK RF modules
- Small size, high quality PCB.
