Showing 1–12 of 31 results

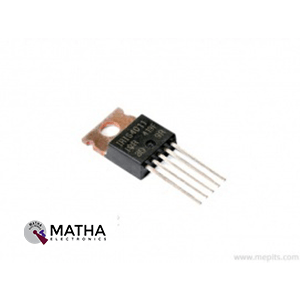

IRIS4011 Integrated Switcher IC

100.00 inc. GST
  • Integrated Switcher
  • Peak Drain Current: 6.8A
  • Maximum Switching Current: 2.7A
  • Power Dissipation for Mosfet: 89W
  • Power Dissipation for Control Part: 0.8W
  • Maximum OFF Time(for Control IC): 60µs
  • Minimum OFF Time(for Control IC): 1.5µs
  • Drain Source Voltage(for Mosfet): 650V
  • ON-Resistance(for Mosfet): 3.9Ω
  • Package: 5-Lead TO-220

LNK304PN Off-line Switcher IC

50.00 inc. GST
  • Drain Voltage: -0.3 V to 700 V
  • Peak Drain Current: 400 mA
  • Feedback Voltage: -0.3 V to 9 V
  • Feedback Current: 100 mA
  • Operating Junction Temperature: -40 °C to 150 °
  • Lowest Component Count, Energy-Efficient Off-Line Switcher IC
  • Lowest cost and component count buck converter solution
  • Fully integrated auto-restart for short-circuit and open loop fault protection – saves external component costs
  • 66 kHz operation with accurate current limit – allows low cost off-the-shelf 1 mH inductor for up to 120 mA output current

LNK500PN Switcher IC

48.00 inc. GST
  • Output Voltage: 5.6 V
  • Supply Range: 85-265 VAC
  • Duty Cycle (max): 80
  • Switching Frequency: 42KHz
  • Supply current: 1.06mA
  • Output current: 280mA
  • Output power: 3W
  • Package: DIP-8

LNK564PN Off-line Switcher IC

55.00 inc. GST
  • Output Voltage: 5.8 V
  • Supply Range: 85-265 VAC
  • Duty Cycle (max): 70%
  • Switching Frequency: 100KHz
  • Supply current: 220µA
  • Output current: 148mA
  • Output power: 3W
  • Package: DIP-8

TNY176PN Off-line Switcher IC

45.00 inc. GST
  • Drain Voltage: -0.3 to 650V
  • Drain Peak Current: 720mA
  • ENABLE Voltage: -0.3 to 9V
  • ENABLE Current: 100mA
  • ON State Resistance (max): 16Ω
  • Energy Efficient, Offline Switcher with Enhanced Flexibility and Extended Power Range
  • 650 V rating optimized for non-active PFC applications
  • Simple ON/OFF control, no loop compensation needed
  • Pin-out simplifies heat sinking to the PCB
  • SOURCE pins are electrically quiet for low EMI
  • Package: DIP-8C

TNY177PN Off-line Switcher IC

55.00 inc. GST
  • Drain Voltage: -0.3 to 650V
  • Drain Peak Current: 880mA
  • ENABLE Voltage: -0.3 to 9V
  • ENABLE Current: 100mA
  • ON State Resistance (max): 9Ω
  • Package: DIP-8C
  • Energy Efficient, Offline Switcher with Enhanced Flexibility and Extended Power Range
  • 650 V rating optimized for non-active PFC applications
  • Simple ON/OFF control, no loop compensation needed
  • Pin-out simplifies heat sinking to the PCB
  • SOURCE pins are electrically quiet for low EMI

TNY254PN Off-line Switcher IC

45.00 inc. GST
  • Drain Voltage: -0.3 to 700V
  • Drain Peak Current: 400mA
  • ENABLE Voltage: -0.3 to 9V
  • ENABLE Current: 100mA
  • ON State Resistance (max): 36Ω
  • Package: DIP-8
  • Energy Efficient, Low Power Off-line Switcher
  • Cost effective replacement for bulky linear adapters
  • Simple ON/OFF control, no loop compensation needed

TNY256PN Off-line Switcher IC

40.00 inc. GST
  • Drain Voltage: -0.3 to 700V
  • Peak Drain Current: 800mA
  • ENABLE Voltage: -0.3 to 9V
  • ENABLE Current: 100mA
  • ON-State Resistance(max): 18Ω
  • Package: DIP-8
  • Energy Efficient, Low Power Off-line Switcher
  • Extended power range
  • Fully integrated auto-restart reduces short circuit current

TNY264PN Off-line Switcher IC

65.00 inc. GST
  • Drain Voltage: -0.3 to 700V
  • Drain Peak Current: 400mA
  • ENABLE Voltage: -0.3 to 9V
  • ENABLE Current: 100mA
  • ON State Resistance (max): 32Ω
  • Package: DIP-8B
  • Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
  • Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
  • Lowest component count switcher solution

TNY266PN Off-line Switcher IC

50.00 inc. GST
  • Drain Voltage: -0.3 to 700V
  • Drain Peak Current: 560mA
  • ENABLE Voltage: -0.3 to 9V
  • ENABLE Current: 100mA
  • ON State Resistance (max): 16Ω
  • Package: DIP-8B
  • Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
  • Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
  • Lowest component count switcher solution

TNY267PN Off-line Switcher IC

50.00 inc. GST
  • Drain Voltage: -0.3 to 700V
  • Drain Peak Current: 720mA
  • ENABLE Voltage: -0.3 to 9V
  • ENABLE Current: 100mA
  • ON State Resistance (max): 9Ω
  • Package: DIP-8B
  • Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
  • Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
  • Lowest component count switcher solution

TNY268PN Off-line Switcher IC

60.00 inc. GST
  • Drain Voltage: -0.3 to 700V
  • Drain Peak Current: 880mA
  • ENABLE Voltage: -0.3 to 9V
  • ENABLE Current: 100mA
  • ON State Resistance (max): 6Ω
  • Package: DIP-8B
  • Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
  • Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs
  • Lowest component count switcher solution
