-17%

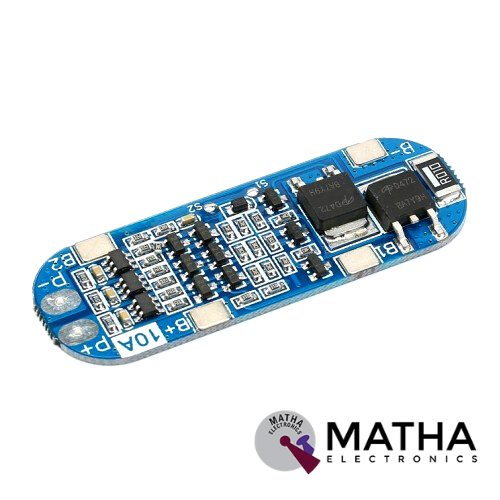

3S BMS Charging Module
₹300.00 ₹250.00 inc. GST

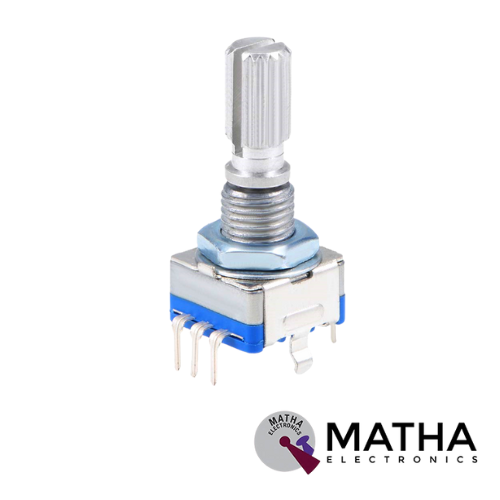

Rotary Encoder Controller With Switch
₹100.00 ₹80.00 inc. GST
2.1 Channel Class D Amplifier Board 50+50+100W
₹3,000.00 ₹2,500.00 inc. GST
Related products
TPA3118 PBTL digital amplifier board 1X60W 12V 24V Mono AMP
PAM8406 Digital Amplifier Board 5W×2 Volume Adjustable D class module
- Working voltage:3.5 - 5V, limit operating voltage 5.5V
- Excellent noise suppression can hear any noise without connecting input audio
- Dual-channel stereo, 5v power supply is needed that can input 5w+5w power, to drive 4, 8 little speaker directly
- Volume adjustment of the right and left channel
- The unique non-LC filter Class-D digital power board used computer USB to charge.
- Dual-panel wiring solves the ground potential balance and avoids the crosstalk between channels caused by wiring
- Super miniature design
- Used machine to weld whole plate.
- Weight: 15 grams.
PAM8403 DIGITAL AMPLIFIER BOARD
- 3W output at 10% THD with a 4ohm load & 5V power supply
- Output power: 3W
- Supply voltage: 2.5V-5.5V
- Low THD+N
- Superior low noise
- efficiency up to 96%
- Thermal shutdown
- Low quiescent current and low EMI
- Few external components to save space & cost
- High fidelity sound output 3W + 3W, is a rare good product
- High amplification efficiency of 85%
- Unique without LC filter class D digital power board
- Can use computer USB supply directly
- High life expectancy up to 15 years
- Dimension:24*15mm
TDA7498E Double 160W Power Amplifier Dual Channel Stereo Audio Amplifier Module Support BTL Mode
- Amplifier chip: TDA7498E
- Working voltage: DC 15-36V (Recommend 32V, 8A, if power is too small will appear distortion and so on.)
- Output power: 2 x 160W
- Number of channels: Two-channel Stereo
- Efficiency: 85%
- Applicable speaker impedance: 4/6/8ohm (8ohm is the best).
- 160-W + 160-W output power at THD = 10% with RL = 4 Ω and VCC = 36 V
- 1 x 220 W output power mono parallel BTL at THD = 10% with RL = 3 Ω and VCC = 36 V
- Wide-range single-supply operation (14 - 36 V)
- High efficiency (η = 85%)
- Parallel BTL function using the MODE pin
- Four selectable, fixed gain settings of nominally 23.8 dB, 29.8 dB, 33.3 dB and 35.8 dB
- Differential inputs minimize common-mode noise
- Standby and mute features
- Smart protection
- Thermal overload protection
- Small offset less than 20 mV
- PCB board size: 108 x 78mm
- Weight: 172g(approx.)
Bluetooth Receiver With Amplifier Board
TDA7498 High Power Digital Amplifier Board 2*100W DC 14-34V Audio Stereo Amplifier Board
- High power class d digital amplifier.
- Two-channel stereo, 2x100w power output.
- Material: Metal
- 100 W + 100 W output power at THD = 10% with RL = 6 Ω and VCC = 36 V
- Wide-range single-supply operation (14 - 39 V)
- High efficiency (η = 90%)
- Four selectable, fixed gain settings of nominally 25.6 dB, 31.6 dB, 35.1 dB and 37.6 dB
- Applicable speaker impedance: 4/6/8 ohm(8 ohm is the best).
- Differential inputs minimize common-mode noise
- Standby and mute features
- Short-circuit protection
- Thermal overload protection
- Externally synchronizable
- size: 110*70*10mm
TDA7266 Dual Audio Channel 7W + 7W Amplifier Module
- Operating Voltage Range: 3 V to 18 V
- Power supply:14W
- On-board TDA7266 stereo audio amplifier chip
- Output: dual-channel 7W + 7W
- On-board 5.08 mm terminal blocks for the left and right audio channels
- On-board potentiometer for volume adjustment
- DC power jack
- Minimum external components
- On board TDA7266 audio power amplifier chip, double track 7W + 7W, suitable for 4-8 Euro, 5-15W speakers.
- The main pin has led chip, convenient external device control, onboard 2 road 5.08 (mm) distance between two p terminal, around a track connection output respectively.
- The on-board dial potentiometer, output size can adjust the volume.
- Support in DC, terminal blocks, row needles 3 power input mode, the default for the DC,
- Standby and mute functions
- Short-circuit protection
- Thermal overload protection
- Dimension:45mm * 33mm * 30mm
- Weight:7g
Red – 2 Channel 3W Digital Power PAM8403 Class D Audio Amplifier Board USB 5V
- Input Voltage: 2.5-5.5 V (USB power supply).
- Output Impedance: 4 ohm.
- Efficiency: 90%.
- Frequency Response: 150 Hz – 20 KHz.
- Input Impedance: 2 K ohm.
- A class D-type amplifier without a filter, low quiescent current, and low EMI.
- Good noise suppression.
- Input audio should be via sheilded wire.
- Dual channel stereo output 3 w + 3 w power.
- Works with 5v power supply.
- Can directly drive 4 /8 Ohm small speakers.
- When connects with a 4-ohm load and 5V power supply, the output power can be up to 3W.
- Low THD, low noise.
- Short circuit protectioN, thermal protection.
- Dimensions: 15 x 20 mm.
