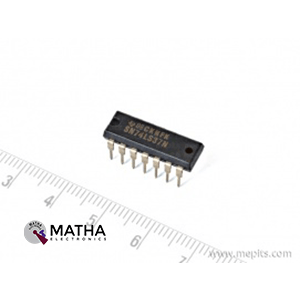

74LS37 Quadruple 2-Input Positive-NAND Buffer IC

74LS37N designed as a high-speed Quad 2-Input Positive NAND Buffer IC fabricated in low power schotkey technology. These devices come with four independent 2-input Positive-NAND buffers/drivers. They perform the Boolean functions Y = A • B or Y = A + B in positive logic. The SN55188 is designed for operation over the full military temperature range of −55°C to 125°C. 74LS37N manufactured in 14−pin plastic PDIP wide body surface mount packages.

The 74LS37 is part of the 74XXYY IC family. The 74LS132 IC is capable of functioning in a broad variety of working voltages and environments. And it works with CMOS, NMOS, and TTL directly. The IC’s output is always in TTL, making it simple to interface with other TTL devices and microcontrollers. The IC 74LS37 is smaller in size and has a significantly higher speed, making it extremely dependable in any device. The supply voltage for the 74LS37 is between 4.75 and 5.25 volts. The 74LS132 IC can be installed on a 14 pin IC base or connected directly to the circuit board.

The NAND gate is a type of digital logic gate that is frequently utilized in DLD applications. It’s also known as a universal logic gate since it may be used to build any logic gate or expression. If any of the NAND gate’s inputs are set to high, the gate’s output will always be a logical low. A NAND gate, on the other hand, produces a logical high only when all of its inputs are set to LOW.

APPLICATION

• Logical Decision making.
• Circuits involving conditional operations.
• DIY projects for various logic gates based applications
