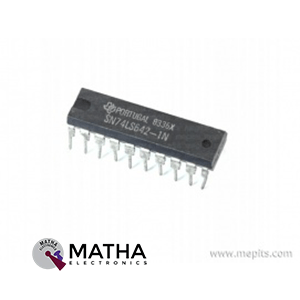

74LS642 Octal Bus Transceiver IC designed explicitly for asynchronous two-way communication between data buses. The device allows to transmits the data from Bus A to Bus B or from Bus B to Bus A depending upon the level at the direction control DIR input. The Enable input G’ used to disable the device so that the device effectively isolates.
74LS642 Octal Bus Transceiver IC is identical to the standard versions except for the recommended maximum IOL increased to 48 milliamperes. This IC operates at a supply voltage at a range between 4.75V and to a maximum of 5.25V. This IC designed for operation over the full military temperature range of −0°C to 75°C. 74LS642 manufactured in 20−pin plastic PDIP wide-body surface-mount packages.
Bus transceivers designed as electronic tri-state bi-directional devices that allows the flow of data between two points. This makes them compatible with bus-oriented systems or the bi-directional (input or output) control of interface circuitry. Moreover, Bus transceiver exist as inverting or non-inverting, common examples are 74LS243 & LS242 IC series. Bus tranceivers are designed specifically for asynchronous two-way communication between two data buses or input/output device. The transceiver allows for the transmission of data from terminals A to terminals B or the reverse depending on the logic level at the direction-control input. These IC widely used to provide bidirectional, input or output control, of either digital or analogue devices to a common shared data bus.
Applications
- Building Automation
- Electronic Point of Sale
