AC-DC Power Module HLK-PM01 230V to 5V /3W
Original price was: ₹400.00.₹350.00Current price is: ₹350.00. inc. GST

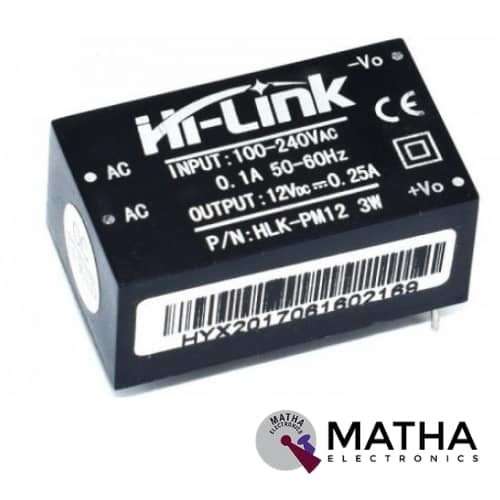

AC-DC Power Module HLK-PM12 230V to 12V /3W
Original price was: ₹400.00.₹350.00Current price is: ₹350.00. inc. GST
AC-DC Power Module HLK-PM03 230V to 3.3V /3W
Original price was: ₹400.00.₹350.00Current price is: ₹350.00. inc. GST
- Meet UL, CE requirements
- Rated input voltage: AC 100V -230V
- Input voltage range: 90V -264V AC
- Maximum input current: <0.2A
- Input current surge: <10A
- Maximum input voltage: <270V AC
- Input Low Voltage Efficiency Vin=110V AC，Output full-load≥ 69%
- Input High Voltage Efficiency Vin=220V AC，output full-load≥ 70 %
- Long-term reliability
- Voltage Regulation: ±0.2%
- Load Regulation: ±0.5%
- Ultra-thin and small module
- High efficiency, high power density
- Low ripple and low noise
- Output overload and short circuit protection
- Working temperature: – 20 degrees to +60 degrees Celsius
- Storage temperature: -40 degrees to 80 degrees Celsius
- Relative humidity: 5-95%
- Cooling way: Natural cooling
- Atmospheric pressure: 80-106Kpa
- Weight: 21g
- Size: 38x23x18mm
Description
HI LINK AC- DC PM03 3.3V/3W power module designed as a PCB mounted isolated switching step down power supply module that supplies a voltage 3.3V DC from 120V AC-230V AC with a power rating of 3W. These modules can replace various components such as a diode, voltage regulators, and transformers. These modules can replace various components such as a diode, voltage regulators, and transformers. This module always provides low-temperature rise, high-security isolation, low power consumption, and ensures high efficiency and high reliability. Also, this power supply module voltage source is a switching source there is no worry of any fluctuation in the voltage grid.
It is an ideal solution for power pads as it is mounted on PCB. These modules are commonly used in home automation and control, communication equipment, instrumentation, and also other industrial products. Thus perfect for small projects which require 3v as main power. And perfect to use for places where space is a constraint. Hence, this module allows designers to use a wide range of applications in minimum time with significantly reduced development effort and cost.
APPLICATIONS:
- Wireless communication between two microcontrollers
- Communicate with Laptop, Desktops and also mobile phones
- Data Logging application
- Consumer applications
- Wireless Robots
- Home Automation
