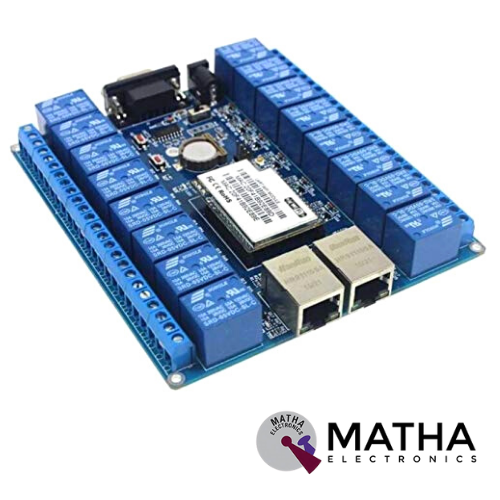

HLK-SW16 16 CHANNEL WIFI CONTROLLED RELAY BOARD
Original price was: ₹5,100.00.₹5,050.00Current price is: ₹5,050.00. inc. GST
AC-DC Power Module HLK-PM12 230V to 12V /3W
Original price was: ₹400.00.₹350.00Current price is: ₹350.00. inc. GST
- Rated input voltage: AC 100V -230V
- Input voltage range: 90V -264V AC
- Maximum input current: <0.2A
- Input current surge: <10A
- Maximum input voltage: <270V AC
- Input Low Voltage Efficiency Vin=110V AC，Output full-load≥ 69%
- Input High Voltage Efficiency Vin=220V AC，output full-load≥ 70 %
- Short-term maximum output current: ≥1000 mA
- Long-term reliability
- Voltage Regulation: ±0.2%
- Load Regulation: ±0.5%
- Ultra-thin and small module
- High efficiency, high power density
- Low ripple and low noise
- Output overload and short circuit protection
- Working temperature: – 20 degrees to +60 degrees Celsius
- Storage temperature: -40 degrees to 80 degrees Celsius
- Relative humidity: 5-95%
- Cooling way: Natural cooling
- Atmospheric pressure: 80-106Kpa
- Weight: 21g
- Size: 38x23x18mm
Description
AC-DC Power Module HLK-PM12 230V to 12V /3W power module designed as a PCB mounted isolated switching step down power supply module which supply a voltage 12V DC from 120 V AC-230V AC with a power rating of 3W. Â It offers a power rating of 3 Watt with low ripple and low noise features. These modules can replace various components such as a diode, voltage regulators, and transformers. This module always provides low-temperature rise, high-security isolation, low power consumption, and ensures high efficiency and high reliability. Also, this power supply module voltage source is a switching source there is no worry of any fluctuation in the voltage grid.
It is an ideal solution for power pads as it is mounted on PCB. These modules are commonly used in home automation and control, communication equipment, instrumentation, and also other industrial products. Thus perfect for small projects which require 12V as main power. And perfect to use for places where space is a constraint. Hence, this module allows designers to use in a wide range of applications in minimum time with significantly reduced development effort and cost.
APPLICATIONS:
- Wireless communication between two microcontrollers
- Communicate with Laptop, Desktops and also mobile phones
- Data Logging application
- Consumer applications
- Wireless Robots
- Home Automation
