Acrylic Bracket for OV7670 Camera Module

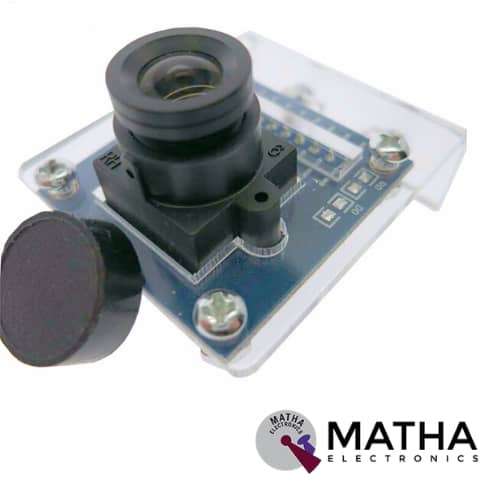

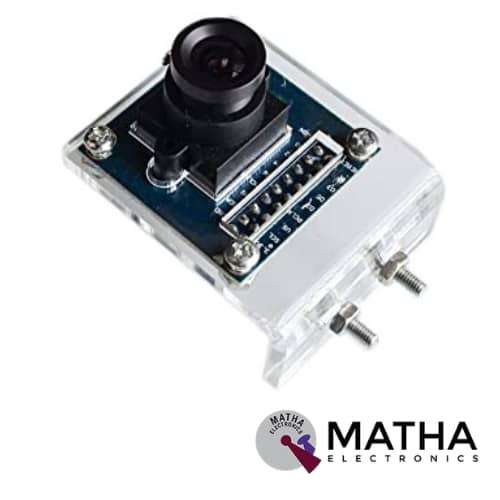

This Transparent Acrylic Bracket for the OV7670 VGA Camera Module is designed as an enclosure box. This acrylic bracket is made up of high-grade acrylic, which provides excellent protection. This unique design offers easy interfacing/connection to other components. Moreover, the dimension of the enclosure box is the same as the PCB size of the OV7670 VGA Camera Module.

An OV7670 image sensor is a low-cost and low voltage CMOS image sensor. It is a DSP module that can operate at a maximum of 30 fps and 640 x 480 (“VGA”) resolutions. This is equivalent to 0.3 Megapixels.DSP pre-processes the captured image before sending it. The Serial Camera Control Bus (SCCB)  performs the pre-processing configuration. Thus the SCCB performs actions including the gamma curve, white balance, saturation, and chroma. So the sensor can output the whole frame, sampling, and various resolutions of 8 bits of data. The product VGA image can reach up to a maximum of 30 frames per second. Users can completely control the image quality, data format, and transmission mode.

OV7670 640X480 VGA CMOS Camera  Sensor provides a wide range of applications in your small embedded systems and  Robotics. Output Connector will be easy to fix into any prototype board or breadboard and makes our project/product implementation fast and easier. OV7670 features high sensitivity, Lens shading correction Flicker (50/60 Hz), auto-detection Saturation level auto adjust (UV adjust), Edge enhancement level auto-adjust, as a result, improve the quality of the image, and get clear and stable colour images.
