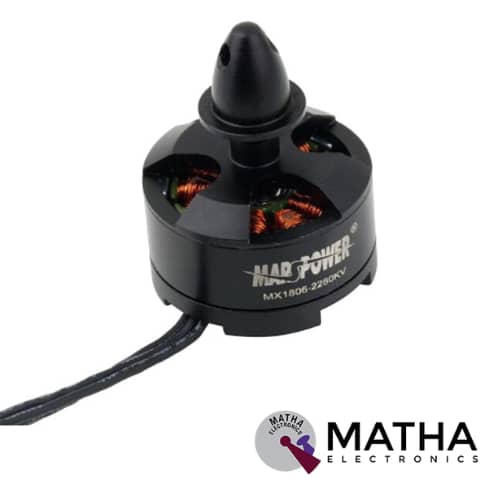

MARSPOWER MX1806 2280KV BLDC Motor
₹1,349.00 Original price was: ₹1,349.00.₹1,299.00Current price is: ₹1,299.00. inc. GST
- VK: 2280
- Max thrust: 460g
- No of cells: 2-3S
- Framework: 12N14P
- Suitable Propeller: 5-6”
- Shaft: 2mm
- Minimum ESC Specification: 12A Suggested
- Durable with high quality
- The 0.2mm core to lower load temperature and increase efficiency
- Range of use for DJI F330 ZMR250 H250
- Do every single motor balancing test
- Japan NMB bearings provide low noise and long life
- 2mm spindle selection of Kawasaki, Japan, more efficient, less heat
- NdFeB magnets temperature selection
- MX1806 (positive thread motor)
- FPV all configurations life 7-8 minutes!
- Easy to loosen the nut bombing risk!
- Low centre of gravity design
- Long-endurance design
- Dimension: 26.7*23mm
- Weight: 18gm
Out of stock
MARSPOWER MX1806 2280KV Multi-axis Brushless Motor designed explicitly for Quadcopter is the best motor for drones. It provides good performance and is available with high-quality motors. Mars Power motors are lightweight in design and designed specifically for FPV QAV250 axis level building. MARSPOWER MX1806 2280kV Multi-Axis Brushless Motor for Quadcopter is available with the framework of 12N14P. An integral design is adopted for the motor shaft for more effective protection. A new type of impeller seat design achieves more stable performance and more convenient disassembly. An efficient 0.2mm core is used to lower the load temperature, thus achieving high efficiency. The range of use for DJI F330 ZMR250 H250.
MARSPOWER MX1806 2280KV Multi-axis Brushless Motor highly recommended using 5-6” propeller wit 2-3s Lipo batteries. This multi-axis brushless motor uses an MX1806 positive thread motor. The threads of positive and negative electrical configuration, eliminate the multi-axis shot after installing anti-paddle paddle security risks. This Brushless motor is capable of achieving a maximum tension of 460g with a single 18g single motor, in which the positive and negative switched from tight clamp designed to avoid the traditional paddle clips. The Propeller and motor mount cover are designed using an integrated moulding process, this ensures better concentricity mounted paddle.
Japan NMB bearing used in the MX1806 2280kv multi-axis brushless motor provides comparatively low noise and long life. Finally, this Multi-axis multi-rotor motor is designed with a low centre of gravity and a long-endurance design.

Related products
A3967 STEPPER MOTOR DRIVER
- A3967 precision micro-stepping driver
- Power supply: 7v to 30v
- Logic voltage: 5v to 3.3v
- Higher the voltage higher the torque at high speed
- Adjustable current control from 150Ma/ phase to 750ma phase
- Automatic current decay mode detection/selection
- Fast, slow, and mixed current decay modes
- Internal UVLO and thermal shutdown circuitry
- Crossover current protection
- Micro stepping resolution to full, half, quarter, and eighth steps by broken out MS1 and MS2 pins.
- Compatible with Arduino, GRBL G-Code interpreter for driving3-axis CNC machines
- Salington sink drivers used
- Compactible with 4, 6,8 wire stepper motor of any voltage
F450 Quadcopter Frame
- Model: F450
- Frame width: 450mm
- Frame height: 55mm
- Frame Weight: 282g
- Take-off Weight: 800g ~ 1200g
- Motor Mount Bolt Holes: 16/19mm
- Landing Gear Height: 150mm
- Landing Gear Weight: 90gm
- Made by advanced engineering material, super strong & smooth.
- High quality and strong ability of anti-fall, lower maintenance cost.
- Compact design with small numbers of components, you can assemble it by yourself quickly and easily.
- Recommended Propeller: 10x4.5in;8x4.5in
- Recommended Battery: 3S~4S LiPo
- Recommended Motor: 22x12mm (Stator size)
- Recommended ESC: 20A/30A ESC
KK-Mini FLIGHT CONTROLLER
- IC: Atmega644 PA
- Gyro/Accelerometer: Auto-level: Yes
- Input Voltage: 4.8-6.0V
- AVR interface: standard 6 pins.
- The signal from Receiver: 1520us (5 channels)
- Signal to ESC: 1520us
- LCD size: 24*18mm
- Mini buttons size: Four 3.3*4.2mm
- Mounting holes: 30.5x30.5mm
- Voltage sensor: One red positive pin header for.
- Input rail: Single row 2.54mm pitch pin header for input signal
- Firmware Version: 1.6
- Dimension: 36x36x11.5mm
KK2 1.5 Flight Control
L298N MOTOR DRIVER
- Driver model: L298N 2A
- Driver chip: Double H bridge L298N
- Motor supply voltage: 46V(maximum)
- Motor supply current: 2A(maximum)
- Logic voltage: 5v
- Driver voltage: 5V-35V
- Driver current: 2A
- Logical current: 0-36mA
- Maximum power: 25W
- Current sensor for each motor
- LED indication for power status
- Heat sink for better performance
- Operating temperature: -25 degrees to 135 degrees Celsius
- Can be interfaced with simple manual switches, TTL logic gates, relays, etc.
- Dimension: 55*60*30mm
- Weight: 33gm

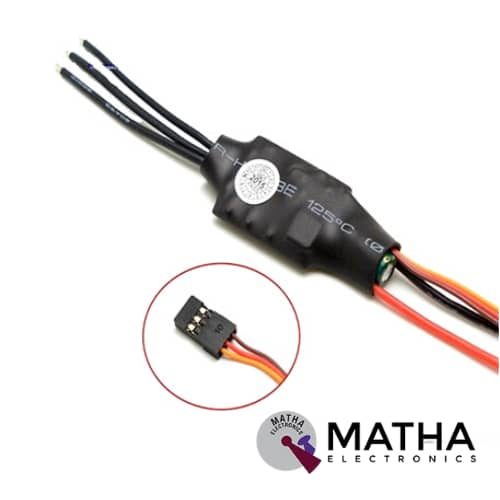

MR.RC 12A ESC
- Input Voltage: 2-3S LIPO
- Working Current: 12A
- Burst current (10S): 15A
- BEC: 5V / 1A Programmable: Yes
- With stable performance, it is practical and durable
- Offer you high compatibility, reliability, and stability
- Throttle range can be set to be compatible with different receivers.
- Equipped with built-in linear BEC or switch BEC.
- Easy to install and convenient to use
- Play a significant role in driving and controlling the motor to complete all kinds of instructions
- Suitable for 250 Mini four-axis and F330 aircraft, etc
- Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
- Dimensions:38 x 20 x 6 mm
- Weight: 30g
NEMA17 STEPPER L CLAMP
Sunny Sky A2212 980 kv
- Poor man’s Tiger motor
- Brand name: Sunnysky
- KV: 980KV.
- Framework: 12N14P
- Operating Current: 6A ~ 18A
- Peak Current: 14A
- Shaft: 3mm.
- thrust: 880g
- Stator Diameter: 22mm
- Stator Thickness: 12mm
- of Stator Slots: 12
- of Rotor Poles: 14
- Motor Resistance: 123mΩ
- Max Continuous Power: 330W
- Recommended Lipo Batteries: 2-3S
- Recommended Propeller: 9-10
- Recommended Esc between 25A and 30A are
- High-quality bearings for reliable operation.
- Imported silicon steel coils, and high-quality magnets ensuring longer life and better performance.
- Generates less heat during operations.
- Suitable for RC Airplane or Multi rotor helicopter
- Dimension: 27*30mm
- Weight: 50gm
