F450 Quadcopter Frame

A quadcopter is referred to as a type of helicopter with four rotors. The rotors present on the quadcopter consist of a motor and a propeller. The quadcopter frame is a structure that holds all the components together. It is capable of supporting motors and other electronics and prevents them from vibrations. The Quadcopter frames are arranged in a square or rectangle allow a stable and steady ascent and flying of the drone.

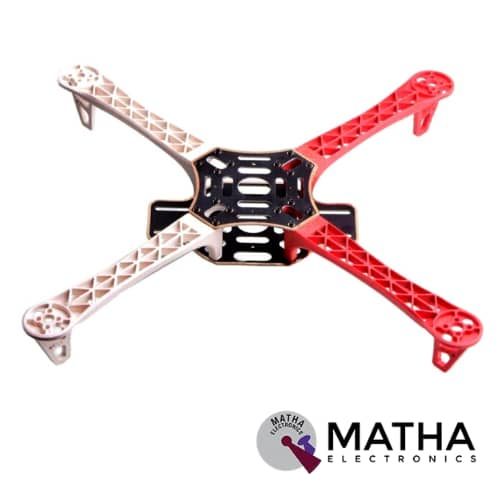

This F450 QuadCopter Frame with 4 arms is made up of high-quality Glass Fibre which makes it tough and durable. Ultra-durable Polyamide-Nylon is used for manufacturing arms that are much stronger moulded arms providing better thickness. As a result, there will be no arm breakage at the motor mounts on a hard landing. Moreover, these arms have support ridges on them, which improves stability and provides faster forward flight. In order to guide the copter in the right direction, the arm coloured as 2-red, 2-white. And this also allows the whole take-off weight to be controlled at about 800-1200 gm.

The F550 Glass Fibre Mini Quadcopter Frame is strong, light, and has a sensible configuration including a PCB (Printed Circuit Board). As a result, it can be directly soldered with ESCs to the Quadcopter. Thus, making the Quadcopter construction fast and easy. Moreover, it avoids the use of extra PDB (Power Distribution Board) and makes the mounting clean and neat.

The frame is constructed with a wheelbase of 450mm and weighs around 282gm. Pre-threaded brass sleeves are included in the copter for all of the frame bolts, so attaching the arms to the mainframe is done quite easily. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench for hardware mounting. This feature of the Q450 Quadcopter Frame makes it so easy to assemble and disassemble. Highly recommended to use with 10×4.5in; 8×4.5in the propeller, 3S~4S LiPo battery with 20A/30A ESC.
