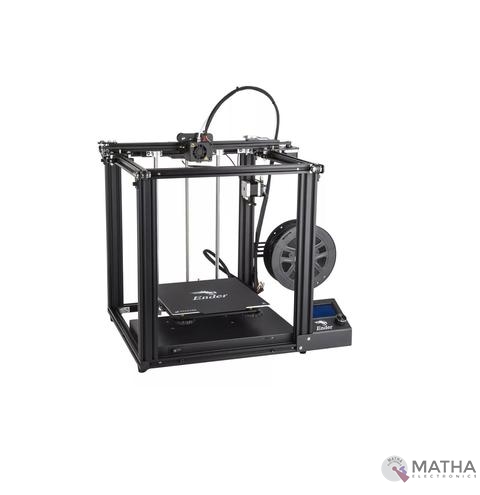

Creality 3D Ender-5 DIY 3D Printer Kit 220*220*300mm Printing Size
₹24,000.00 Original price was: ₹24,000.00.₹23,500.00Current price is: ₹23,500.00. inc. GST
- Moulding Technology: FDM.
- Print Dimensions: 220*220*300mm.
- Print Speed: <180mm/s, Normal Printing Speed 40-80 mm/s.
- Print Accuracy: + – 0.1mm.
- Layers Thickness: 0.1-0.4mm.
- Nozzle Diameter: Standard 0.4mm. Convertible 0.2, 0.3mm.
- Nozzle Quantity: 1.
- Nozzle Temperature: <260 Degree C
- Hot Bed Temperature: <135 Degree C
- Working Modes: Online or TF Cards are printed offline.
- File Formats: STL, ODJ, AMF.
- Slicing Software: Cura, Repeti-Host, Simlify 3d.
- Power Parameters: Input:110v/220v. 50/60Hz. Output: DC 24V.
- Machine Power: 270W.
- Printing Materials: PLA, ABS, Soft Glue, Wooden, Copper Containing, Gradient, etc.
- Consumables Diameter: 1.75mm.
- Heating upto 100 deg C in 5 mins,
- Printing with High precision,
- Resume Printing after power-off,
- Soft Magnetic Stickers – Instead of traditional beauty paper & glue, easy to mold, model adhesion is good.
- Built-in Power Supply – 350w high-quality power supply, easy to achieve long time stable printing.
- Dual Y-Axis – synchronization, small moving quality, flexible & reliable.
- Down Shift Z-Axis – for smoother movement.
- Descartes Design – Down Shift Z-axis for smoother movement.
Out of stock
Creality 3D Ender-5 DIY 3D Printer Kit 220*220*300mm designed extremely as an innovative design, with integrating classic elements, create a new generation economic DIY 3D printers. This 3D printer is capable of providing more consistent, good-quality prints. It provides a spacious print area of 220* 220*300 mm with a controllable Ender-5 heat bed. This helps to print large items or many small items. Â This upgraded version features the Resume Print” technology, will resume from the last recorded extruder position, even if the printer suffers unexpected power outages.
This easy to install and high-performance printer offers many filament options beyond common plastics like PLA, ABS, Soft Glue, Wooden, Copper Containing, Gradient, etc. This Printer features a high-quality MK10 extrusion mechanism that effectively reduces the risk of plugging and poor spillage. And can print almost all filaments on the market. This 3D printer redesigned with a dual Y-axis running control system drives the timing belts on both sides to output stably. Thus effectively avoids the oscillating and lost balance due to long-time printing.
This also includes superior printing quality with a soft magnetic adhesive platform, that is completely removable and flexible. So the textured surface adheres to all types of filament better than traditional methods such as tape, glue, or hairspray. Thus does not require any model warping on larger prints. Once the model completed printing, the magnetic upper removed from the lower. And is bend or flex the print surface to watch the model effortlessly pop off the printing surface. With a Safety protected Power supply, helps to reach 100℃ for Ender 5 heated bed about 5 minutes. Moreover, the additional power cut protection function provided to meet the needs of fast heating and longtime printing. Finally, this enhanced bed leveling makes leveling the bed much easier and more precise, using larger bed leveling nuts.

Related products
0.5mm 3D Printer Extruder Brass Nozzle
Arduino CNC Shield v3 Engraving Machine/3D Printer/A4988 driver GRBL compatible
- Coolant enable
- Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825, and others) (Not Included)
- Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
- Compact design.
- Stepper Motors can be connected with 4 pin Molex connectors or soldered in place.
- Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
- Please note that this is an unassembled kit and needs soldering.
- Latest Arduino CNC Shield Version 3.10
- GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
- PWM Spindle and direction pins
- 4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)
- 2 x End stops for each axis (6 in total)
Creality Children CR-100 3D Printer 100*100*80mm Printing Size 1.75mm 0.4mm Nozzle Support
- Brand: CREALITY 3D
- Model: CR-100
- Technology: FDM
- Type: Material extrusion
- Printing Size: 100*100*80mm.
- Machine Size: 241*183*255mm.
- Package Size: 250*230*340mm.
- N.W: 2.8Kg.
- G.W: 3.9Kg.
- Colour : Red
- Printing Method: FDM.
- Number of Nozzle: 1pcs.
- Slice Thickness: 0.1mm-0.4mm.
- Filament Diameter: 1.75mm.
- Working Mode: Online or SD card offline.
- File Format: STL, obj, amf.
- Nozzle Diameter: Standard 0.4mm.
- Plug: Default EU Plug from CN Warehouse.
- Rated Power: 50W.
- Power Supply Input: AC 100-240V /Output: DC 12V.
- Slice Software Cura/Repetier-Host/Simplify 3D.
MACH3 interface board
- Compatible Stepper Motor Driver - Max 5 2-phase Microstep controllers
- Driver type - Pulse and Direction signal control
- Wide input voltage range: 12-24V, and with anti-reverse function.
- Output 0-10V analogue voltage for the inverter to control the spindle speed.
- Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.
- USB power supply and peripherals power phase are separate to protect computer security.
- All the signals are to-isolate which can protect your computer security.
- 5-input interface to define the Limit, Emergence-Stop, Cutter alignment, etc.
- Wide input voltage range: 12-24V, and with anti-reverse function.
- One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.
- Maximum support 5-axis stepper motor driver controllers
- Output 0-10V analogue voltage for the inverter to control the spindle speed.
- All the way to the relay output port, control spindle switch. Output port P17 mouth.
- One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.
- Weight - Approx. 75g
- Dimensions - 90 * 70 * 20mm
NEMA 23 18.9 kg-cm
- Step Angle : 1.8 °
- Holding Torque : 18.9 kg-cm
- Operating Voltage : 3.2 Volts
- Supply Current (A)Â : 2.8 A/Phase
- No. of Leads : 4
- Inductance: 3.6 mH/Phase
- Resistance : 1.13 O/Phase
- Rotor Inertia : 480 gm-cm2
- Inductance Accuracy : ±20%
- Resistance Accuracy : ±10%
- Shaft Diameter (mm)Â : 6.35
- Shaft Length (mm)Â : 20.6
- Cable Length: 30 CM
- Comparably more powerful than NEMA17 motors.
- Input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing.
- Control of this motor is less costly because of exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
PR34 2004 LCD Display Smart Controller W or Adapter for RAMPS1.4 Reprap 3D Printer
- RAMPS 1.4 2004 LCD Display intelligent controller.
- LED background light control circuit, a small function of the intelligent controller,
- With pin short time to decide on all LED turn or steering 30 seconds
- You can turn on the light time to do the long or short form of the adjustment TRIMM R4100K from 10 seconds to 2 minutes.
- Plug and play on the RAMPS, but need to modify the firmware to support.
- The product comes encoder parameter adjustment can be achieved, and the file selection print.
- With an SD card base on the back, put slicing file into the SD card and select the file on the LCD, then can be printing.
SK8 Linear Rail Shaft Guide Support Bracket For 3D Printer Bearing CNC Stepper Motor
Stepper Motor Nema 23 kg 7.2 kg Dual shaft
- Rated Voltage: 6.6 V
- Current/ phase: 1A
- Resistance/ phase: 6.6ohms
- Inductance/ phase: 8.2 mH
- Holding Torque: 7.2 kg-cm
- of Leads - 6
- Rotor Inertia - 275
- Weight: 0.65kg
- Detent Torque: 0.36 kg-cm
- Step Angle - 1.8°
- Step Angle Accuracy - ±5% (full step, no load)
- Resistance Accuracy - ±10%
- Inductance Accuracy - ±20%
- Frame Size (mm) - 57x57
- Shaft Length (mm) - 20.6
- Shaft Diameter (mm) - 6.35
- Comparably more powerful than NEMA17 motors.
- Input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing.
- Control of this motor is less costly because of exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
