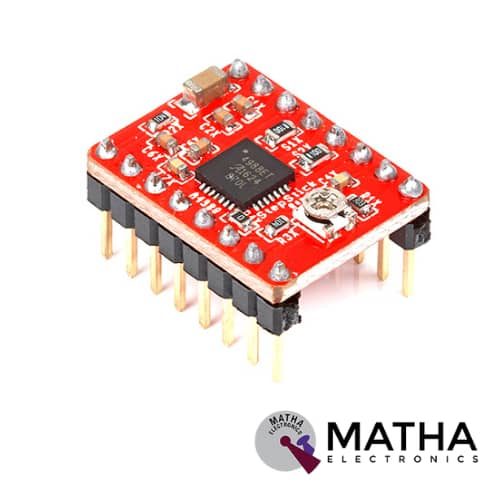

A4988 Stepper Motor
Original price was: ₹175.00.₹160.00Current price is: ₹160.00. inc. GST
DRV8825 Stepper Motor
Original price was: ₹300.00.₹275.00Current price is: ₹275.00. inc. GST
- Operating voltage: 8.2V to 45V
- Continuous current per phase: 1.5 Amp
- Maximum current per phase: 2.2 Amp
- Minimum logic voltage: 2.5V
- Maximum logic voltage: 5.25V
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- Compatible with 3V3 and 5V microcontrollers
- Our Board comes with 0.1 Ohm Sensor resistors
- The Correct current decay mode (fast decay or slow decay) selected by chopping control
- Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
- Short-to-ground and shorted-load protection
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Exposed solderable ground pad below the driver IC on the bottom of the PCB
- Dimensions : 15 x 20 mm.
- Weight: 4 gm.
Description
The DRV8825 stepper motor driver carrier designed as a breakout board based on TI’s DRV8825 micro-stepping bipolar stepper motor driver. It offers a wide range of advantages such as adjustable current limiting, over-temperature and over-current protection, and six microstep resolutions (down to 1/32-step). It operates at a wide operating voltage ranging from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
This module provides a nearly identical pinout and interface to those of the A4988 stepper motor drivers. As a result, used as a higher-performance drop-in replacement for many applications. DRV8825 stepper motor driver is easily controllable with any controller like Arduino, Raspberry Pi, AVR, and many others. Thus simplifies coding and ensures more flexibility in controlling motor.
DRV8825 stepper motor driver uses highly prominent Texas Instruments DRV8825 IC. This stepper motor can be controlled via just 2 pins. In which one for direction and the other for speed and step control. Thus makes it quite easy to control the speed and position of the motor from a microcontroller, Arduino, Raspberry Pi, etc. In case if we want to control a stepper Motor from Arduino, Raspberry Pi, or any other Micro-controller, this DRV8825 stepper motor driver will be a perfect choice. Thus simplify your coding and will give you more flexibility in controlling the stepper motor.
Application
- Printers and scanners
- 3D printers and CNC
- Roboticsufficient additional cooling).
