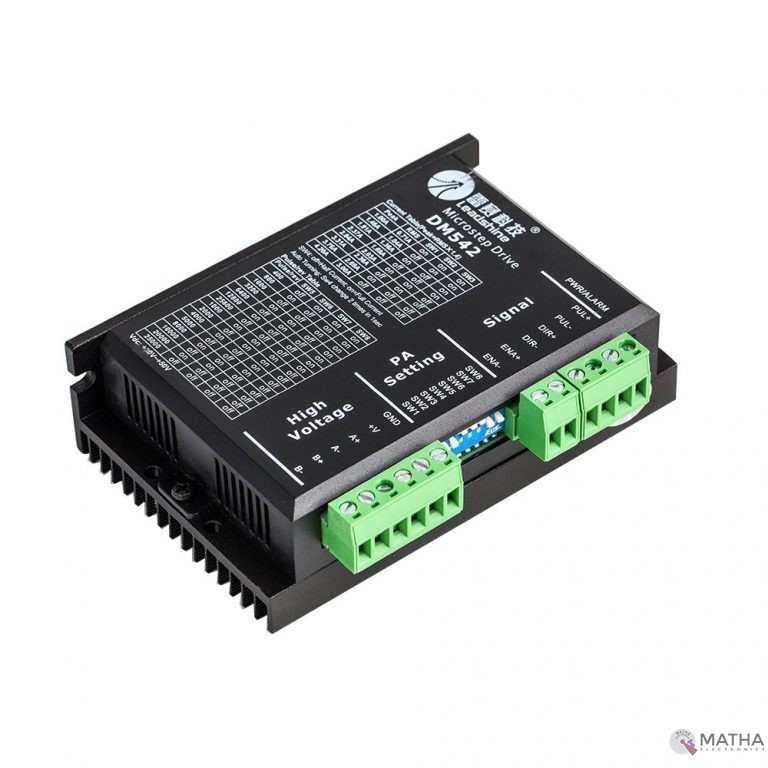

Leadshine DM542
₹4,500.00 inc. GST
- Good high-speed performance
- Supply voltage up to +50VDC
- Output current up to 4.2A
- Pulse frequency up to 300 KHz
- Extremely cost-effective
- Automatic idle-current reduction
- 3-state current control technology
- Self-adjustment technology
- Pure-sinusoidal current control technology
- TTL compatible and optically isolated input
- 15 selectable resolutions in decimal and binary, up to 25,600 steps/rev
- Suitable for 2-phase and 4-phase motors
- DIP switch current setting with 8 different values
- Support PUL/DIR and CW/CCW modes
- Short-voltage, over-voltage, over-current protection
Out of stock
DM542 defined as a fully digital stepping driver designed based on a DSP with an advanced control algorithm. This next generation of digital stepping motor controls offers a unique level of system smoothness. Thereby providing optimum torque and nulls mid-range instability. It features auto-identification and parameter auto-configuration offers quick setup technology while using with different motors and is easy-to-use.
The DM542 supports PUL/DIR and CW/CCW modes and pulse active at rising or falling edge. It also uses optocouplers to increase noise immunity and interface flexibility. In case If the optocoupler’s supply voltage greater than +5V, a current-limiting resistor connected at each command signal terminal to prevent overheating the optocouplers. The onboard RED LED indicates protection activated status.
The DM542 can drive any 2-phase and 4-phase hybrid stepping motors. Therefore, in order to improve reliability, the driver features some built-in protection functions such as Over-current Protection, Over-voltage Protection, and phase error protection. When the continuous current exceeds 3Amp or in case of short circuit between motor coils or between motor coil and ground, Over-current protection activates and RED LED will turn on. In case when the power supply voltage exceeds 30 VDC, over current protection activated and the RED LED turns on. In short, compared to the traditional analog motor drivers, the DM542 is more compact and lower cost.
DM542 operates with much smaller noise, lower heating, smoother movement than most of the drivers. This unique feature makes it an ideal solution for applications that require low-speed smoothness.

Related products
“PWM Generator Module for Stepper Motor Driver with Forward and Reverse Function “
- Board can be used to generate PWM signals for the stepper motor driver
- Operating Voltage: 12VDC
- Three Frequency Range
- Forward and Reverse Function.
- It has three frequency ranges selectable via onboard jumpers.
- Frequency can be measured via PUL and common cathode (GND) ports.
- The board has two sets of power input
5-36v Switch Drive High-power MOSFET Trigger Module
- Operating Voltage: DC 5V - 36V;
- The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support.
- Output capacity: DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
- Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc.. You can enter
- PWM, motor speed control, lamp brightness.
- Availability: unlimited switch
- Operating temperature: -40-85
- Dimension: 34mm x 17mm x 12mm
- The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
- Wide voltage, the perfect support for PWM
- Easily control high power devices
- Input PWM to achieve motor speed control, lamp brightness control
BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Arduino Current Limit
- Input voltage: 6V-27V
- Maximum current: 43A
- Input level: 3.3-5V
- Control mode: PWM or level
- Duty cycle: 0-100%
- Double BTS7960 large current (43 A) H bridge driver
- 5V isolate with MCU and effectively protect MCU
- 5V power indicator on board
- Four lines from MCU to driver module (GND. 5V. PWM1. PWM2)
- Reverse the motor forward, two PWM input frequency up to 25kHZ
- Two heat flow passing through an error signal output
- Dimension: Approx. 4 * 5 * 1.2cm
DRV8825 Stepper Motor
- Operating voltage: 8.2V to 45V
- Continuous current per phase: 1.5 Amp
- Maximum current per phase: 2.2 Amp
- Minimum logic voltage: 2.5V
- Maximum logic voltage: 5.25V
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- Compatible with 3V3 and 5V microcontrollers
- Our Board comes with 0.1 Ohm Sensor resistors
- The Correct current decay mode (fast decay or slow decay) selected by chopping control
- Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
- Short-to-ground and shorted-load protection
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Exposed solderable ground pad below the driver IC on the bottom of the PCB
- Dimensions : 15 x 20 mm.
- Weight: 4 gm.
L298P Motor Shield motor driver
- L298P based Arduino motor driver shield
- Operating Voltage 5V to 12V
- Motor controller L298P, Drives 2 DC motors or 1 stepper motor
- The logical part of the input voltage VD: 5V
- Driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
- The logical part of the work current Iss:<36mA
- Driven part of the operating current Io:<2A
- Current sensing 1.65V/A
- Free running stop and brake function
- Maximum power dissipation: 25W (T = 75 Celsius)
- Max current 2A per channel or 4A max (with external power supply)
- Control signal input level: High 2.3V
- Onboard Bluetooth interface, you can directly plug, no wiring required.
- The board with L298P motor drive chip, directly with the motherboard digital I/O port (D10, D11, D12, D13), without cumbersome wiring.
- Onboard buzzer (D4), you can set the reverse alarm ringtones.
- D2, D3, D5, D6, D7, D9 are not occupied by the digital interface.
- A 0 – A 5 six analogue interfaces.
- Forward and Backward steering are indicators
L9110 DC Stepper Motor Driver Board H-Bridge
- Low static work current
- Power supply voltage: DC2.5-12V
- Each channel has 800mA continuous current output
- Low saturation pressure drop
- TTL/CMOS output level compatible can be connected directly to the CPU
- Output built-in clamping diode, apply to the perceptual load
- Control and drive integrated into IC
- Have pin high-pressure protection function
- Working temperature: 0-80 °C
TB6560 CNC 3 Axis Stepper Motor Driver Controller Board
TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor
- Supply voltage up to +32 VDC
- Output current up to 3.0A
- Pulse frequency up to 20 KHz
- Suitable for 2-phase and 4-phase motors
- Over-voltage and short-circuit protection
- 7 output current choices, max 3200 steps/rev
- Automatic idle-current reduction
- Single-chip motor driver for sinusoidal micro-step control of stepping motors
- High output withstands voltage due to the use of BiCD process:
- Forward and reverse rotation
- Selectable phase excitation modes (2, 1-2, 2W1-2, and 4W1-2)
- High output withstand voltage: VDSS = 40 V
- High output current: IOUT = TB6560AHQ: 3.5 A (peak)
- Internal pull-down resistors on inputs: 100 kΩ
- Output monitor pin: MO current (IMO (max) = 1 mA)
- Reset and enable pins
