MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino
Original price was: ₹450.00.₹400.00Current price is: ₹400.00. inc. GST
Anti-Corrosion Water Level Sensor with Ball Float Switch
Original price was: ₹400.00.₹350.00Current price is: ₹350.00. inc. GST

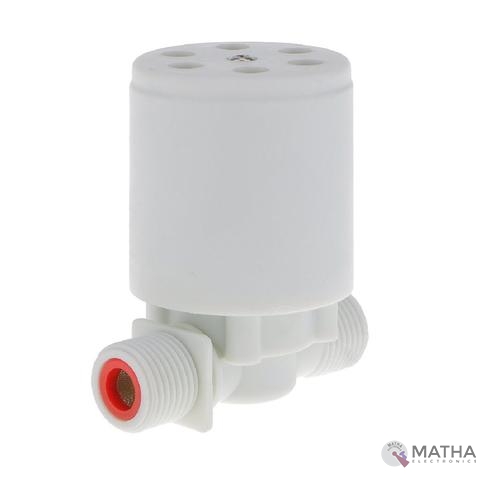

Floating Straight Automatic Water Level Control For Water Tank-14014449MG
Original price was: ₹500.00.₹450.00Current price is: ₹450.00. inc. GST
- Automatic Control, Low Self-Complementary Water, Water Full Automatic Stop.
- Four Intakes, Large Volume Of Water.
- Beautiful Appearance, Small Size, Practical, Simple Installation.
- Without Electricity, Easy To Use, Long Life, Low Failure Rate, Saving Water Resources.
- Working Pressure Range: 0.2-10Kg.
- Applicable Medium: Clean Water.
- Applicable Medium Temperature: ≤70degree C
- Resistance to High-Temperature to Medium Temperature: 70degree to 120degree C
- Material: Nylon Pa66, Stainless Steel Screws, Food Grade Rubber.
- Diameter: Approx. 46Mm / 1.81Inch.
- Dimension: Approx. 83*71mm
Out of stock
Description
Floating Straight Automatic Water Level Control For Water Tank-14014449MG designed as a replacement of the Traditional Float Ballcock. This water level controller can be widely used in various systems such as high water tanks, Pools, Water Towers Of The Industry And Civil Construction, Etc.
In this water level controller, when the water level in the pool or tank falls, the valve body will sink down. As a result, the forerunner of the control valve will be opened. So as the pipe water pressure affects, the seal face of the control valve will be opened. Finally, the water comes out and vice versa. This water level controller operates in clean water at a temperature of 70 degrees C. This automatic control device functions without electricity featuring Automatic Control, Low Self-Complementary Water, Water Full Automatic Stop. It consists of four intakes for water, thus a large volume of water can be operated at a time. Moreover, this compact-sized, beautiful appearance water level controller is quite simple to install.
NOTE:
- Maintain the valve regularly, if water quality is not good.
- In case, if the user finds the time of adding Water Becomes Longer, he can just upload the water inlet and make it washed.
APPLICATION:
- Water tower tank
- Solar, Toilet, Aquarists
- Agricultural Irrigation
- Food Machinery, humidifiers, heaters,
- Livestock drinking and swimming pool water control.
+
