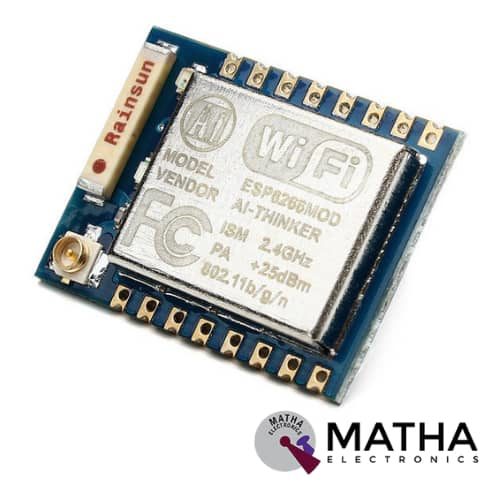

ESP8266 ESP - 07
Original price was: ₹349.00.₹299.00Current price is: ₹299.00. inc. GST
Antenna GSM-6DBI (Spring)
Original price was: ₹375.00.₹325.00Current price is: ₹325.00. inc. GST
GPS 3V Mount SMA-3M Cable
Original price was: ₹350.00.₹300.00Current price is: ₹300.00. inc. GST
- Central Frequency: 1575.42 MHz /GPS External Active Antenna- 2 MHz
- Polarization: R.H.C.P
- Input Voltage: 3 V to 5 V
- Gain: 27 dB / 01 dB
- Embedded Magnet for easy mounting
- Water-Proof Design
- 5 M Cable with SMA Connector
- Operating Temperature: 20 to 85 degree C
- Bandwidth (min.): 9 MHz
- Storage Temperature: 50 to 120 degree C
- Relative Humidity: 0 % to 100 %Transmitter & Receiver
Description
GPS Antenna 3V Magnetic Mount SMA – 3m Cable designed explicitly to operate in a perfect environment with MTK GPS module. This module designed with a waterproof function for use in tough terrain and environment. Thereby it maximizes the potential of GPS modules by bringing exceptional GPS signal reception performances. This module manufactured with an SMA connector format with a 2-meter length. Moreover, they consist of an embedded magnet at the bottom providing easy mounting on top of automobiles. To achieve better reception and additional gain, highly recommended using the GPS/GNSS embedded antenna GPS external active antenna series perfect for MTK GPS module.
GPS 3V Mount SMA-3M Cable operates with a Central Frequency of 1575.42 MHz +/- 2MHz with gain of 27dB +/0 1dB. It works on an input voltage of 3V to 5V.
Application:
- This GPS antenna can be equipped with SIM808, sim868, and other modules.
Reviews (0)
Shipping & Delivery
Related products
3DR Single TTL MINI Radio Telemetry 433MHz 250mW for PIXHAWK and APM
- MAVLink protocol framing status documents.
- Frequency modulation and Spread Spectrum (FHSS).
- Self-adaption to time-division multiplexing.
- Support LBT and AFA.
- Configurable duty cycle.
- Built-in error correcting code(up to 25% data bit error).
- AT command configures data transmission.
- RT command remote control data transmission.
- Interchangeable air and ground 433MHz modules.
- Micro-USB port.
- 6-position Molex connector.
- 250mW maximum output power (adjustable).
- SMA connector.
- 2-way full-duplex communication through adaptive TDM.
- UART interface.
- Transparent serial link.
- Open-source SIK firmware.
- Configurable through *Mission Planner and *APM Planner.
- Featuring a SiLabs Si1000 RF Microcontroller
- Support OTG of Android Cellphone and Compute
- Based on the Hope RF HM-TRP radio Module,
434MHz/315Mz TX & RX
Transmitter
- Working voltage: 3V - 12V for max. power use 12V
- Working current: max Less than 40mA max , and min 9mA
- Modulation mode: ASK
- Working frequency: 433MHz
- Transmission power: 25mW
Receiver
- Working voltage: 5.0VDC
- Working current:≤5.5mA max
- Modulation method: OOK/ASK
- Working frequency: 433.92MHz
- Bandwidth: 2MHz
- Sensitivity: excel –100dBm (50Ω)
- Transmitting velocity: <9.6Kbps (at 315MHz and -95dBm)
Antenna GSM-6DBI (Spring)
- Gain:6dBi
- Lower VSWR ≤ 2.0
- Signal stability.
- Cable Length: 3m
- Antenna Height: 28cm
- Polarization Vertical Impedance- 50 Ω
- Material: Metal
- Colour: Black
- Magnetic base
- Operation Temperature: -30~60 degree C
- Humidity: 5% to 95%
- Connector type: SMA Male Plug
- Compact size.
- Good appearance.
- Strong adaptability of environment.
Anti Spy Cell Phone Signal Bug Rf Camera GSM Device Detector 2600Mhz
- Colour: Black
- Detecting frequency: 100 - 2600mhz
- Effective range: 1-10m (32 - 32ft)
- Detect the harmful electromagnetic radiation
- Detect if there is more secret 5. 8 Ghz wireless web camera, wireless wiretap, and wire monitor.
- Ensure the privacy of your phone conversations up to a great extent
- Prevents eavesdropping, videotaping, fraud, protect personal privacy data and information confidential
- Dimensions:6*5*5cm
- Weight: 400gm
GPS Modem with External Antenna
- SiRF Star IVâ„¢, GSD4e ROM version
- Tracking sensitivity -163dBm, autonomous Acquisition sensitivity -148dBm
- TTL interface output
- 48 track verification channels
- Power supply 3.3 voltage
- SMT type with stamp holes
- Small form factor with embedded SiRF star iv technology
- Removes in-band jumbers up to 80dB-Hz, track up to 8CW jammers
- Excellent sensitivity for urban canyon and foliage environments.
GSM Modem Sim900
- Quad-Band GSM/ 850/900/1800/1900MHz
- Voice Communication Port
- On-Board Voltage Regulator
- Power/Single LED indication
- SMA Connector for Antenna connection
- Compatible with Arduino, raspberry pi, arm, avr, pic, 8051
- Power Supply 12v 1amp to 2 amps max
- Use in the area of full signal strength.
- Perfectly suited for GSM-based Microcontroller Projects (better than SIM300 and other GSM Modems)
- Option for connecting MIC and SPEAKER directly to GSM MODEM for calls (LINE IN also available)
- Supports communication through RS232 with DB9 Connector, TTL Pins and I2C Pins
- CALL SMS GPRS facility - MIC input, LINE input and SPEAKER output pinsX
GSM/GPRS/GPS SIM 808 IOT Modem
- Input voltage: 5V-12V DC Operation
- Working temperature:-40°C ~85°C
- Supply voltage range 3.4 ~ 4.4V
- Low power consumption
- Operation temperature:-40°C ~85°C
- Power supply: 3.4V ~ 4.4V
- Charging: Supports charging control for Li-Ion battery
- Quad-band 850/900/1800/1900MHz
- GPRS multi-slot class 12/10
- GPRS mobile station class B
- Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900MHz) – Class 1 (1 W @ 1800/1900MHz)
- Dimensions: 24*24*2.6mm
- Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
- Modem with Impedance Matching Layout.
- Fully Automatic Pick and Place Machine.
- On-board SMA connector for GSM antenna
- On-board UFL connector for External GSM Antenna
- On-board SMA & UFL connector for GPS Antenna
- Option to Connect Patch antenna or Active Antenna for GPS
- Onboard 3V3 Voltage regulator for GPS External Active Antenna
- Onboard Micro USB Connector for module firmware updation
- Automatic and Manual Start option (SMD Switch has provided for Manual Startup)
- LM39302 linear voltage regulator is used for provides a low-dropout, high-current output
- Onboard RMC connector for power supply
- Onboard RMC connector for audio interface
- On-board Connector for connecting 3.7V Li-Po battery
- Zener diode is used to prevent Accidental over voltage
- On board TXB0104 voltage level translator IC which helps us to interface with 2.8V to 5V microcontrollers’
- On board LED for power indication, Network and status.
- Header option for interfacing ADC, I2c,PWM
- Four 3MM Mounting Holes are Provided
- Flap Type SIM Card Connector
- On-board Anti-Static Protection IC
- Easy to Make and receive voice calls, Send and receive SMS messages
NRF24L01 Long Range
- Voltage: 3-3.6V (recommended 3.3V) V.
- Maximum output power: +20dBm.
- Power-down mode current: 4.2uA.
- Operating Range: 1Km.
- Transmission mode current(peak): 115mA
- Receiver Mode Current(peak): 45mA
- Power-down mode current: 4.2uA
- Sensitivity 2Mbps mode in received: -92dBm
- It uses 2.4GHz global open ISM band, with license free.
- SPI interface facilitates the communication with MCU I/O port.
- Support six-channel data reception.
- 2Mbit/s speed makes high-quality VoIP possible
- Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
- Supports 126 RF channels
- Onboard antenna for optimum performance
- Standard DIP type pinout for easy Interface through jumper wires or breadboard
- Small size: 16.5mm*45.5mm.
