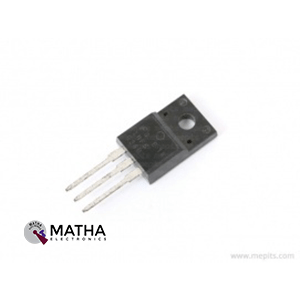

IRF634 N-Channel Mosfet Transistor 250V 8.1A
Original price was: ₹33.00.₹26.00Current price is: ₹26.00. inc. GST
Description
Low gate charge ( typical 29 nC)
Low Crss ( typical 20 pF)
Fast switching
100% Avalanche tested
Improved dv/dt capability
SPECIFICATIONS:
N-Channel Mosfet
Drain Current: ID= 8.1A at TC=25℃
Drain Source Voltage: VDSS = 250V
Static Drain-Source On-Resistance: RDS(on) < 0.45 Ω
Package: TO-220F
