PIR Motion Sensor LED Downlight
Specifications
-
Product Type: PIR Motion Sensor LED Downlight
-
Sensor Type: Passive Infrared (PIR)
-
Power Consumption: 6W / 9W / 12W (variant-based)
-
Operating Voltage: AC 220–240V, 50Hz
-
Detection Range: Up to 5–8 meters
-
Detection Angle: 120°
-
Light Color: Cool White / Warm White
-
Mounting Type: Recessed Ceiling
-
Material: Polycarbonate + Aluminium
-
Usage: Indoor Only
Upgrade your lighting with this PIR Motion Sensor LED Downlight, designed for smart and efficient indoor illumination. Built with a high-sensitivity Passive Infrared (PIR) sensor, the light automatically switches ON when human movement is detected and turns OFF after a preset time, saving power and enhancing convenience.
Its sleek recessed design blends seamlessly into modern interiors, making it ideal for homes, offices, stairways, washrooms, corridors, and commercial spaces. The durable LED ensures long life, stable brightness, and minimal maintenance.
Key Features
-
🚶♂️ Smart Motion Detection (PIR Sensor)
Automatically turns ON when motion is detected and OFF after inactivity—hands-free lighting convenience. -
💡 Energy-Efficient LED Technology
Low power consumption with high brightness, reducing electricity bills. -
⏱ Adjustable Sensor Range & Delay
Wide motion detection angle with optimal sensing distance for indoor spaces. -
🏠 Ideal for Multiple Applications
Perfect for staircases, corridors, bathrooms, balconies, parking areas, offices, and hallways. -
🔧 Easy Ceiling Installation
Recessed downlight design fits standard ceiling cut-outs; no extra wiring required.

Related products
Ceiling-mounted PIR motion sensor
Technical Specifications – PIR Motion Sensor (Ceiling Mounted)
| Parameter | Specification |
|---|---|
| Product Type | PIR Motion Sensor |
| Mounting Type | Ceiling Mounted |
| Detection Angle | 360° |
| Detection Range | Up to 6–8 meters |
| Detection Speed | 0.6 – 1.5 m/s |
| Operating Voltage | AC 220–240V, 50/60Hz |
| Load Capacity | ≤1200W (Incandescent) / ≤300W (LED) |
| Time Delay | Adjustable: 10 seconds – 7 minutes |
| Light Sensitivity | Adjustable: <3 – 2000 LUX |
| Sensor Technology | Passive Infrared (PIR) |
| Installation Height | 2.2 – 4 meters |
| Operating Temperature | –20°C to +40°C |
| Power Consumption | <0.5W |
| Housing Material | ABS Plastic |
| Color | White |
| IP Rating | IP20 (Indoor Use) |
| Application Area | Indoor |
| Certifications | CE / RoHS (Model dependent) |
PIR Motion Sensor – Ceiling Mounted (Thin Design)
Technical Specifications
-
Sensor Type: Passive Infrared (PIR)
-
Mounting: Ceiling (Flush Mounted)
-
Detection Angle: 360°
-
Detection Range: Up to 6–8 meters
-
Operating Voltage: AC 220–240V, 50/60Hz
-
Load Capacity:
-
Incandescent: Up to 800W
-
LED / CFL: Up to 300W
-
-
Time Delay: Adjustable (10 sec – 7 min approx.)
-
Ambient Light Control: <3–2000 Lux (Adjustable)
-
Material: ABS Plastic
-
Color: White

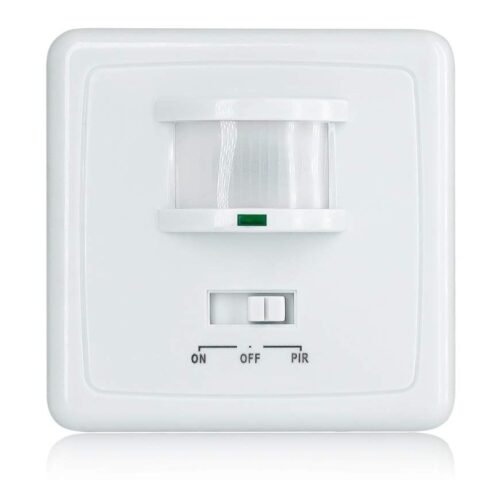

PIR Motion Sensor – Wall Hanging
PIR Motion Sensor Module with Hidden Push Button
Specifications
-
Sensor Type: PIR (Passive Infrared)
-
Detection Range: Up to 5–7 meters (typical)
-
Operating Voltage: 3V – 5V DC
-
Output Type: Digital
-
Button Type: Hidden Push Button
-
Current Consumption: Low Power
-
Operating Temperature: -20°C to +60°C
-
Board Size: Compact Mini Module
Applications
-
Smart Home Automation
-
Motion-Activated Lighting
-
Intruder Alarm Systems
-
IoT Projects
-
Arduino & Raspberry Pi Projects
-
Energy-Saving Devices
PIR Motion Sensor Module with Portable Wire
Specifications
-
Sensor Type: Passive Infrared (PIR)
-
Detection Distance: Up to 6–7 meters
-
Detection Angle: ~120°
-
Operating Voltage: 5V DC
-
Output Type: Digital (High/Low)
-
Wire Type: Portable pre-attached cable
-
Operating Temperature: -20°C to +60°C
Applications
-
Motion-activated lights
-
Security & alarm systems
-
Smart home automation
-
Arduino & Raspberry Pi projects
-
Robotics & IoT development
