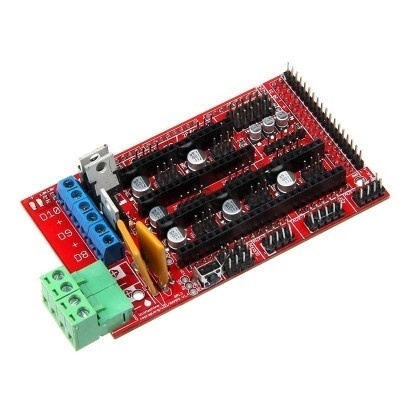

Ramps 1.6 For 3D Printer Parts
Original price was: ₹800.00.₹700.00Current price is: ₹700.00. inc. GST
- Input voltage: 12V.
- Power: 200W.
- Patch MOS tube: B55NF06.
- Ramps 1.6 is a 4-layer board.
- Can be extended to LCD and other parts.
- There are heater and fan MOSFET outputs and 3 thermistor interfaces
- Support motor drivers: support A4988 DRV8825 and other motor drivers(support five motor drivers Simultaneously).
- 5A additional security and component protection fusion.
- Heated bed controls additional 11A fuses.
- Applied to 5 Pololu stepper drive board.
- Design of Pololu plate pin socket can be easily replaced or removed for future design.
- I2C and SPI pins are available for future expansion.
- Servo connectors are used for connecting limit stops, motors and light-emitting diodes.
- LED will light when the heater has output, choose 2 motors to connect to Z Prusa Mendel.
- Dimension: 101.5 * 60.5mm
Description
RAMPS 1.6 is optimized and designed based on RAMPS1.4 by Biqu R & D team. RAMPS 1.6 interface board has a more powerful SMT MOSFET driver (up to 218W). The Structure of RAMPS 1.6Â almost the same as Ramps 1.5. The difference is Ramps 1.6 has new 2pin connectors. This is more simple and convenient to connect, also will not be burnt easily. These connectors designed as gold-plated and have a rated current of 3A, which is very compact.
Ramps 1.6 consists of a good Heatsink above the MOS tube in order to give a better function to heat dissipation. They change the original plug-in MOS tube to a patch-type MOS tube in order to solve the problem of plug-in MOS. The RAMPS 1.6 become a control board with powerful upgrade capability and scalable modularity due to its multiple extended interface and replaceable parts functions. It works as a controller board when the pins on the back of the board connected to the Arduino Mega and the front connected to stepper motor drives.
This module can Supports up to 5 motor drivers with the standard A4988 / DRV8825 Pololu interface. Moreover, this Simple and convenient Connection provides larger power than Ramps 1.5/1.4. Thereby offers better Heat Dissipation with a heat sink. RAMPS1.6 features multiple extended interface and replaceable parts. Thus make RAMPS1.6 functions as a control board with powerful upgrade capability and scalable modularity. A 5A additional security and component protection fusion is provided.
Note:
- Please don’t need to insert short-circuit cap under the driver When you plug in the TMC2100 driver,
- Compared to all drivers, TMC2130 is the quietest, no matters whether it is ramps 1.5 or ramps 1.6
