Thermostat Sensor 100D
Original price was: ₹150.00.₹90.00Current price is: ₹90.00. inc. GST
CA-3110 Dual Channel Stereo Class Amplifier Board
Original price was: ₹200.00.₹150.00Current price is: ₹150.00. inc. GST
XL4432 LORA Sensor Module
Original price was: ₹700.00.₹650.00Current price is: ₹650.00. inc. GST
- Frequency range: 433.92M
- High sensitivity up to-121dBm
- Maximum output power: 20dBm
- Data transfer rate: 0.123-256 kbps
- FSK, GFSK, and OOK modulation mode
- 1.8-3.6V power supply
- Ultra-Thin Power Off Mode
- Digital signal strength indicator received (RSSI)
- Synchronization alarm function
- Automatic antenna connection and bidirectional switch control
- The configurable data package structure
- Before sync signal detection
- 64 bytes RX data record (FIFO)
- Low power tests
- Temperature detection and 8-bit analog to digital converter
- Operating temperature range: -20 ~ + 60 C
Out of stock
Description

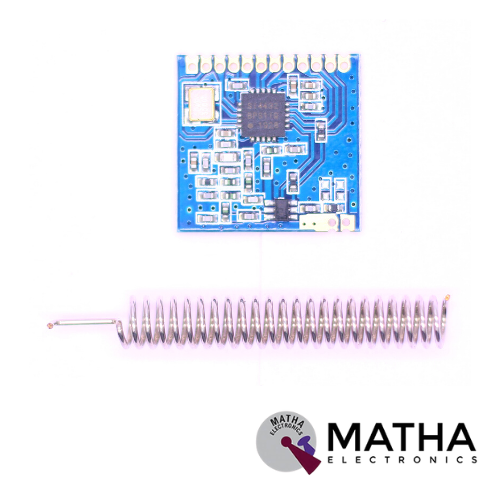

The XL4432-SMT wireless module is designed by Silicon Labs’ Si4432 B1 Edition chip, which is a complete, compact, low-power wireless transceiver module. Si4430/31/32 devices are highly integrated single-chip wireless transceivers that operate on the ISM band in the 240-960 MHz frequency range and have a very high reception sensitivity (-121 dBm), and maximum output power of +20 dBm. The SI4432 is an ISM band wireless chip from the Silicon Labs Corporation’s EZRadioPRO series, which was released in 2009. The module unifies all RF-related functions and devices, allowing customers to construct stable and dependable wireless-related products without having to learn the essential radio knowledge.
This XL4432 LoRa Sensor Module integrates all RF-related functions and devices, in which users do not need to understand the relevant knowledge of radio. Hence this module can be used to easily develop stable and reliable wireless related products.
Applications:
- Remote control
- Remote reading meter
- Home security alarm and remote keyless entry
- Industrial Control
- Automation and telemetry
- The data records
- Control toy
- Sensor network
- Pressure control
- Health surveillance
- Wireless PC peripheral equipment
- The label read/write device
