4.7uf 400V DC Axial Capacitor
89S52 Atmel Microcontroller IC
- Core Processor: 8051
- Data Bus Width: 8 bit
- Maximum Clock Frequency: 33 MHz
- Program Memory Size: 8 KB
- Program Memory Type: Flash
- RAM Size: 256 B
- ADC: No
- Number of Programmable I/Os: 32
- Number of Timers: 3
- Supply Voltage Range: 4 V to 5.5 V
- Package: PDIP
- 4K Bytes of In-System Programmable (ISP) Flash Memory – Endurance: 1000 Write/Erase Cycles
- 0V to 5.5V Operating Range
- Fully Static Operation: 0 Hz to 33 MHz
- Three-level Program Memory Lock
- 128 x 8-bit Internal RAM
- 32 Programmable I/O Lines
- Two 16-bit Timer/Counters
- Six Interrupt Sources
- Full Duplex UART Serial Channel
- Low-power Idle and Power-down Modes
- Interrupt Recovery from Power-down Mode
- Watchdog Timer
- Dual Data Pointer
- Power-off Flag
- Fast Programming Time
- Flexible ISP Programming (Byte and Page Mode)
16 Pin ZIF Socket
PIC18F4520 Microcontroller IC
- Maximum CPU Frequency: 40 MHz
- Architecture: 8 bit
- Program Memory (Flash): 32 kB
- RAM: 1536 byte
- Internal Oscillator: 8MHz, 32 KHz
- ADC: 1 (13 channels)
- of Pins: 40
- Voltage: 2V - 5.5V
- C Compiler Optimized Architecture: - Optional extended instruction set designed to optimize re-entrant code
- 100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical
- 1,000,000 Erase/Write Cycle Data EEPROM Memory Typical
- Flash/Data EEPROM Retention: 100 Years Typical
- Self-Programmable under Software Control
- Priority Levels for Interrupts
- 8 x 8 Single-Cycle Hardware Multiplier
- Extended Watchdog Timer (WDT): - Programmable period from 4 ms to 131s
- Single-Supply 5V In-Circuit Serial Programming™ (ICSP™) via Two Pins
- In-Circuit Debug (ICD) via Two Pins
- Wide Operating Voltage Range: 2.0V to 5.5V
- Programmable Brown-out Reset (BOR) with Software Enable Option
2A SPST ON OFF Slide Switch
221pf 2KV High Voltage Disc Capacitor

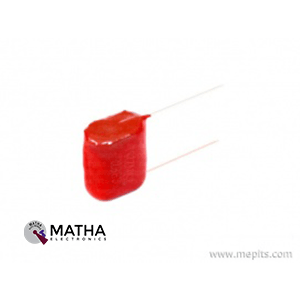

2.2uf 250V DC Polyester Capacitor
- Capacitance: 2.2uf
- Voltage Rating DC: 250 V
- Tolerance: +/-5%
- Mounting: THT
- Leakage Current: 3 uA
- Dimensions:31*6*2.5 mm
- Operating Temperature: -40~85 C
- Lead Spacing: 7mm
- Lead Diameter : 0.5mm
- Non-inductive, epoxy DIP coated, high moisture resistance.
- The dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like an s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance
CD4099 8-Bit Addressable Latch IC
- 8 Bit Addressable Latch
- Supply Voltage Range: 3 to 20V
- Input Current: ±10mA
- Power Dissipation : 200mW
- Quiescent Current Max. : 100µA
- Low level Output Voltage: 0.05V
- High-level Output Voltage Min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Propagation Delay Time Max.: 450ns
- Package: DIP-16
