WS2812 LED BREAKOUT BOARD
- Input Voltage: -0.5~VDD+0.5V
- Supply voltage: 5v
- Operating voltage: 4v -7v
- Integrating control circuit and RGB chip
- Built-in signal reshaping circuit
- Built-in electric reset circuit and power lost reset circuit
- 256 brightness and 16777216 colour display
- Viewing angle: 120 degree
- Cascading port transmission signal
- Red Vf: 1.8~2.2V
- Green Vf: 3.0~3.2v
- Blue Vf: 3.2~3.4V
- Red Wavelength: 620~630 nm
- Green Wavelength: 515~530 nm
- Blue Wavelength: 465~475 nm
- Red luminous intensity(20mA): 550~700mcd
- Green luminous intensity(20mA): 1100~1400mcd
- Blue luminous intensity(20mA): 200~400mcd
- Dimension: 1.8*1.3*0.8mm
TB6560 4 Axis Stepper Motor Driver
- Driver Chip: TB6560AHQ
- Operating Voltage: 10-35V
- Nominal Voltage: 24V
- Stepper motor drive current: 1.5A - 3A/phase
- With the large heat sink to ensure good heat dissipation
- Double-pole constant flow PWM actuation output
- 6N137 high-speed OptoCoupler, to ensure a high speed without stepping out.
- Compatible Stepper motors: 2/4 Phase, 4/6/8 leads stepper motors within 3.5A
- 1 - 1/16 micro step setting - higher accuracy, smoother operation
- Full closed-type optical isolation to protect the user's computer and equipment
- Professional design, two-stage signal processing, super anti-jamming
- Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region
- Four input control
-
4-axis Flight Control Sensor HMC5883L BMP085 MWC GY-651
- Model: GY-651
- Use the chip: HMC5883L + BMP085
- Power supply:3-5v (internal low dropout regulator)
- Size: 13.5mm * 15.8mm (pin spacing standard 2.54mm)
- Communication modes: standard IIC communication protocol
- Magnetic field range: ± 1.3 to ± 8.1 gauss
- Pressure range: 300-1100hPa
- Chip 12bit AD converter, 16-bit data output Machine welding process to ensure quality
- Size: 18mmx14mm
Infrared Ir Obstacle Avoidance Detector Sensor Module Adjustable 2-180cm
- Power requirements: 5 VDC
- Communication: Digital High/Low Output
- A variety of welding methods, vertical and horizontal, to expand the scope of application
- Add precision potentiometer to adjust infrared 38KHz detection range
- Sensor detection with enabling the port, convenient signal line as bus application line
- Power-on enable port default level, the sensor enables the detection output signal
- Detection range up to 1.2 meters
- Software enhancement, setting can avoid infrared light interference of the same module or other kinds of infrared remote control devices
- Working condition of each module recorded with EEPROM, reduce the probability of mutual interference of the same paragraph to 1%
- Signal low output
- Pin SIP header, applied in breadboard or through-hole project
- On-board set jumper JP, the signal output has a latch function when shorted, otherwise, it is jog output
- Operating temperature: 32 to 158 ° F (0 to +70 ° C)
- Size: 2.4cm × 2.8cm
Leap Motion Controller
- Power supply: 5V DC via USB connector (minimum 0.5A)
- Data connection: USB 2.0
- Interaction zone: Depth of up to 60cm (24”) preferred, up to 80cm (31”) maximum;
- 140×120° typical field of view.
- 3 LEDs spaced on either side and between the cameras, baffled to prevent overlaps.
- Construction: Aluminium and scratch-resistant glass
- Operating temperature: 32º to 113º F (0º to 45ºC)
- Storage temperature: 14º to 122º F (-10º to 50º C)
- Relative Humidity: 5% to 85% (non-condensing)
- Two 640x240-pixel near-infrared cameras; spaced 40 millimetres apart infrared-transparent window, operate in the 850 nanometre +/-25 spectral range; typically operates at 120Hz; capable of image capture within 1/2000th of a second.
- Highly accurate hand and finger tracking with near-zero latency
- 135° field of view extending above the device
- Orion SDK compatible with Windows 7 or newer
- Updated V4 tracking
Bluetooth TTL HC05 HC06 Compatible Module
- Bluetooth protocol: Bluetooth Specification v2.0+EDR
- Frequency: 4GHz ISM band
- Profiles: Bluetooth serial port TTL out
- Sensitivity: ≤-84dBm at 0.1% BER
- Modulation: GFSK(Gaussian Frequency Shift Keying)
- Security: Authentication and encryption
- Working temperature: -20 ~ +75 Centigrade
- Power supply: +3.3V-5V DC 50mA
- Profiles: Bluetooth serial port
- 3 mm screw drive hole, easy to mount it on somewhere
- UART interface with programmable baud rate
- Push switch for issuing AT command
- VCC GND OUT uses 2.54mm standard pins to ease the connections.
- 2 No LED for Communication and Status
- With integrated antenna
- With edge connector
HC-05 Bluetooth Bee Master BEE05
- Power supply: 3.3V
- A power supply of more than 3.3V will destroy the module.
- Paring user’s name: HC-05
- Default baud rate: 38400
- Default slave model
- Default pairing password: 1234
- This module was designed for XBEE so it’s compatible with the XBEE expansion base. This module was designed for XBEE so it’s compatible with the XBEE expansion base.
- It can be used for an MCU system whose voltage is 3.3V.
- Users can set master-slave model, baud rate, paring password, and user’s information by AT command.
- Bluetooth adapter pairs with Bluetooth Bee salve device.
- With an efficient onboard antenna, the exposed antenna qualifies the transmit signal and makes it farther.
- Dimension: : 3.3 x 2.5 x 0.9 cm
- Weight: 5g

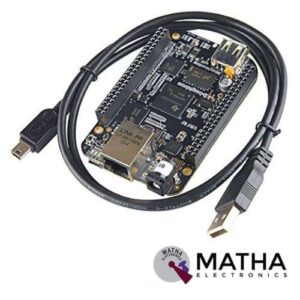

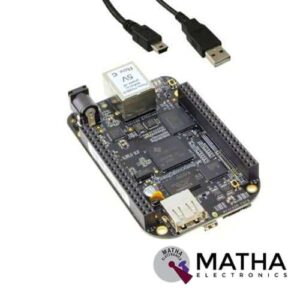

BeagleBone Rev C with 4GB Flash Memory
- Beaglebone black is a development kit based on an AM3359 processor which integrates an ARM Cortex A8 core and has abundant peripheral devices.
- The beagle bone rev is designed to satisfy the different requirements of various fields including game devices, home, industrial automation, and consumer medical devices.
- It comes with a 4GB flash memory and is preloaded with Debian Linux.
- Beaglebone black provides lots of expansion interfaces such as Ethernet, USB Host, OTG, TF card, serial, HDMI D type, I2C, SPI, PWM, and LCD.

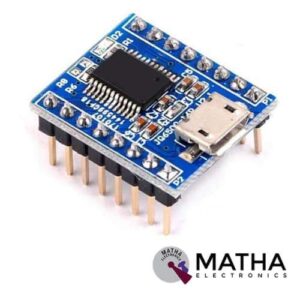

JQ6500 Voice Sound Module 16Mbit Music MP3 Play MCU Serial Control Module UART SPI Flash
- Input voltage: Power supply is at 3.2V-5V, 4.2V Power supply is the best
- Rated current: 20ma
- Standard DIP16 package.
- 30 level adjustable volume, 10 adjustable EQ
- Working temperature: -40~70°C
- Humidity: 5%~95%
- Support sampling rate (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
- 24-bit DAC output,
- dynamic range support 90dB, SNR support 85dB
- Full support FAT16, FAT32 file system, the largest support 32G TF card, support 32G U disk, 64M bytes NOR FLASH
- A variety of control mode, parallel port control mode, serial port mode, AD button control mode
- The audio data sorted by folder, up to 100 folders, every folder can be assigned 1000 songs
- You can plug in SPI flash, connect the computer can display spi flash letter to update the content;
- Controlled through the microcontroller serial port to play the specified music;
- Can be interrupted: that is, in the process of playing, press the button will interrupt the current state to perform the new;
- MP3 file format: supports all bit rates 11172-3 and ISO13813-3 layer3 audio decoding
AMS1117 5V POWER SUPPLY MODULE
• Input: DC 6.5V – 12V (input voltage must be more than the output voltage (more than 1V))
• Output: 5V, 800mA (load current cannot exceed 800mA)
• Onboard AMS1117 chip.
• Onboard power indicator to indicate power is turned on: Red LED.
• Output voltage interface, connection to facilitate the experimental.
• Specially designed two pin mounting holes, can be directly fixed on the whole expansion board for experiments.
• Small Compact Size, 4Pin Type, Breadboard Friendly.
• 2P single row pin input and output for easy connection
• Dual-panel design, the layout is nice
3W LED Module High-Power with PCB Chassis for Arduino STM32 AVR
- Type: LED High Power Board
- Forward voltage: 3.3 – 3.6 V
- Reverse voltage: 5V
- Power: 3W
- Viewing angle: 180°
- Mainly Compatible with: Arduino
- 3W LED High Power Board for Indoor / Outdoor Display
- Colour temperature: Warm White 3000-3200K / white 6000-6500K
- Forward current: 700MA
- Luminous flux: White 180-200LM (lumens) , Red 90-100LM (lumens) , Green 80-90LM (lumens)
- Long life
- small size
- Material: PCB
