Pixy2 CMUcam5 Smart Vision Sensor – Object Tracking Camera for Arduino, Raspberry Pi, BeagleBone Black
- Pixy2 detects lines, intersections and small barcodes, intended for line-following robots.
- Improved framerate – 60 frames-per-second.
- Tracking algorithms have been added to colour-based object detection.
- Improved and simplified libraries for Arduino, Raspberry Pi and other controllers
- Integrated light source.
- The small, fast, easy-to-use, low-cost, readily-available vision system
- Learns to detect objects that you teach it
- Connects to Arduino with the included cable. Also works with Raspberry Pi, BeagleBone and similar controllers.
- Supports C/C++ and Python
- Communicates via one of several interfaces: SPI, I2C, UART, USB or analogue/digital output.
- Configuration utility runs on Windows, macOS, and Linux.
- All software/firmware is open-source GNU-licensed.
- Dimensions: 43mm x 39mm x 16mm
- Height of Camera: 4mm / 0.16""
- Weight (no IDC cable, no screws): 10g.

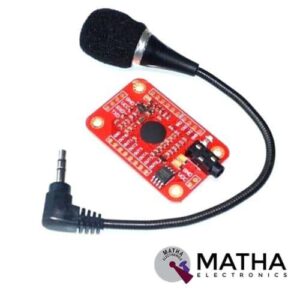

Speech Recognition Module
- Working voltage: 3.3/5V
- Local Voice Recognition
- Very low rate of false triggering
- Speaker connector(JST2.0, the speaker is not included)
- Built-in microphone
- 22 recognition entry
- Default Baud rate: 9600
- Flash: 2Mbytes
- Microphone Sensitivity: -40dB
- Microphone SNR: 58dB
- Operating temperature: 0 – 85 degrees C
Black 2M Usb 6 Led Waterproof Borescope Endoscope Inspection Tube Camera
Fingerprint Scanner TTL GT511C3 – 3.3V to 6V
- Model: GT-511C3
- Operating Voltage(VDC): 3 to 6
- CPU: ARM Cortex M3 Core (Holtek HT 32F2755)
- Sensors: Optical
- Image Size: 202 x 258 Pixel
- Resolution: 450 DPi
- Effective Scanning Area(mm): 20 x 16
- False Acceptance Rate (FAR): 0.001%
- False Rejection Rate(FRR): < 0.1%
- Operating Temperature : -20°C ~ +60°C
- Default Baud Rate: 9600bps
- High-Speed, High-Accuracy Fingerprint Identification using the Smack Finger 3.0 Algorithm
- Read and Write Fingerprint Templates and Databases
- Simple UART protocol (Default 9600 baud)
- Capable of 1:1 Verification and 1:N Identification
- High-accuracy & high-speed fingerprint identification technology.
- Works well with dry, moist, or rough fingerprints.
- 200 fingerprints storage.
- Easy one-touch enrolment.
- Dimensions(mm): 37 x 17 x 9.5
- Weight: 6gm
Finger print Scanner Module – TTL (GT-521F32)
- Operating Voltage: 3.3V to 6V DC
- Simple UART & USB communication protocol.
- Complies with USB 2.0 full-speed specification.
- Ultra-thin optical sensor.
- Finger window: 12.9 x 16.9 mm.
- Image Size: 258 x 202 Pixels.
- Resolution 450 dpi.
- Capable of 360° recognition.
- Storage for 200 unique fingerprints.
- False Acceptance Rate (FAR): <0.001%
- False Rejection Rate (FRR): <0.01%
- Wake up on Finger Function.
- CPU: ARM Cortex M3 Core MCU).
- Ultra-thin Optical Sensor.
- Works well with dry, moist or rough fingerprints
- Anti-scratch with surface high hardness ≧5
- 1:1 verification, 1:N identification.
- High accuracy and high-speed fingerprint identification technology.
- External UART-to-USB converter required (TX & RX levels: 3.3V).
EMG Sensor / Muscle Sensor Module For Arduino
- Power Supply: Normally ±9V dual power supply, the minimum voltage is ±3.5V
- The diameter of the Electrode Pad: 52 mm
- Cable Length: 2 feet
- Improved adjustable gain (more rugged)
- 5mm connector
- On-board port for new cables Connects to the board straight out of the box
- Supported with Arduino, Breadboard mountable
- Weight: 30gm.
GY-906 MLX90614ESF Contactless Temperature Sensor Module
- Small size, low cost
- Mounted on a breakout board with two types of pins
- 10k Pull up resistors for the I2C interface with optional solder jumpers
- Easy to integrate
- Factory calibrated in wide temperature range:
- Sensor temperature: -40...+125°C
- Object temperature: -70...+380°C
- High accuracy of 0.5°C over the wide temperature range
- (0...+50°C for both Ta and To) High (medical) accuracy calibration
- The measurement resolution of 0.02°C
- Single and dual-zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuousreading
- Simple adaptation for 8...16V applications
- Sleep mode for reduced power consumption
R305 Optical Fingerprint Reader Sensor Module
- Power DC: 3.6V-6.0V
- Interface : UART (TTL logical level)/ USB 1.1)
- Working current: 100mA
- Peak Current: 150mA
- Matching mode (1: 1)
- Search method (1: N)
- Connecting cable length (cm): 8.5
- Baud rate (9600*N)bps, N=1-12 (default N=6 57600bps)
- Character file size: 256 bytes
- Image acquiring time: <0.5s
- Template size: 512 bytes
- Storage capacity: 256
- FAR : <0.001%; FRR: <0.1%
- Average searching time: < 0.8s (1:880)
- Working environment: Temp: -10degree to +40degree C
- Storage environment Temp: -40degree to +85degree C
- RH: 40%-85% RH: <85%
- Integrated image collecting and algorithm chip together, ALL-in-One.
- Low power consumption, low cost, small size, excellent performance.
- Professional optical technology, precise module manufacturing techniques.
- Good image processing capabilities can successfully capture an image up to a resolution of 500 dpi.
- Window dimension : 18mm*22mm
- Optical module: 49 x 20 x 21.20 mm
- Touch Sensors: 18 x 14.5 mm.
- Weight: 16gm

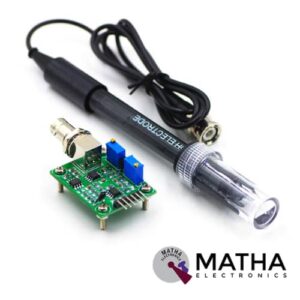

pH Sensor Module & pH electrode Probe for Arduino, AVR, PIC
- Module Power: DC 5.00V.
- Measuring Range: 0-14PH.
- Accuracy: 0.01 pH
- Response Time: ≤ 1min.
- Industry pH Electrode with BNC Connector.
- Power Indicator LED.
- Output: Analog values in the range of (0.5V to 3V).
- Alkali Error: 0.2PH.
- Internal Resistance: 250MOhm.
- Gain adjustment Potentiometer.
- Measuring Temperature: 0 degrees to 50 degrees C
- Terminal Blocks: BNC plug.
- BNC Connector is suitable for most pH meters and controllers.
- Suitable for a wide range of applications: Aquariums, Hydroponics, Laboratory etc.
- Module Size: 50 x 47 x 16mm
Xbee Pro S2C Module XBP24CZ7WIT-004
- Operating voltage: 2.7V-3.6V
- Max data rate: 250kbps
- 63mW output (+17dBm)
- Range: 1 mile (1600m)
- ADC Channels: 6 10-bit ADC input pins
- Digital I/O: 8
- 128-bit encryption
- Transmit Current: 120mA at 3.3VDC
- Receive current: 31mA at 3.3VDC
- Data Rate: RF 250Kbps, serial up to 1Mbps
- Indoor/urban range up to 300ft (90m)
- outdoor/RF line of sight range up to 2miles (3200m)
- Transmit power is 63mW (+18dBm)
- Receiver sensitivity is -101dBm
- Local or over-air configuration
- AT or API command set
- External Antenna Required
- Firmware upgrades via UART, SPI or over the air (OTA)
- ISM 2.4GHz frequency band, DSSS (direct sequence spread spectrum) interference immunity
- Dimension: 2.438cm x 3.294cm
RP203 Thermal printer with case 5V
- Model RP203 Thermal Printer Panel
- Print method: Direct thermal print and auto paper feed.
- Printing Width: 48 MM.
- Max Printer Speed: 85 mm/s (max).
- Printer Interface: TTL/RS232,
- Command System: ESC/ WH,
- Working Voltage: DC3.3V-9V,15V,
- Rich graphics/curve/text printing function,
- Printing head lifespan: >50KM,
- Paper Type: Thermal paper (With 58mm, Thickness 65+5um, diameter 35mm),
- Printer dimension: 76.8*77.4*43.5mm(w*h*d),
