TOP223Y Offline PWM Switcher IC
- Supply Current: 1.2 mA
- Supply Voltage: 85-265VAC
- Output Voltage: 5.7 V
- Power (Watts): 50W
- Switching Frequency: 100 kHz
- Lowest cost, lowest component count switcher solution
- Cost competitive with linears above 5 W
-  Very low AC/DC losses – up to 90% efficiency
- Â Built-in Auto-restart and Current limiting
- Â Latching Thermal shutdown for system level protection
- Implements Flyback, Forward, Boost or Buck topology
- Â Works with primary or opto feedback
- Â Stable in discontinuous or continuous conduction mode
- Â Source connected tab for low EMI
- Â Circuit simplicity and Design Tools reduce time to market
- Package: TO-220
CD4089BE CMOS Binary Rate Multiplier IC
TOP243YN Off-line Switcher IC

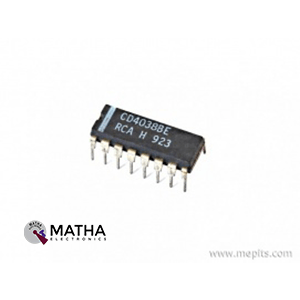

CD4038BE CMOS Triple Serial Adder IC

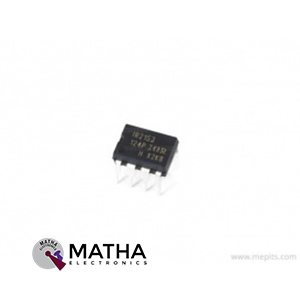

IR2153 Self-Oscillating Half-Bridge Driver IC
- Self-Oscillating Half-Bridge Driver
- High Side Floating Supply Voltage Max.: 625V
- Supply current Max.: 5mA
- Clamp Voltage Max.: 16.8V
- High level output voltage Max.: 100mV
- Low level output voltage Max.: 100mV
- Total Power Dissipation: 1W
- Oscillator frequency Max.: 106kHz
- Rise Time Max. : 150ns
- Fall Time Max.: 100ns
- Integrated 600V half-bridge gate driver
- 15.6V zener clamp on Vcc • True micropower start up
- Tighter initial deadtime control
- Low temperature coefficient deadtime
- Shutdown feature (1/6th Vcc) on CT pin
- Increased undervoltage lockout Hysteresis (1V)
- Lower power level-shifting circuit
- Constant LO, HO pulse widths at startup
- Lower di/dt gate driver for better noise immunity
- Low side output in phase with RT
- Internal 50nsec (typ.) bootstrap diode (IR2153D)
- Excellent latch immunity on all inputs and outputs
- ESD protection on all leads
- Also available LEAD-FREE
- Package: DIP-8
5Q1265 Power Switch IC
- Power Switch
- Drain Voltage: 650V
- Drain Current: 28A
- Supply Voltage: 40V
- Supply Current: 18mA
- Precision fixed operating frequency (100/67/50kHz)
- Low start-up current (typ. 100µA)
- Pulse by pulse current limiting
- Over-current protection
- Overvoltage protection (Min. 25V)
- Internal thermal shutdown function
- Under voltage lockout
- Internal high voltage sense FET
- Auto-restart mode
DLO165 Power Switch IC
- Power Switch
- Supply Voltage Max.: 20V
- Total Power Dissipation: 1.25W
- Drain-Source Voltage: 650V
- On-State Resistance Max.: 10Ω
- Rise Time : 4ns
- Rise Time: 10ns
- Output Frequency Max.: 55KHz
- Duty Cycle Max.: 83%
- Operating Current Max.: 5mA
- Over Voltage Protection Min.: 18V
- Precision fixed operating frequency (100/67/50kHz)
- Low start-up current (typ. 100µA)
- Pulse by pulse current limiting
- Over-current protection
- Overvoltage protection (Min. 25V)
- Internal thermal shutdown function
- Under voltage lockout
- Internal high voltage sense FET
- Auto-restart mode
L298N Dual Full-Bridge Driver IC
- Dual full-bridge driver
- Operating Supply Voltage up to 46V
- Total DC Current up to 4A
- Low Saturation Voltage
- Over Temperature Protection
- Logical "0" Input Voltage up to 1.5V (High Noise Immunity)
- Power Supply:Â 50V
- Logic Supply Voltage:Â 7V
- Input and Enable Voltage:Â -0.3 to 7V
- Non Repetitive Peak Output Current:Â 3A
- Total Power Dissipation: 25w
L297 Stepper Motor Controller IC
L293D Push-Pull Four Channel Driver IC
- Push-Pull Four Channel Driver with Diodes
- 600mA Output Current Capability Per Channel
- 1.2A Peak Output Current (Non Repetitive) Per Channel
- Over Temperature Protection
- Internal Clamp Diodes
- Supply Voltage:Â 36V
- Enable Voltage:Â 7V
- Peak Output Current:Â 1.2A
- Total Power Dissipation:Â 4W
- Output Current:Â 600mA
- Package:Â DIP-16
CD4016 Quad Bilateral Switch IC
IRS2110 High and Low Side Driver IC
- High Side Floating Supply Voltage Max.: 520V
- Logic 1 input voltage Min.: 9.5V
- Logic 0 input voltage Max.: 6V
- High level output voltage Max.: 1.2V
- Low level output voltage Max.: 0.15V
- Total Power Dissipation: 1.6W
- Propagation delay Max.: 160ns
- Rise Time Max.: 35ns
- Fall Time Max.: 25ns
- Package: DIP-14
