Robotic & Learning kits

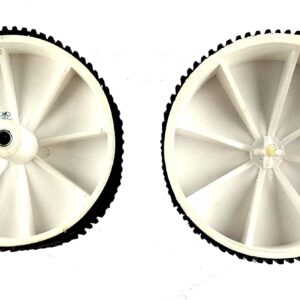

Robot Wheel 10cm Dia. x 2cm Width
Robot Wheel for Track Belt – 6mm Shaft 100 x 2mm Black
1045(10×4.5) SF Propellers Black
- Length: 10″.
- Pitch: 4.5″.
- Weight: 14 gm.
- Shaft Diameter: 6 mm.
- Total length: 10 inch / 254 mm.
- Color-Black
- No of Blades-2
- Plastic Reducers-2.75, 3, 3.17, 4, 4.70, 5, 6, 6.25
- Quick to release, quick to attach
- Comes with thin and wide blades
- 1045(10×4.5) SF Propellers Black features an epoxy resin cover
- New design propellers, with greater aerodynamic efficiency, good lifting capacity.
- A set of 2 x 1045 Propellers. The set includes one clockwise rotating and one counter-clockwise rotating propeller with 2 x propeller shaft adapters.
- Dimensions-30 x 6 x 4 cm
- Weight(gm)-28
DC 3.7V Coreless Motor + Propeller 7×20
Robot Wheel – 100 x 2mm – 6mm Shaft Black
8045(8X4.5) Propeller
- Length: 8″
- Pitch: 4.5″
- Weight: 36.5g
- Shaft Diameter: 6mm
- Total Length: 177mm
- Material: ABS
- Durable plastic construction provides both lightness and rigidity.
- Â 1245(12X4.5) Carbon Fiber Black comes with an Epoxy resin cover.
- Very strong and lightweight.
- Includes set of plastic reducers (3, 3.17, 4, 4.70, 5, 6, 6.25 mm).
- Quick to release, quick to attach
- New design propellers, with greater aerodynamic efficiency, good lifting capacity.
- Dimensions: 30 x 6 x 4 cm
- Weight: 25gm
Motor for Micro FPV RC Quadcopter
ULTRASONIC SENSOR FIXING BRACKET
Robot Wheel for BO Motor – 62x25mm – Yellowa
KK-Mini FLIGHT CONTROLLER
- IC:Â Atmega644 PA
- Gyro/Accelerometer: Auto-level:Â Yes
- Input Voltage:Â 4.8-6.0V
- AVR interface: standard 6 pins.
- The signal from Receiver: 1520us (5 channels)
- Signal to ESC: 1520us
- LCD size: 24*18mm
- Mini buttons size: Four 3.3*4.2mm
- Mounting holes: 30.5x30.5mm
- Voltage sensor:Â One red positive pin header for.
- Input rail:Â Single row 2.54mm pitch pin header for input signal
- Firmware Version: 1.6
- Dimension: 36x36x11.5mm
Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot
- The advanced 32-bit ARM CortexM4 high-performance processors; can run NuttX RTOS real-time operating system.
- 14 PWM / servo output.
- Bus interface (UART, I2C, SPI, CAN).
- The integrated backup power and backup controller fails; the primary controller fails over to the backup control is safe.
- Provide automatic and manual modes.
- Provide redundant power input and failover.
- Multicolor LED lights.
- Provide a multi-tone buzzer Interface.
- Micro SD card to record flight data.
- 32bit STM32F427 Cortex M4 core with FPU.
- 32-bit STM32F103 failsafe co-processor.
- 168 MHz.
- 128 KB RAM.
- 2 MB Flash.
- ST Micro L3GD20H 16 bit gyroscope.
- ST Micro X4HBA 303H 14-bit accelerometer/magnetometer.
- Invensense MPU 6000 3-axis accelerometer/gyroscope.
- MEAS MS5607 barometer.
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2*CAN
- Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC
- input External USB MICRO interface
- Color:Black
- Size: 50x81x16mm
