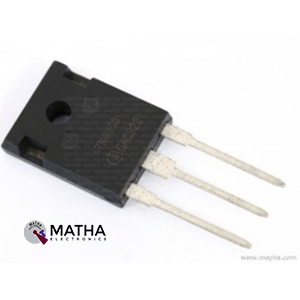

47N60 Mosfet Transistor 650V 47A

₹212.00 ₹200.00 inc. GST

  • New revolutionary high voltage technology
  • Worldwide best RDS(on) in TO 247
  • Ultra low gate charge
  • Periodic avalanche rated
  • Drain Current: ID= 47A at TC=25℃
  • Drain Source Voltage: VDS = 650V
  • Static Drain-Source On-Resistance: RDS(on) < 0.07 Ω
  • Package: TO-247

Out of stock

Notify me

Compare
Add to wishlist
Categories: Components, Electronic Components & Hardwares, Mosfets Tags: 47N60, 47N60 Mosfet Transistor 650V 47A, 650V 47A, Mosfet, Transistor
Share
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

These 47N60 N-Channel enhancement mode power field-effect transistors designed based on Silicon N Channel MOS Type. 47N60 is simply a three-terminal silicon device with, high voltage and high current power MOSFET, designed to have better characteristics, such as fast switching time. This advanced technology specially tailored to reduce minimize on-state resistance while providing high rugged avalanche characteristics, reliable, and fast switching performance. These devices are compatible for speed switching applications in power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits based n half-bridge topology. Moreover, 47N60 feature minimum Lot-to-Lot variations for robust device performance and reliable operation.

47N60 N-Channel Mosfet Transistor manufactured in TO-47 package that is universally accepted for all commercial-industrial applications. 47N60 provides a Drain Source Voltage of 650V at a drain current 47A. These MOSFET Transistors designed explicitly to achieve extremely low on-resistance per silicon area and lower gate charge performance. This feature makes this device ideal for use as a primary switch in advanced high-efficiency isolated DC-DC converters.

A MOSFET designed as a special type of metal–oxide–semiconductor field-effect transistor (MOSFET) explicitly to handle significant power levels. This N-Channel MOSFET defined as a type of MOSFET made up of a majority of electrons as current carriers. When the MOSFET activated and is on, the majority of the current flowing are electrons moving through the channel. It is one of the prominent power semiconductor device in world, due to its low gate drive power, wide bandwidth. This makes it ideal for use in wide range of applications such as in low-voltage (less than 200V) switch.
