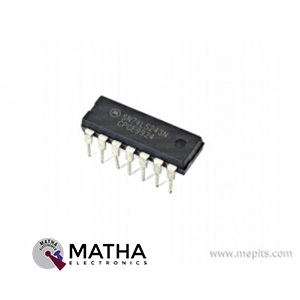

74LS243 Quadruple Bus Transceiver IC
Original price was: ₹23.00.₹15.00Current price is: ₹15.00. inc. GST
- Quadruple Bus Transceivers
- Logic Family:Â LS
- Number of Circuits:Â 4
- Output Type:Â 3-State
- High Level Output Current:Â -15 mA
- Low Level Output Current:Â 24 mA
- Polarity:Â Non-Inverting
- Propagation Delay Time: 18 ns
- No. of Pins:Â 14
- Operating Temperature Range: 0°C to +70°C
- Â Supply Voltage Range:Â 4.75V to 5.25V
- Package:Â DIP-14
Description
The 74LS243 designed as Quad Bus Transmitters/Receivers designed for 4-line asynchronous 2-way data communication between data buses. 74LS243 also used to drive terminated lines down to 133 Ohm. 74LS243 Quadruple Bus Transceiver IC belongs to 74XXYY IC series. The 74LS243 IC operates at a wide range of working voltage, a wide range of working conditions. And directly interfaces with CMOS, NMOS, and also TTL. The output of the IC always comes in TTL. Thus bmakes it quite easy to function with other TTL devices and microcontrollers. Moreover, these IC 74LS243 comes as smaller in size and offers much faster speed which makes it highly reliable in every kind of device.
74LS243 IC operates at a supply voltage at a range between 4.75V and to a maximum of 5.25V. This IC designed for operation over the full military temperature range of −0°C to 75°C. 74LS243 manufactured in 14−pin plastic PDIP wide-body surface-mount packages.
Bus transceivers designed as electronic tri-state bi-directional devices that allows the flow of data between two points. This makes them compatible with bus-oriented systems or the bi-directional (input or output) control of interface circuitry. Moreover, bus transceiver exist as inverting or non-inverting, common examples are 74LS243 & LS242 IC series. Bus tranceivers are designed specifically for asynchronous two-way communication between two data buses or input/output device. The transceiver allows for the transmission of data from terminals A to terminals B or the reverse depending on the logic level at the direction-control input. These IC widely used to provide bidirectional, input or output control, of either digital or analogue devices to a common shared data bus.
Applications
- Building Automation
- Electronic Point of Sale
- Factory Automation and Control
- Test and Measurement protocols
