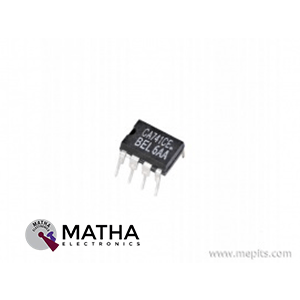

CA741C 0.9MHz Single High Gain Operational Amplifier IC

The CA741C is a monolithic silicon integrated circuit device that has output short circuit protection and operates without latching. This operational amplifier with a high gain is designed for military, industrial, and commercial applications. When combined with an adequately valued potentiometer, these kinds also offer extensive common mode and differential mode signal ranges, as well as low offset voltage nulling capability. For offset nulling types CA741C series, a 10k potentiometer is utilised. A differential input amplifier effectively drives a gain and level shifting stage with a corresponding emitter follower output in each type.

A DC-coupled high-gain electronic voltage amplifier with a differential input and, in most cases, a single-ended output is referred to as an operational amplifier. An op amp produces an output potential (relative to circuit ground) that is 100,000 times greater than the potential difference between its input terminals in this setup. Furthermore, operational amplifiers were first utilised in analogue computers to conduct mathematical operations in linear, non-linear, and frequency-dependent circuits.

The op amp’s adaptability is one of the reasons for its prominence as a building block in analogue circuits. External components influence the parameters of an op-amp circuit, such as gain, input and output impedance, bandwidth, and so on, utilising negative feedback. And the op amp itself has minimal reliance on temperature coefficients or technical tolerance.

`
Applications

• Comparator
• Multivibrator
• DC Amplifier
•  Summing Amplifier
•  Integrator or Differentiator
• Narrow Band or Band Pass Filter
