KA2284 Audio level Indicator
Original price was: ₹445.00.₹350.00Current price is: ₹350.00. inc. GST
- Chip: KA2284.
- Wide operating supply voltage: 3.5V-16V
- `Level amplitude can be adjusted.
- AC/DC signal can be controlled through the jump line.
- High gain rectifying amplifier included(Gv=26dB)
- Low radiation noise when LED turns on
- Logarithmic indicator for 5-dot LED of bar type.
- Constant current output( 15mA)
- Minimum number of external parts required
- PCB board size: 29 x 21 mm
Out of stock
Description

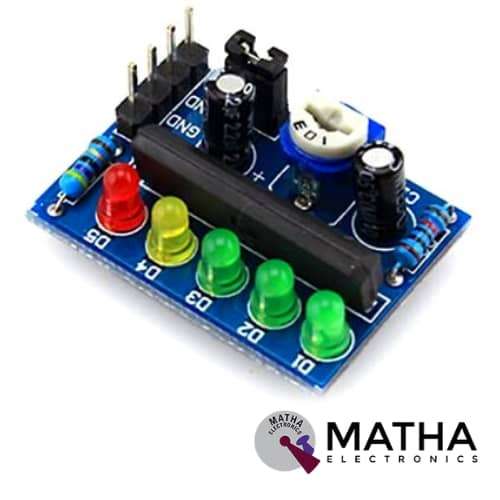

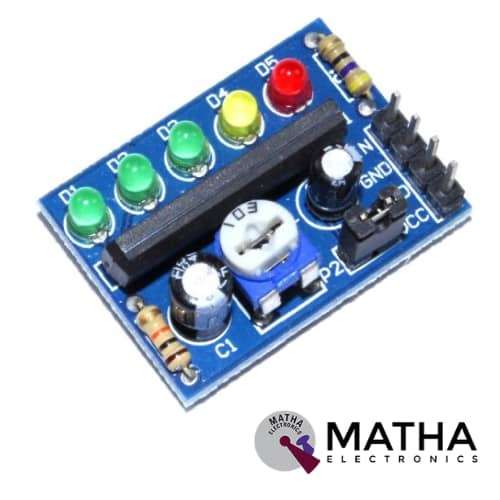

The KA2284 was designed as a monolithic integrated circuit specifically for 5-dot LED level meter drivers. This audio level indicator comes with a built-in rectifying amplifier and is suitable for AC/DC level meters such as VU meters or signal meters. KA2284 is a logarithmic display driver IC. And it is Bar type of display driver using a 5-Dot LED. The display includes 5 LEDs – 3 green, 1 yellow, and 1 red-lit in sequence as the input voltage increases. The range for the display set via a single-turn potentiometer
This LED meter in the module indicates the power of the output of the power amplifier. Also, its functions as a signal meter. Hence it measures the amplitude of the output signal in Tuner, CD player, and more. This high-quality KA2284 audio level indicator is easy and convenient to use at an affordable cost. The KA2284 operates at a wide range supply voltage capacity of 3.5V-16V, highly recommended to use about a 12VDC power supply. The 4-pin header on the assembly makes the connections easier and quicker.
PIN DESCRIPTION:
- VCC = Connect to 3.5 to 16V
- IN = Input. The voltage to be measured by the device
- GND = Ground. There are 2 ground pins in which the only one used
- GND = Ground. There are 2 ground pins, but the only one used
Application:
- Audio level Indicator
- Battery level indicator
