Mh13001 220V Digital Air Humidity Control Controller Range designed as digital humidity control controller. It comes with a wide humidity measuring range and controlling range consisting of a humidity controller sensor probe with cable. This humidity Capacitive Digital Temperature and Humidity Module is a temperature and humidity composite sensor providing a calibrated digital signal output. This digital output is displayed via an LCD. The display is red that shows three “LED” digits, which clearly shows the temperature full value (no decimal place).
Humidity sensors make use of high-precision capacitive faster chip which has the advantage of high accuracy to reflect. It offers a Humidity measuring range of 1 percent ~ 99 percent RH and also has a control range of 1 percent RH. In this module, the humidification and dehumidification set via the menu, thus the parameters have been set for the power outage permanent memory function.
Mh13001 220V Digital Air Humidity Control Controller offers highly precise, more accurate, and works in a bigger range of temperature/humidity. But quite larger and more expensive compared to AM2302. Using dedicated digital module acquisition technology and temperature, humidity sensors ensure the products with high reliability and excellent long-term stability.

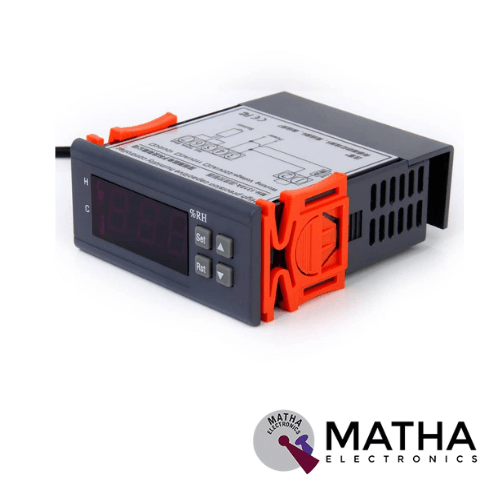

Below the display, there exist four buttons that control the humidity controller. The first button indicates “SET”, with the following two buttons + and – used for menu navigation increasing or decreasing values, and Rst resembles “ON/OFF button”. At the back of the humidity controller there exist 3x green terminals. In left, consists of “Relay switch”, in the center is “Power” and right is terminals for probe AM2302. Moreover, the Humidity controller sensor MH-13001 placed in the bottom of the temperature controller right side. And also it measures about 80 cm long with the active end.
