-17%

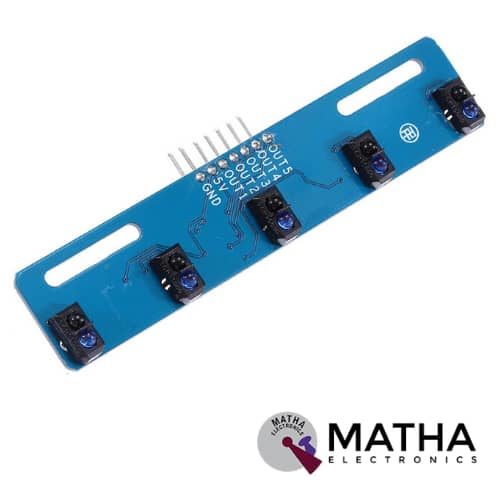

5 Channel Infrared Reflective Sensor promixity sensor
Original price was: ₹415.00.₹399.00Current price is: ₹399.00. inc. GST

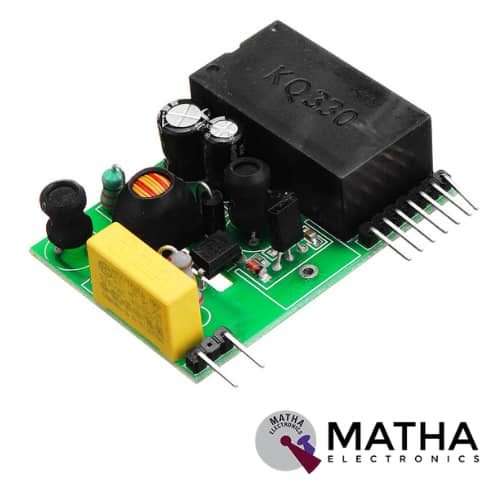

Power Line Carrier Module KQ-430F
Original price was: ₹2,000.00.₹1,500.00Current price is: ₹1,500.00. inc. GST

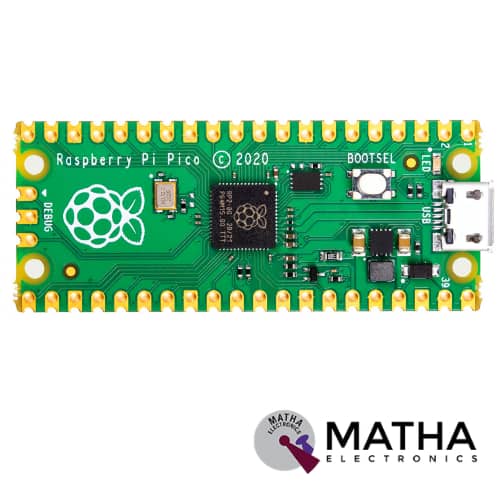

Raspberry Pi Pico
Original price was: ₹780.00.₹650.00Current price is: ₹650.00. inc. GST
- Operating Voltage: 1.8-5.5 VDC
- Processor: RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi
- RAM: 264 KB
- GPIO: 26 Pins
- Clock Speed: 133 MHz
- On-Board Port: Micro-USB 5V/2.5A DC Power Input Port
- 2MB of onboard Flash memory
- The castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 multi-function GPIO pins
- 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels
- Accurate clock and timer on-chip
- Operating Temperature Range: -20 to 85 degrees C
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 Programmable I/O (PIO) state machines for custom peripheral support
Description
Raspberry Pi PICO is a new device produced by the Raspberry Pi Foundation that is significantly less expensive than existing Raspberry Pi products. Raspberry Pi PICO is a Single Board Computer (SBC) with the smallest size development board, and it includes an RP2040 Microcontroller chip made by the Raspberry Pi Foundation. The RP400 is the first dual-core ARM Cortex M0+ processor-based newest small-sized, low-cost microcontroller. The Raspberry Pi Pico breakout board is specifically built for the RP2040. It combines the RP2040 with 2MB of Flash memory and a power supply chip that accepts input voltages ranging from 1.8 to 5.5V. This enables Pico to be powered from a wide range of sources. This comprises two or three AA cells connected in series, as well as a single lithium-ion cell.
The RP2040 has 264KB of internal RAM and can handle up to 16MB of off-chip Flash. This module features a variety of versatile I/O choices such as I2C, SPI, and uniquely Programmable I/O. (PIO). This allows for an infinite number of conceivable applications in a wide range of sectors for this compact and economical package. Pico also has a single push button, which is used to enter USB mass-storage mode at boot time as well as a general input, and a single LED. It exposes 26 of the 30 GPIO pins of the RP2040 to 0.1″-pitch pads, including three of the four analogue inputs. The RP2040 is compatible with both C/C++ and micro-python. If you are a novice and wish to learn any of these languages, the Raspberry Pi Pico is the ideal solution.
Reviews (0)
Shipping & Delivery
Related products
1/4 CMOS 640*480 USB Camera with Collapsible cable for Raspberry Pi
• Interface: USB 2.0
• Sensor: 1/4 Cmos
• Operating Current: <120 mA
• Picture Format: VGA
• Resolution: 640X480
• Supports 300k pixels, a maximum resolution of 640×480, and VGA/ YUY2 packed formats
• Dimension: 40mm × 15mm × 30mm; designed for Raspberry Pi and PC
• With a retractable USB cable, convenient to store
• Applies USB 2.0 High-speed Sensor, plug-and-play, no driver installation
• High definition and true colour images.
• max pixels: 12m pixels
3.2 Inch Touch Screen
- Version: V4.0
- Resistive touch.
- Dimension: 3.2 inch.
- Operating Voltage: DC 5V.
- Driver: XPT2046.
- Resolution: 240 x 320.
- Compatible with any version of the raspberry pie
- Drivers provided (works with your own Raspbian/Ubuntu/Kali)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- Comes with three buttons for easy application
- Play videos (supports multi formats, MP4, and so on)
- Take photos by touching
- Support software keyboard (system interaction without keyboard/mouse)
- The Raspbian system, have the following features:1. Take pictures (17 kinds of camera mode) 2. Support soft keyboard (from the mouse and keyboard can control the system) 3. Surfing the Internet
- Dimension: 10 x 8 x 4 cm
- Weight: 150 Grams
Raspberry Pi 3-MODB+-1GB Motherboard
- 1.2GHz 64-bit quad-core ARMv8 CPU, 1 GB RAM
- 802.11n wireless LAN, 10/100Mbps LAN speed, Upgraded switched Micro USB power source up to 2.5A
- Bluetooth 4.1, Bluetooth low energy
- 4 USB ports, 40 GPIO pins, full HDMI port, combined 3.5mm audio jack, and composite video
- Camera interface (CSI), Display interface (DSI), Micro SD card slot (now push-pull rather than push-push), Video Core IV 3D graphics core
- Warranty Details: 1-year warranty provided by the manufacturer from date of purchase
Raspberry PI 5MP V1.3 Camera Module
- 5MP Super HD Resolution
- Still Picture Resolution: 2592 x 1944
- Video: Supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 Recording
- 2TB HDD for 24/7 Continuous Recording
- Plug and Play; Easy to Use
- Power over Ethernet
- Easy Remote Access and Control
- Fully Compatible with Both the Model A, Model B and Model B+ Raspberry Pi
- 5MP Omnivision 5647 Camera Module
- 4X optical zoom allows you to see the far-away objects clearly without getting closer and compromising in image qualities.
- Dual-band WiFi signal promises you a strong network all the time.
- Waterproof and vandal-proof cover makes it solid even in harsh weather and attack.
- 15-pin MIPI Camera Serial Interface - Plugs Directly into the Raspberry Pi Board
- Size: 20 x 25 x 9mm
- Weight 3g
