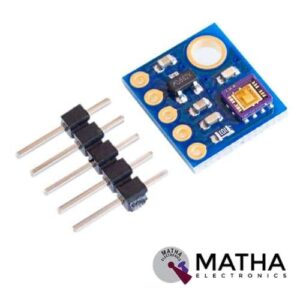

UV Sensor Module Ml8511 Analog Output UV Sensor Breakout

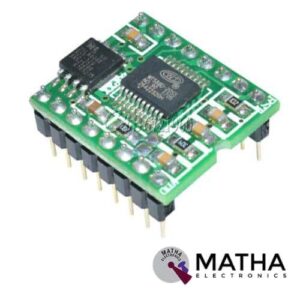

Voice Module Sound Module Audio Player WT588D
- Input Supply voltage (V) :2.8 ~ 5.5
- Current consumption (sleep mode: 10 µA
- Sampling frequency (kHz): 6 ~
- Built 13Bit/DA converter, and 12Bit/PWM output.
- Support for loading WAV audio formats
- Module package (with FLASH memory and peripheral circuits) have DIP16, DIP28, chip packaging has DIP18, SSOP20, and LQFP32 form
- Built 13Bit/DA converter, and 12Bit/PWM output
- PWM output can directly drive 0.5W/8Ω speakers, push-pull current abundant support DAC / PWM output of two ways;
- Support for loading WAV audio formats;
- USB download mode, support for online download / offline download; WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash;
- Supports MP3 control mode, control mode button, 3 × 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I / O port expansion output mode;
- Support load 6K ~ 22KHz audio sampling rate
- Up to 500 segments can be loaded for editing audio

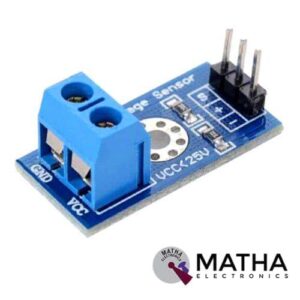

Voltage Divider Module for boards compatible with Arduino
- Working Voltage: 5.0 V DC
- Measurement Accuracy: <=1%
- Input Range: 25V max
- Resistor Tolerance: 0.5%
- Temperature Coefficient: 50PPM/°C
- Ratio: 0.18 ( ADC reference voltage / 0.18)
- External voltage and grove interface
- Eliminates the need to connect resistance to the input interface
- Adjustable gain
- Easy to use
VOLTAGE SENSOR

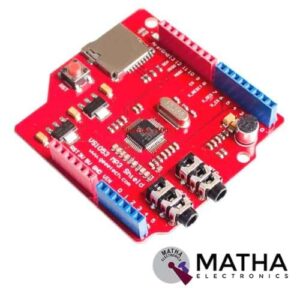

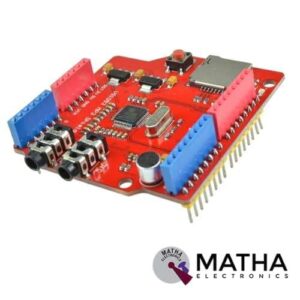

VS1053 MP3 Recording Module Development Board with Onboard Recording For UNO
- SPI interface, the control signal lines are led out
- A headphone and stereo output
- Onboard Microphone for recording
- A line-in input interface
- Separate 3.5 mm Jack for MIC and Speaker
- Onboard Power Indicator
- 3V and 2.8V of LDO chip AMS-1117 on board provides up to 800mA current
- Can play a variety of music formats, support for OGG encoding real-time recording
- A single power supply: +5 VDC
- 288 Mhz crystal
- TF card slot
Water Float Sensor Black
- Rating contract (Max.): 10 W
- Switching power supply (Max.): 110VDC
- Resistance contract (Max.): 100 Ω
- Breakdown Voltage (Max.): 220VDC
- Current (Max.): 1A
- Body Total Length (mm) : 85
- Cable Length (cm) : 3
- Total Float opening: 70
- Float Switch ON/OFF angle: Approx. between 15 to 20
- Operating Temperature (C): -10 to 60
- Cable length: 40cm
- No electrical contact with water.
- Shockproof
- Corrosion-free and rust-free
- Float Ball Size: 24×17mm
- Weight : 0.02 kg
Water flow sensor SEN-HZG1WA Pulse Output 4~45L/min Liquid Switch Flowmeter
- Model: SEN-HZG1WA.
- Use voltage: DC 5V.
- Connect way: G1”, 60*34*34(mm).
- Working voltage range: DC 4.5 ~18V.
- Working current: 15mA.
- Test range: 4~45L/min (m³/h).
- Fit media: water.
- Working pressure: 1.75MPa.
- Outside nominal diameter: G1 (mm).
- Instantaneous flow pulse characteristics: F= [5Q-3]±10%, F means instantaneous pulse value(Hz),Q means instant flow(L/min).
- Insulation resistance = 100MO.
- Electric strength: AC 500V, 50Hz.
- Precision grade: +-10%.
- Working temperature: 60 degree C
- Type: vane-wheel type flowmeter.

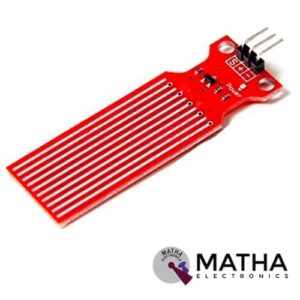

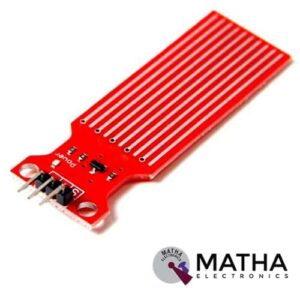

Water Level Sensor
Water Proof RTD PT100 Temperature Sensor, Stainless Steel
Waveshare 10.1inch HDMI LCD (B) (with case) 1280×800 IPS
- IPS screen,1280×800 high resolution
- Capacitive touch control supports up to ten-points touch
- When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
- When working as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
- Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
- Supports BB Black, comes with Angstrom image
- HDMI interface for displaying, USB interface for touch control
- Supports 5-level backlight adjustment.
- Case Material: high-quality black Acrylic
- Comes with a back holder, 45degree tilt angle
- Dimensions: 18 x 10 x 9 cm
- Weight: 800gm
