CD4063BE CMOS 4-Bit Magnitude Comparator IC
CM8870 ISO2 CMOS Integrated DTMF Receiver IC
AD705J Bipolar Operational Amplifier IC
DPM7109 12-Bit µP Compatible ADC IC
- 12-Bit µp - Compatible Analog-To-Digital Converter
- Supply Current Max.: 1500µA
- High Level Output Voltage Min.: 3.5V
- Low level Output Voltage Max.: 0.4V
- High Level Input Voltage Min.: 2.5V
- Low level Input Voltage Max.: 1V
- Analog Input Voltage: +6.2 to -9V
- Power Dissipation: 1.23W
- Input Common-Mode Rejection Ratio: 50µV/V
- Low Noise: 15µVpp
- Package: DIP-40
DAC0808 8-Bit Multiplying Digital-to-Analog Converter IC
DAC0800 8-Bit Digital-to-Analog Converter IC

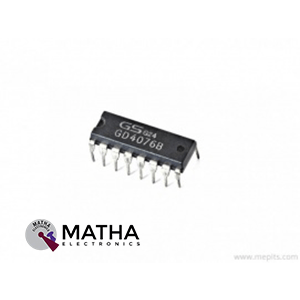

CD4076 CMOS 4 Bit D Type Register IC
- CMOS 4 Bit D Type Register
- Supply Voltage Range:Â 3 to 18V
- Input Current: ±10mA
- Maximum Clock Frequency: 8MHz
- Power Dissipation: 500mW
- Quiescent Current Max.: 100µA
- Low level Output Voltage Max.: 0.05V
- High level Output Voltage Min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Propagation Delay Time Max.: 600ns
- Package: DIP-16
74LS242 Quad Bus Transceiver IC
- Quad Bus Transceiver
- Logic Type:Â Bipolar
- Logic Family:Â 74LS
- Number of Circuits:Â 4
- Output Type:Â 3-State
- High Level Output Current:Â -15 mA
- Low Level Output Current:Â 24 mA
- Propagation Delay Time:Â 30 ns
- Polarity:Â Inverting
- Supply Voltage Range:Â 4.75V to 5.25V
- Operating Temperature Range: 00C to +700C
CD4031 64 Stage Static Shift Register IC
- 64 Stage Static Shift Register
- Supply Voltage Range:Â 3 to +15V
- Input Current: ±10mA
- Power Dissipation:Â 200mW
- Low level Output Voltage Max.:Â 0.05V
- High level Output Voltage Min.:Â 4.95V
- Low level Input Voltage Max. :Â 1.5V
- High level Input Voltage Min. :Â 3.5V
- Maximum Clock Frequency:Â 12MHz
- Propagation Delay Time Max.:Â 500ns
- Package:Â DIP-16

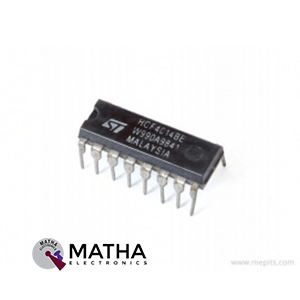

CD4014 Synchronous Parallel or Serial Input Serial Output IC
- Synchronous Parallel Or Serial Input/Serial Output:
- Supply Voltage:Â 3 to 18V
- Input Current: ± 10 mA
- Power Dissipation:Â 200mW
- Low level Output Voltage Max. :Â 0.05V
- High level Output Voltage min.:Â 4.95V
- Low level Input Voltage Max.:Â 1.5V
- High level Input Voltage Min.:Â 3.5V
- Propagation Delay Time Max. : 320ns
- Package:Â DIP-16
HT6221 SMD Multi-Purpose Encoder IC
- Multi-Purpose Encoder
- Operating Voltage range:Â 1.8V to 3.5V
- Operating Current Max.: 400µA
- Output Source Current for DOUT:-4mA
- Output Source Current for LED: -60µA
- Output Source Current for C1~C8: -2.0mA
- System Frequency: 455kHz
- Package: SOP-20
- Â DOUT with 38kHz carrier for IR medium
- Â Low standby current
- Â Minimum transmission word: one word
- Â 455kHz ceramic resonator or crystal
- Â 16-bit address code
- 8-bit data codes
- Â PPM code method
CD4512BE CMOS 8-Channel Data Selector IC
- CMOS 8-Channel Data Selector
- Logic Type:Â Multiplexer
- No. of Pins:Â 16
- Logic IC Family: CD4000
- Propagation Delay Time: 140 ns
- Number of Lines In/Out: 8 / 1
- Output Current Max: 6.8mA
- Power Dissipation: 275 mW
- Operating Temperature Range: -55°C to +125°C
- Supply Voltage Range: 3V to 18V
- Package: PDIP-16
