MEGA8515 Atmel Microcontroller IC
- Flash (Kbytes):8 Kbytes
- Pin Count: 44
- Operating Freq. (MHz): 16 MHz
- CPU: 8-bit AVR
- Max I/O Pins: 35
- Ext Interrupts: 3
- SPI: 1
- UART: 1
- SRAM (Kbytes): 0.5
- EEPROM (Bytes): 512
- Operating Voltage (Vcc): 2.7 to 5.5
- Package: PDIP 40P6 40
- High-performance, Low-power AVR® 8-bit Microcontroller
- RISC Architecture
- Non-volatile Program and Data Memories
- Peripheral Features includes One 8-bit Timer/Counter with Separate Prescaler and Compare Mode ,One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode, Three PWM Channels , Programmable Serial USART , Master/Slave SPI Serial Interface
- Operating Voltages – 2.7 - 5.5V for ATmega8515L , 4.5 - 5.5V for ATmega8515
MEGA16A Atmel Microcontroller IC
- Flash (Kbytes): 16 Kbytes
- Pin Count: 44
- Operating Freq. (MHz): 16 MHz
- CPU: 8-bit AVR
- Max I/O Pins: 32
- Ext Interrupts: 3
- SPI: 1
- UART: 1
- ADC channels: 8
- SRAM (Kbytes): 1
- EEPROM (Bytes): 512
- Operating Voltage (Vcc): 2.7 to 5.5
- High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family
- Advanced RISC Architecture.
- High Endurance Non-volatile Memory Segments
- Peripheral Features includes Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode,One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode , Real Time Counter with Separate Oscillator , Six PWM Channels , 8-channel 10-bit ADC in TQFP.
- Programmable Serial USART ,Master/Slave SPI Serial Interface.
LM1876 Dual 20W Audio Power Amplifier IC
- Dual 20W Audio Power Amplifier with Mute and Standby Modes
- Spike Protection
- Minimal amount of external components necessary
- Quiet fade-in/out mute mode
- Standby-mode
- Isolated 15-lead TO-220 package
- THD+N at 1 kHz at 2 x 15W continuous average output power into 4Ω or 8Ω: 0.1% (max)
- THD+N at 1 kHz at continuous average output power of 2 x 20W into 8Ω: 0.009% (typ.)
- Standby current:Â 4.2 mA (typ.)
PIC16F873A Microcontroller IC
- Maximum CPU Frequency: 20 MHz
- Architecture: 8 bit
- Program Memory (Flash): 7 kB
- RAM: 192 byte
- Internal Oscillator: No
- ADC: 1 (5 channels)
- of Pins: 28
- Voltage: 2V - 5.5V
- 100,000 erase/write cycle Enhanced Flash program memory typical
- 1,000,000 erase/write cycle Data EEPROM memory typical
- Data EEPROM Retention > 40 years
- Self-reprogrammable under software control
- In-Circuit Serial Programmingâ„¢ (ICSPâ„¢) via two pins
- Single-supply 5V In-Circuit Serial Programming
- Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving Sleep mode
- Selectable oscillator options
- In-Circuit Debug (ICD) via two pins
- Low-power, high-speed Flash/EEPROM technology
- Fully static design
- Wide operating voltage range (2.0V to 5.5V)
- Commercial and Industrial temperature ranges
- Low-power consumption

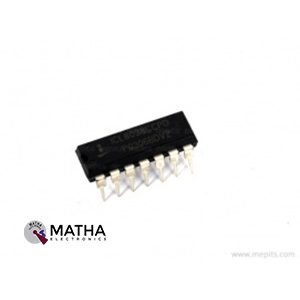

ICL8038CCPD Precision Waveform Generator or Voltage Controlled Oscillator IC
- Precision Waveform Generator or Voltage Controlled Oscillator
- Power Supply Type: Single/Dual
- Supply Voltage Range (Single):Â 10V to 30V
- Supply Voltage Range(Dual): ±5V to ±15V
- Output Sink Current: 25mA
- Frequency of Oscillation Max.: 100kHz
- Supply Current Max.: 20mA
- Duty Cycle: 2% to 98%
- FM Linearity:0.5%
- Rise Time: 180ns
- Fall Time: 40ns
- Package: DIP-16

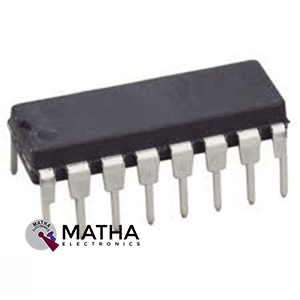

74LS76 Dual J-K Flip-Flop IC with Set and Clear
DS18B20 Programmable Resolution 1-Wire Digital Thermometer IC
ADG509 4-Channel Analog Multiplexer IC
- 4 Channel Analog Multiplexer
- Power Supply Type: Single/Dual
- Supply Voltage Range (Single):Â 10.8V to16.5V
- Supply Voltage Range(Dual): ±10.8V to ±16.5V
- High Level Output Current Max. : 20mA
- Power Dissipation Max. : 470mW
- Propagation Delay Max.: 300ns
- On Resistance Max.: 700Ω
- Supply Current Max.: 1.5mA
- Package: DIP-16
PIC16F72 Microcontroller IC
- Maximum CPU Frequency: 20 MHz
- Architecture: 8 bit
- Program Memory (Flash): 3.5 kB
- RAM: 128 byte
- Internal Oscillator: No
- ADC: 1 (5 channels)
- of Pins: 28
- Voltage: 2V - 5.5V
- 1,000 erase/write cycle FLASH program memory typical
- Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
- Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving SLEEP mode
- Selectable oscillator options
- In-Circuit Serial Programmingâ„¢ (ICSPâ„¢) via 2 pins
- Processor read access to program memory
- Low power, high speed CMOS FLASH technology
- Fully static design
- Wide operating voltage range: 2.0V to 5.5V
- Industrial temperature range
- Low power consumption:
- < 0.6 mA typical @ 3V, 4 MHz
- 20 μA typical @ 3V, 32 kHz
- < 1 μA typical standby current
LM2577 Step-Up Voltage Regulator IC
- Step-Up Voltage Regulator
- Requires few external components
- NPN output switches 3.0A, can stand off 65V
- Wide input voltage range: 3.5V to 40V
- Current-mode operation for improved transient response, line regulation, and current limit
- 52 kHz internal oscillator
- Soft-start function reduces in-rush current during start-up
- Output switch protected by current limit, under-voltage lockout, and thermal shutdown
5L0380 Power Switch IC
- Power Switch
- Drain Voltage: 650V
- Drain Current: 12A
- Supply Voltage: 30V
- Supply Current: 12mA
- Precision fixed operating frequency (100/67/50kHz)
- Low start-up current (typ. 100µA)
- Pulse by pulse current limiting
- Over-current protection
- Overvoltage protection (Min. 25V)
- Internal thermal shutdown function
- Under voltage lockout
- Internal high voltage sense FET
- Auto-restart mode
MEGA8A Atmel Microcontroller IC
- Flash (Kbytes): 8 Kbytes
- Pin Count: 28
- Operating Freq. (MHz): 16 MHz
- CPU: 8-bit AVR
- Max I/O Pins: 23
- Ext Interrupts: 2
- SPI: 1
- UART: 1
- ADC channels: 6
- SRAM (bytes): 1024
- EEPROM (Bytes): 512
- Operating Voltage (Vcc): 2.7 to 5.5 V
- High-performance, Low-power Atmel®AVR® 8-bit Microcontroller
- Advanced RISC Architecture
- High Endurance Non-volatile Memory segments
- Â Power-on Reset and Programmable Brown-out Detection , Internal Calibrated RC Oscillator ,External and Internal Interrupt Sources ,Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby.
- Operating Voltages – 2.7V - 5.5V (ATmega8L) , 4.5V - 5.5V (ATmega8
