VIPER53 Off-Line Primary Switch IC
- Drain Source voltage: 620V
- Off State Drain Current: 150µA
- Static drain-source ON state resistance: 0.9Ω
- Power dissipation: 30W
- No. of outputs: 1
- Supply Voltage: 0 to 19V
- Off-line primary switch
- Adjustable Switching Frequency up to 300KHz
- High voltage start-up current source
- Over temperature protection
- Package: DIP-8
5Q1265 Power Switch IC
- Power Switch
- Drain Voltage: 650V
- Drain Current: 28A
- Supply Voltage: 40V
- Supply Current: 18mA
- Precision fixed operating frequency (100/67/50kHz)
- Low start-up current (typ. 100µA)
- Pulse by pulse current limiting
- Over-current protection
- Overvoltage protection (Min. 25V)
- Internal thermal shutdown function
- Under voltage lockout
- Internal high voltage sense FET
- Auto-restart mode

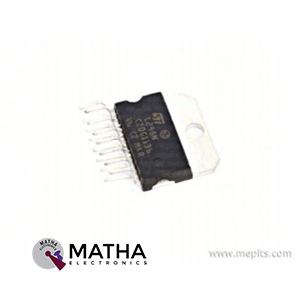

L298N Dual Full-Bridge Driver IC
- Dual full-bridge driver
- Operating Supply Voltage up to 46V
- Total DC Current up to 4A
- Low Saturation Voltage
- Over Temperature Protection
- Logical "0" Input Voltage up to 1.5V (High Noise Immunity)
- Power Supply: 50V
- Logic Supply Voltage: 7V
- Input and Enable Voltage: -0.3 to 7V
- Non Repetitive Peak Output Current: 3A
- Total Power Dissipation: 25w
PT2323 6-Channel Audio Selector IC

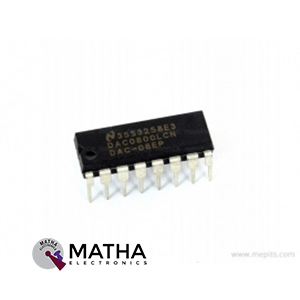

DAC0800 8-Bit Digital-to-Analog Converter IC
VIPER50 SMPS Primary IC

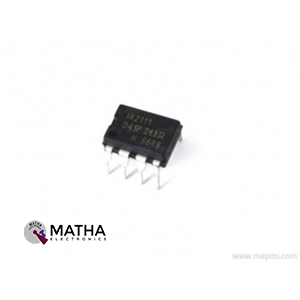

IR2111 Half-Bridge Driver IC
- Half-Bridge Driver
- High Side Floating Supply Voltage: 625V
- High Level Output Voltage Max.:100mV
- Low Level Output Voltage Max.: 100mV
- Logic 1 Input Bias Current Max.: 40µA
- Logic 0 Input Bias Current Max.: 1µA
- Total Power Dissipation:1W
- Rise Time Max. : 130ns
- Fall Time Max.: 65ns
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage
- dV/dt immune
- Gate drive supply range from 10 to 20 V
- Undervoltage lockout for both channels
- CMOS Schmitt-triggered inputs with pull-down
- Matched propagation delay for both channels
- Internally set deadtime
- High side output in phase with input
- Package: DIP-8
74121 Monostable Multivibrator with Schmitt-Trigger Input
LM338K 5-Amp Adjustable Regulator IC
89C55 Atmel Microcontroller IC
- Core Processor: 8051
- Data Bus Width: 8 bit
- Maximum Clock Frequency: 33 MHz
- Program Memory Size: 20 KB
- Program Memory Type: Flash
- RAM Size: 256 B
- ADC: No
- Number of Programmable I/Os: 32
- Number of Timers: 3x16 bit
- Supply Voltage Range: 4 V to 5.5 V
- Package: PDIP-40
- Compatible with MCS-51™ Products
- 20K Bytes of In-System Reprogrammable Flash Memory – Endurance: 1,000 Write/Erase Cycles
- Fully Static Operation: 0 Hz to 33 MHz
- Three-Level Program Memory Lock
- 256 x 8-bit Internal RAM
- 32 Programmable I/O Lines
- Three 16-bit Timer/Counters
- Eight Interrupt Sources
- Low Power Idle and Power Down Modes
TOP247YN Off-line Switcher IC
TOP261YN Off-line Switcher IC
- Supply Voltage: -0.3-9V
- Output Voltage: 700 V
- Power: 333W
- Switching Frequency-Max: 132 kHz
- Package: TO-220-7C
- Lowest cost, lowest component count switcher solution
- Stable in discontinuous or continuous conduction mode
- Source connected tab for low EMI
- Circuit simplicity and Design Tools reduce time to market
