Kapton Polyimide Heat Resistant/High Temperature/Thermal Tape/SublimationTape 12mm
- Color: Tawny
- Substrate material: Polyimide polymers film
- Glue Type: Silicone
- Substrate material thickness: 0.025mm
- Thickness with adhesive: 0.05mm
- Heat resistance: about 280°C
- Size:1/2" x 100ft (13mm*30m)
- Elongation: 35 %
- Temperature Range:-73°C – 260°C (-99°F - 500°F)
- High insulation, high temperature resistance, acid and alkali-resistance, low electrolysis, mechanically sound, crocking resistance, tear-resistance, without rest on surface when tear.
- Ideal for protecting sensitive printed circuit board (PCB) components,great for sublimation, HTV, heat press and heat transfer.
- Also extensive use as electrical insulation for transformer, motor, coil, capacitor and frequency conversion power supply in electronic industry.
LOAD CELL 10 Kg
- Capacity: 10Kg
- Rated output(MV/V): 2.0±0.15
- Accuracy class: C2
- Maximum number of load cell verification intervals(N max): 2000
- Minimum number of load cell verification intervals(Vmin): E Max/5000
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Temperature effect on sensitivity(%RO/°C): 0.0016
- Temperature effect on zero(%RO/°C): 0.003
- Zero balance(%RO): 1.0
- Input resistance(O): 402±6
- Output resistance(O): 350±3
- Insulation resistance(MO<50V>): 5000
- Recommended excitation voltage(V): 10~15
- Compensated temperature range(°C): -10~+40
- Operating temperature range(°C): -35~+80
- Safe overload(%RO): 150
- Ultimate overload(%RO): 200
- Load cell material: Aluminium
- Connecting cable: ø4.2*350mm
- Dimensions : 15.9 x 14.1 x 2.7 cm
- weight: 190gm
LOAD CELL 5Kg
- Capacity: 5Kg
- Rated output(MV/V): 2.0±0.15
- Accuracy class: C2
- Maximum number of load cell verification intervals(N max): 2000
- Minimum number of load cell verification intervals(Vmin): E Max/5000
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Temperature effect on sensitivity(%RO/°C): 0.0016
- Temperature effect on zero(%RO/°C): 0.003
- Zero balance(%RO): 1.0
- Input resistance(O): 402±6
- Output resistance(O): 350±3
- Insulation resistance(MO<50V>): 5000
- Recommended excitation voltage(V): 10~15
- Compensated temperature range(°C): -10~+40
- Operating temperature range(°C): -35~+80
- Safe overload(%RO): 150
- Ultimate overload(%RO): 200
- Load cell material: Aluminium
- Connecting cable: ø4.2*350mm
- Dimensions :3.45 x 2.4 x 0.9 inches
- weight:25gm
MFRC522 RFID 13.56MHz
- Integrated MFRC522 module 13.56MHz RFID module
- Operating voltage: 2.5V to 3.3V
- Supports SPI, I2C protocol, UART communication
- Maximum data rate: 10Mbps
- Read range: 5cm
- Current consumption: 13-26 mA
- Power down mode consumption: 10mA
- Low cost and low voltage device
- Advanced modulation and demodulation concept completely integrated into all types of 13.56MHz passive contactless communication method and protocol
- 14443A compatible transponder signal
- Can be directly loaded into various reader molds
- Dimension: 12.3*11.9*3.8cm
- Weight: 20gm
MH1210W 72V 250V 10A Digital Temperature Controller
- Working voltage: DC 9-72V/AC90-250V ± 10%, 50/60 HZ
- Rated current: 10 A
- Power consumption: ≤3 W
- Measurement range: -50~110 °C
- Measurement precision: 0.1 °C
- Measurement error: ±0.3 °C
- A mini temperature controller.
- Large and clear LED display for better readability
- Wide temperature measuring range
- Heating and cooling control
- Temperature calibration
- Delay protection function
- All parameters reset to default settings after short circuit

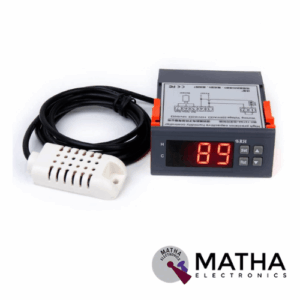

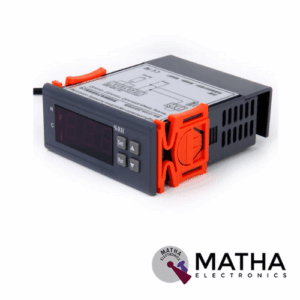

Mh13001 220V Digital Air Humidity Control Controller Range 1% – 99%
- Model Name: MH 13001
- Voltage: 220 Volt
- Accuracy: +-3% RH
- Type: Digital
- Color: Black
- Display Type: LCD
- Input Sensor: Humidity Sensor
- Humidity: 1% ~ 99% RH\humidity measuring
- Error: ±3 percent rh
- Control range: 1 percent RH
- Power consumption:3w
- Output load: Ac 10a/220v
- Working temperature: 0°c - 80 °c
- Dimensions: 8 x 5 x 3cms
- Usage/Application: Air Humidity Controller Hygrostat Humidistat Humidification Dehumidification
PWM 10A DC MOTOR SPEED CONTROL
- Working voltage:12V to 40V DC
- Maximum output power: 400 watt
- Current:10A, 100watt
- Static current:0.02A
- PWM duty cycle:10% - 100%
- PWM frequency:13KHz
- With reverse polarity protection, high current protection
- High efficiency and torque
- Control voltage over-voltage protection
- Low heat generation
- Material used: metal
- Dimensions:6*5.6*3cm
- SIZE: 64gm
RFID 13.56MHz Card
- Contactless transmission of data and supply energy (no battery needed)
- Operating distance: Up to 100mm (depending on antenna geometry)
- Operating frequency: 13.56MHz
- Data transfer: 106 kbit/s
- Data integrity: 16 Bit CRC, parity, bit coding bit counting
- Typical ticketing transaction: <100 ms ( including backup management)
- User-definable access conditions for each memory block
- Data retention of 10 years.
- Write endurance 100 000 cycles
- Reading and writing distance: 2.5-10CM
- Reading and writing time: 1-2MS
- Working temperature: -20 ° -85 °
- Packaging materials: PVC, PET, 0.13 coins
- Packaging technology: ultrasonic automatic line / automatic welding
- Production standards: ISO 14443, ISO 10536
RFID Key Fob 13.56mhz
- Operating frequency: 13.56 MHz
- Operating temperature: -45 °C to 85 °C
- Storage temperature: -55 °C to 100 °C
- Response Frequency: 13.56MHz
- Chip type: FM1108 Fudan Chip
- Memory capacity: 8 kbit
- Material: ABS
- Standard deployment: Attached to key fob and used for ID control
- For sensing and identifying tagged people and objects
- It is not re-programmable
- Dimension(LxWxH): 43.7×30.5×5.3mm
RFID Tag Key Fob Keyfobs 125Khz
- Material: ABS
- Response Frequency: 125Khz
- 2kbps ASK
- Diameter: ~29mm
- Range: 0-10 cm
- Manchester encoding
- 32-bit unique ID
- Uses TK4100 chip which is compatible with EM4100
- 64-bit data stream [Header+ID+Data+Parity]
- Read Time: 1-2ms
- Operating Temperature: -20c ~ 85 degree C
- Endurance:> 100,000 times
- 64-bit data stream [Header+ID+Data+Parity]
- Designed for the RFID 125KHZ duplicator. can copy all the ID card, such as Access Card, District Card, Parking etc
- Dimension: 43.7×30.5×5.3mm
SanDisk Cruzer Blade SDCZ50-008G-I35 8GB USB 2.0 Pen Drive
- Keep your digital world in your pocket in our smallest package
- Transfer and share photos, videos, songs and other files between computers with ease
- Free up space on your OTG-enabled Android phone. Customer care:[email protected]
- Back up your mobile photos, videos and contacts
SanDisk Cruzer Blade SDCZ50-016G-135 16GB USB 2.0 Pen Drive
- Compact Design for Maximum Portability.
- Store more with capacities up to 16gb 5-year limited warranty. Opening Mechanism: Capless
- High-Capacity Drive Accommodates Your Favorite Media Files
- SanDisk SecureAccess Software Protects Drive from Unauthorized Access
- The models are different because production is from different countries. Otherwise both are sandisk cruzer blade models.
