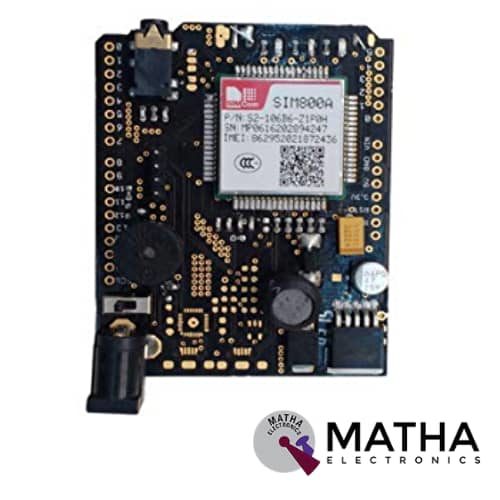

SIM800A Quadband GSM / GPRS Module convertible as Shield for Arduino
Original price was: ₹1,500.00.₹1,200.00Current price is: ₹1,200.00. inc. GST
RFID 13.56MHz Card
Original price was: ₹45.00.₹35.00Current price is: ₹35.00. inc. GST
- Contactless transmission of data and supply energy (no battery needed)
- Operating distance: Up to 100mm (depending on antenna geometry)
- Operating frequency: 13.56MHz
- Data transfer: 106 kbit/s
- Data integrity: 16 Bit CRC, parity, bit coding bit counting
- Typical ticketing transaction: <100 ms ( including backup management)
- User-definable access conditions for each memory block
- Data retention of 10 years.
- Write endurance 100 000 cycles
- Reading and writing distance: 2.5-10CM
- Reading and writing time: 1-2MS
- Working temperature: -20 ° -85 °
- Packaging materials: PVC, PET, 0.13 coins
- Packaging technology: ultrasonic automatic line / automatic welding
- Production standards: ISO 14443, ISO 10536
Description
This RFID 13.56MHz Card designed for Contactless transmission of data and supplies energy with no battery needed. Depending upon the antenna geometry used it operates up to a  distance of  1 Meter at an Operating frequency of 13.56MHz and a Data transfer speed of 106 kbit/s.
This RFID 13.56MHz Card features Data integrity of 16 Bit CRC, parity, bit coding bit counting which allows Anti-collision. Thereby these cards are widely used in ticketing transactions: <100 ms including backup management. This 13.56MHz RFID/NFC card – widely used for train/bus passes but also used in other systems where a proximity card desired. Therefore, these cards are widely used in ticketing transactions: <100 ms including backup management. This tag contains a small RFID chip and an antenna and passively powered by the reader/writer when placed a couple of inches away.
The 13.56MHz Card read by almost any 13.56MHz RFID/NFC reader. But make sure it should be capable of handling ISO/IEC 14443 Type A cards as there are a few other encoding standards (like FeLica). Moreover, these chips can be written to & store up to 1 KB of data in writable EEPROM. This further divided into banks and handle over 100,000 re-writes.
Applications :
- Public transportation
- Access control
- Event Ticketing
- Gaming & identity
Reviews (0)
Shipping & Delivery
Related products
1Kg Load cell Electronic Weighing Scale Sensor
- Capacity: 1KG
- Rated output(MV/V): 2.0±0.15
- Accuracy class: C2
- Maximum number of load cell verification intervals(N max): 2000
- Minimum number of load cell verification intervals(Vmin): E Max/5000
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Temperature effect on sensitivity(%RO/°C): 0.0016
- Temperature effect on zero(%RO/°C): 0.003
- Zero balance(%RO): 1.0
- Input resistance(O): 402±6
- Output resistance(O): 350±3
- Insulation resistance(MO<50V>): 5000
- Recommended excitation voltage(V): 10~15
- Compensated temperature range(°C): -10~+40
- Operating temperature range(°C): -35~+80
- Safe overload(%RO): 150
- Ultimate overload(%RO): 200
- Load cell material: Aluminium
- Connecting cable: ø4.2*350mm
- Dimensions :Â 10.92 x 9.52 x 0.51 cm
- weight:10gm
5pcs x NFC Sticker tags 13.56MHz ISO14443A 25mm Ntag213 RFID NFC tag
- Chip: Ntag213.
- Physical capacity: 180 bytes.
- Usable capacity: 144 bytes.
- Protocol: ISO14443A.
- Working frequency: 13.56 MHZ.
- Reading and writing distance: 1 to 5 cm.
- Reading and writing time: 1 to 2 ms.
- Working temperature: -20 to 55 degrees, the humidity of 90%.
- Erase times : > 100000 times.
- Data storage: > 10 years.
- Reading time: 100000 times.
- Diameter: 25mm.
- Materials: PE self-adhesive + coated paper.
- Manufacturer programmed 7-byte UID for each device
- Preprogrammed Capability container with one-time programmable bits
- Field programmable read-only locking function
- ECC-based originality signature
- 32-bit password protection to prevent unauthorized memory operations
- NFC Forum Tag 2 Type compliance
Kapton Polyimide Heat Resistant/High Temperature/Thermal Tape/SublimationTape 12mm
- Color: Tawny
- Substrate material: Polyimide polymers film
- Glue Type: Silicone
- Substrate material thickness: 0.025mm
- Thickness with adhesive: 0.05mm
- Heat resistance: about 280°C
- Size:1/2" x 100ft (13mm*30m)
- Elongation: 35 %
- Temperature Range:-73°C – 260°C (-99°F - 500°F)
- High insulation, high temperature resistance, acid and alkali-resistance, low electrolysis, mechanically sound, crocking resistance, tear-resistance, without rest on surface when tear.
- Ideal for protecting sensitive printed circuit board (PCB) components,great for sublimation, HTV, heat press and heat transfer.
- Also extensive use as electrical insulation for transformer, motor, coil, capacitor and frequency conversion power supply in electronic industry.
MFRC522 RFID 13.56MHz
- Integrated MFRC522 module 13.56MHz RFID module
- Operating voltage: 2.5V to 3.3V
- Supports SPI, I2C protocol, UART communication
- Maximum data rate: 10Mbps
- Read range: 5cm
- Current consumption: 13-26 mA
- Power down mode consumption: 10mA
- Low cost and low voltage device
- Advanced modulation and demodulation concept completely integrated into all types of 13.56MHz passive contactless communication method and protocol
- 14443A compatible transponder signal
- Can be directly loaded into various reader molds
- Dimension: 12.3*11.9*3.8cm
- Weight: 20gm
RF Transmitter Receiver Module 315MHz Wireless
Transmitter Module
- Operating voltage: 3V to 12V
- Operating frequency: 433.92MHz; 315MHz
- Standby current: 0mA
- Operating current: 20mA to 28mA
- Transmission distance: >500m (open to receiving plate sensitivity at -103dBm distance of more than)
- Output power: 16dBm (40mW)
- Data transfer rate: <10Kbps
- Modulation mode: OOK (amplitude modulation)
- Operating temperature: -10℃ to +70℃
-
- Operating voltage: 5V DC
- Static current:4mA
- Receiver frequency: 433.92MHz; 315MHz
- Sensitivity: -105dB
- External antenna: 32CM single wire spiral
- No of pins: 4
RFID Tag Key Fob Keyfobs 125Khz
- Material: ABS
- Response Frequency: 125Khz
- 2kbps ASK
- Diameter: ~29mm
- Range: 0-10 cm
- Manchester encoding
- 32-bit unique ID
- Uses TK4100 chip which is compatible with EM4100
- 64-bit data stream [Header+ID+Data+Parity]
- Read Time: 1-2ms
- Operating Temperature: -20c ~ 85 degree C
- Endurance:> 100,000 times
- 64-bit data stream [Header+ID+Data+Parity]
- Designed for the RFID 125KHZ duplicator. can copy all the ID card, such as Access Card, District Card, Parking etc
- Dimension: 43.7×30.5×5.3mm
XR2206 High Precision Function Signal Generator
- Voltage Supply: 9-12V DC Input.
- Waveforms: Square, Sine & Triangle.
- Impedance: 600 Ohm + 10%.
- Frequency: 1Hz-1MHz.
- SINE WAVE.
- SQUARE WAVE.
- TRIANGLE WAVE.
- High resolution, can generate sine/triangle/square waveforms.
- Adjustable frequency and amplitude.
- Frequency adjustment features coarse tuning and fine-tuning.
- All are through-hole components, easy for installation.
- Dimension: Approx. 12 * 8 * 2cm
- Weight: 69g
