RFID Tag Key Fob Keyfobs 125Khz
- Material: ABS
- Response Frequency: 125Khz
- 2kbps ASK
- Diameter: ~29mm
- Range: 0-10 cm
- Manchester encoding
- 32-bit unique ID
- Uses TK4100 chip which is compatible with EM4100
- 64-bit data stream [Header+ID+Data+Parity]
- Read Time: 1-2ms
- Operating Temperature: -20c ~ 85 degree C
- Endurance:> 100,000 times
- 64-bit data stream [Header+ID+Data+Parity]
- Designed for the RFID 125KHZ duplicator. can copy all the ID card, such as Access Card, District Card, Parking etc
- Dimension: 43.7×30.5×5.3mm

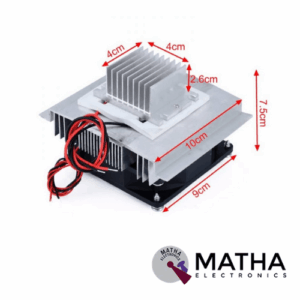

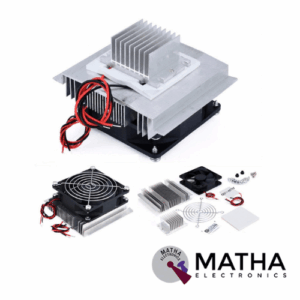

DC 12V Thermoelectric Peltier/TEC based Refrigeration Cooler kit
- Semiconductor Chilling Plate: TEC1-12706
- Size: 40 * 40 * 3.75mm
- Internal Resistance: 2.1~2.4Ω
- Temperature Difference: 67°C Above
- Rated Voltage: 12V(Vmax. 15V, Starting Current 5.8A)
- Working Current: Imax.=4~4.6A(Rated 12V)
- Refrigeration Power: Max. 50~60W
- Working Environment: -55~83°C
- Sealing Process: Standard 704 silicon rubber sealing all sides
- Fan: DC 12V 0.15A
- Conduction Module Size: 60 * 45 * 21mm
- Radiator Size: 116 * 100 * 23mm
- Fan Size: 90 * 90 * 25mm
- This Kit Having TEC-12706(Max 6Amp Current) Module.
- Recommended Power supply 12V 5Amp to 10Amps
- Do not use/test/operate TEC without Heatsink & Fan.
- The conduction cool module can frost when the temperature is under -25°C.

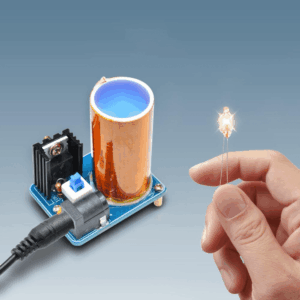

TESLA COIL
- designed as an electrical resonant transformer circuit
- generate high-voltage, low-current, high-frequency alternating-current electricity
- used to generate artificial lighting, sounds like music Tesla coils in Entertainment and Education industry are used as attractions at electronics fairs and science museums
RFID Key Fob 13.56mhz
- Operating frequency: 13.56 MHz
- Operating temperature: -45 °C to 85 °C
- Storage temperature: -55 °C to 100 °C
- Response Frequency: 13.56MHz
- Chip type: FM1108 Fudan Chip
- Memory capacity: 8 kbit
- Material: ABS
- Standard deployment: Attached to key fob and used for ID control
- For sensing and identifying tagged people and objects
- It is not re-programmable
- Dimension(LxWxH): 43.7×30.5×5.3mm
RFID 13.56MHz Card
- Contactless transmission of data and supply energy (no battery needed)
- Operating distance: Up to 100mm (depending on antenna geometry)
- Operating frequency: 13.56MHz
- Data transfer: 106 kbit/s
- Data integrity: 16 Bit CRC, parity, bit coding bit counting
- Typical ticketing transaction: <100 ms ( including backup management)
- User-definable access conditions for each memory block
- Data retention of 10 years.
- Write endurance 100 000 cycles
- Reading and writing distance: 2.5-10CM
- Reading and writing time: 1-2MS
- Working temperature: -20 ° -85 °
- Packaging materials: PVC, PET, 0.13 coins
- Packaging technology: ultrasonic automatic line / automatic welding
- Production standards: ISO 14443, ISO 10536

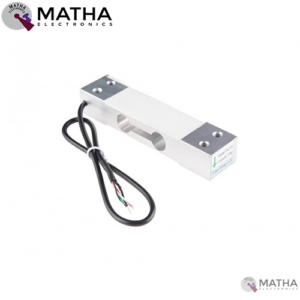

LOAD CELL 5Kg
- Capacity: 5Kg
- Rated output(MV/V): 2.0±0.15
- Accuracy class: C2
- Maximum number of load cell verification intervals(N max): 2000
- Minimum number of load cell verification intervals(Vmin): E Max/5000
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Temperature effect on sensitivity(%RO/°C): 0.0016
- Temperature effect on zero(%RO/°C): 0.003
- Zero balance(%RO): 1.0
- Input resistance(O): 402±6
- Output resistance(O): 350±3
- Insulation resistance(MO<50V>): 5000
- Recommended excitation voltage(V): 10~15
- Compensated temperature range(°C): -10~+40
- Operating temperature range(°C): -35~+80
- Safe overload(%RO): 150
- Ultimate overload(%RO): 200
- Load cell material: Aluminium
- Connecting cable: ø4.2*350mm
- Dimensions :3.45 x 2.4 x 0.9 inches
- weight:25gm
1Kg Load cell Electronic Weighing Scale Sensor
- Capacity: 1KG
- Rated output(MV/V): 2.0±0.15
- Accuracy class: C2
- Maximum number of load cell verification intervals(N max): 2000
- Minimum number of load cell verification intervals(Vmin): E Max/5000
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Temperature effect on sensitivity(%RO/°C): 0.0016
- Temperature effect on zero(%RO/°C): 0.003
- Zero balance(%RO): 1.0
- Input resistance(O): 402±6
- Output resistance(O): 350±3
- Insulation resistance(MO<50V>): 5000
- Recommended excitation voltage(V): 10~15
- Compensated temperature range(°C): -10~+40
- Operating temperature range(°C): -35~+80
- Safe overload(%RO): 150
- Ultimate overload(%RO): 200
- Load cell material: Aluminium
- Connecting cable: ø4.2*350mm
- Dimensions :Â 10.92 x 9.52 x 0.51 cm
- weight:10gm
125 KHz RFID CARD THICK
Digital LCD Indoor Temperature Humidity Meter Thermometer Hygrometer Gauge
- Material: Plastic
- Temperature range: -50 ° C to 70 ° C
- Measuring humidity range: 10% RH to 99% RH
- Humidity accuracy: 5%
- Moisture display resolution: 1% RH
- Accuracy of temperature: 1 ° C
- Operating voltage: 1.5 V or LR44 batteries (not included)
- Sampling period: 10 S
- Colour: Black
- Modern type indoor desk thermometer with hygrometer.
- One switchback of the thermometer that you can adust °C
- Ideal household decoration and ensure you the most desirable ambient temperature and humidity
- LCD dimension: approx. 40x22.5mm
- Dimension: approximately 48x28.5x15.2mm

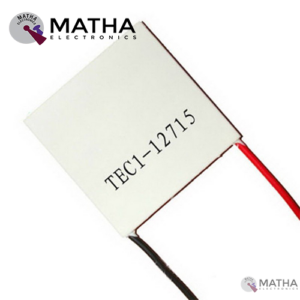

TEC1-12715
- Model number: TEC1-12715
- Operating Voltage: 12V
- Maximum Voltage- Vmax (V) : 15V
- Maximum Current- Imax (A) : 15A
- Maximum Power : 230 W
- Power Cord: 100mm
- Internal resistance: 1.98 Ohm +/- 10%
- Life expectancy: 200,000 hours
- Failure rate based on long-time testing: 0.2%.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
- Quality tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use with a heat sink
- Temperature: 138°C
- Wire Insulation Material: Teflon
- Dimension: 40x40x4.0mm
- Weight: 29g
