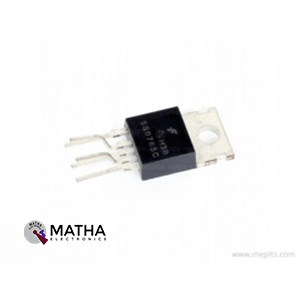

5S0765 Power Switch IC
- Power Switch
- Drain Voltage: 650V
- Drain Current: 28A
- Supply Voltage: 30V
- Supply Current: 12mA
- Wide Operating Frequency Range Up to 150kHz
- Â Lowest Cost SMPS Solution
- Lowest External Components
-  Low Start-up Current (Max:170µA)
- Low Operating Current (Max:12mA)
- Â Internal High Voltage SenseFET
- Â Over Voltage Protection With Latch Mode (Min23V)
- Â Over Load Protection With Latch Mode
- Over Current Protection With Latch Mode
- Â Internal Thermal Protection With Latch Mode
- Pulse By Pulse Over Current Limiting
- Â Under Voltage Lockout With Hysteresis
- Â External Sync. Terminal
Description
Nowadays, Power devices defined as innovative technology enabling future development of power converters and systems. These Power Device IC capable of precisely controlling electrical energy from the source to the load according to the load demand, at high efficiency, and with outstanding reliability. A power device IC designed as a semiconductor device acts as a switch in power electronics (ex: switch-mode power supply). Such a type of device known as the power device. Or when used in an integrated circuit, referred to as the power IC.
The 5L0380 Power Switch IC designed as an integrated Sense FETs designed explicitly for high-performance offline Switch Mode Power Supplies (SMPS) operated with minimal external components. These devices integrated as high voltage power switching regulators with a low Start-up Current Max of 170µA and low Operating Current of Max 12mA . It features Under Voltage Lock Out (UVLO) protection, Over Voltage Protection With Latch Mode (Min23V). And also optimized gOver Load Protection With Latch Mode, Internal Thermal Protection With Latch Mode, Pulse By Pulse Over Current Limiting.
Applications
- SMPS for VCR, SVR, STB, DVD & also DVCD
- SMPS for Printer, Facsimile & Scanner
- Adaptor for Camcorder
