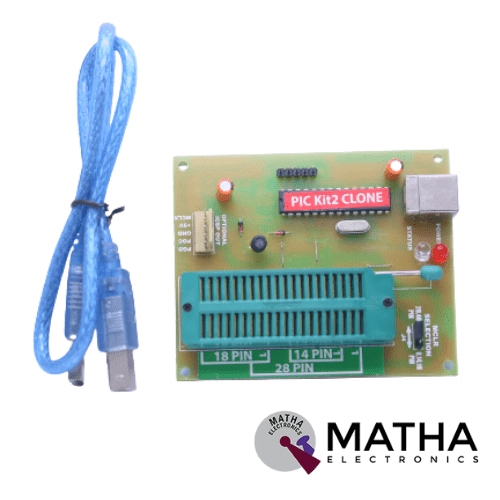

Pic Kit-2 Programmer
Original price was: ₹2,400.00.₹2,200.00Current price is: ₹2,200.00. inc. GST

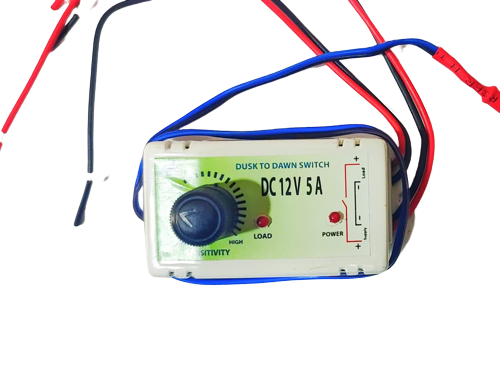

Automatic Day Night Dusk to Dawn Light Sensor Switch LDR Control 12V 5A DC
Original price was: ₹300.00.₹250.00Current price is: ₹250.00. inc. GST
PICKIT-3 Programmer
Original price was: ₹3,500.00.₹3,000.00Current price is: ₹3,000.00. inc. GST
- Full-speed USB support using Windows standard drivers
- Real-time execution
- Processors run at maximum speeds
- Built-in over-voltage/short circuit monitor
- Low voltage to 5V (1.8 to the 5V range)
- Read/write program and data memory of the microcontroller
- Diagnostic LEDs (power, active, status)
- Read/write program and data memory of the microcontroller
- 1Erase of all memory types (EEPROM, ID, configuration, and program) with verification
- Peripheral freeze at the breakpoint.
- Program up to 512K byte flash.
Description
Microchip’s PICkitTM 3 In-Circuit Debugger/Programmer provides a low-cost hardware debugger and programmer by incorporating in-circuit debugging logic into each chip with Flash memory. The following advantages are provided by in-circuit debugging:
- Low price
- Debugging requires the least amount of additional hardware
- There is no need for expensive sockets or adapters.
The MPLAB PICkit 3 enables debugging and programming of PIC® and dsPIC® Flash microcontrollers at a low cost by utilising the MPLAB Integrated Development Environment’s powerful graphical user interface (IDE). The MPLAB PICkit 3 is connected to the design engineer’s PC via a full-speed USB interface and to the target via a Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).
