LDR SENSOR 20mm
470nf 400V DC Polyester Capacitor
- Capacitance:470nf
- Voltage Rating DC: 400 V
- Tolerance: +/-5%
- Mounting: THT
- Leakage Current: 3 uA
- Dimensions:31*6*2.5 mm
- Operating Temperature: -40~85 C
- Lead Pitch: 15mm
- Lead Diameter : 0.5mm
- Non-inductive, epoxy DIP coated, high moisture resistance.
- The dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like an s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance
IR LED Blue 5mm

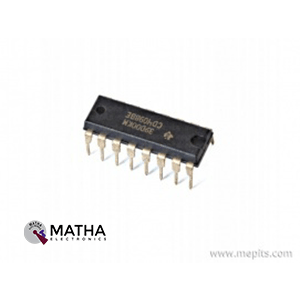

CD4098BE CMOS Dual Monostable Multivibrator IC
- CMOS Dual Monostable Multivibrator
- Output Current:Â 6.8mA
- Propagation Delay: 100ns
- No. of Pins: 16
- Fall Time: 100µs
- Rise Time: 100µs
- Logic IC Family: CD4000
- No. of Gates: 2
- Maximum Power Dissipation: 500 mW
- Operating Temperature Range: -55°C to +125°C
- Supply Voltage Range: 3V to 18V
- Package: PDIP-16
2.2uf 400V DC Polyester Capacitor
- Capacitance: 2.2uf
- Voltage Rating DC: 400 V
- Tolerance: +/-5%
- Mounting: THT
- Leakage Current: 3 uA
- Dimensions:31*6*2.5 mm
- Operating Temperature: -40~85 C
- Lead Spacing: 7mm
- Lead Diameter : 0.5mm
- Non-inductive, epoxy DIP coated, high moisture resistance.
- The dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like an s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance
74LS193 Synchronous 4-Bit Up Down Counter IC
- Synchronous 4-Bit Up/Down Counter
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current: -400µA
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- Maximum clock frequency:Â 25MHz
- Propagation delay time max:Â 47ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-16
10uf 63V DC Electrolytic Capacitor
IRFP460 Power Mosfet Transistor 500V 20A
74LS160N Synchronous Presettable BCD Decade Counter IC
- Synchronous Presettable BCD Decade Counter
- High-level input voltage:Â 2V
- Low-level input voltage:Â 0.8V
- High-level output current:Â -0.4mA
- Low-level output current:Â 8mA
- Input clamp voltage:Â -1.5V
- Maximum clock frequency:Â 25MHz
- Propagation delay time max:Â 28ns
- Supply voltage range:Â 4.75 to 5.25V
- Package:Â DIP-16
